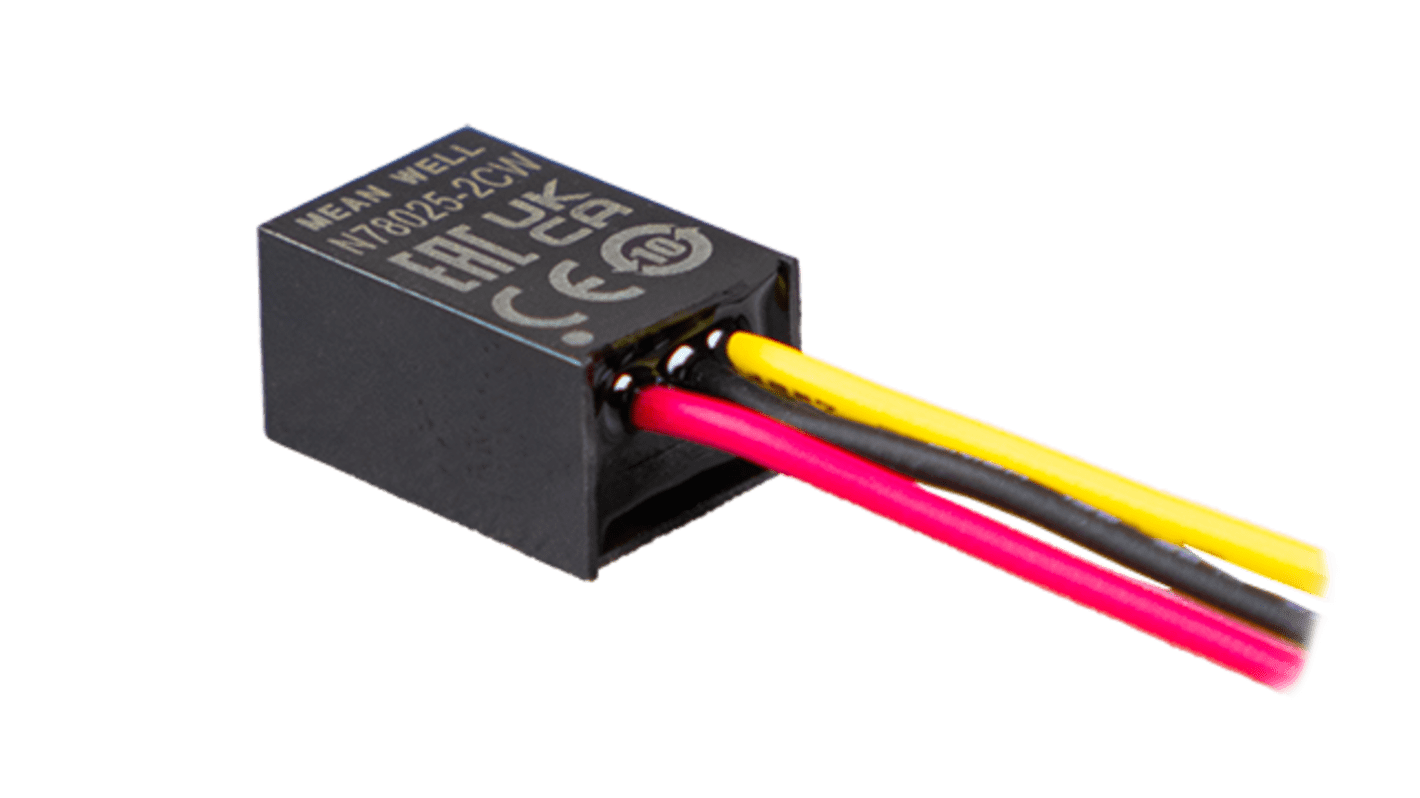

MEAN WELL N78025 DC/DC Converter, 2.5V dc/ 2000 mA, 24V dc Input, 12V, Through Hole, 85 °C Max Temp -40 °C Min Temp

View all DC-DC Converters

Subtotal (1 unit)*

£4.82

(exc. VAT)

£5.78

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 8 unit(s) shipping from 17 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£4.82

*price indicative

RS Stock No.:
590-683
Mfr. Part No.:
N78025-2CW
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage 1

2.5V dc

Product Type

DC/DC Converter

Maximum Input Voltage

24V dc

Minimum Input Voltage

12V

Mount Type

Through Hole

MTBF

1600kH

Ripple and Noise

100mV Pk-Pk

Output Current 1

2000mA

Maximum Output Power

30W

Length

17.5mm

Series

N78025

Width

9mm

Standards/Approvals

EN61000-4-3, EN61000-4-4, EAC TP TC 020/2011, BS EN/EN55032(CISPR32), EN61000-4-6, EN61000-4-5, EN61000-4-2

Weight

5.5g

Efficiency

96%

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW
The MEANWELL Switching Regulators offer the flexibility to select either a positive or negative output voltage depending on the application, deliver high efficiency of up to 96% resulting in low power loss, operate within a wide temperature range from -40°C to +85°C without requiring an additional heat sink, and comply with EN55032 Class B radiated emission standards without the need for external components.

Compact size

Protections include short circuit, overload, and over temperature

Low ripple and noise

3 years warranty
