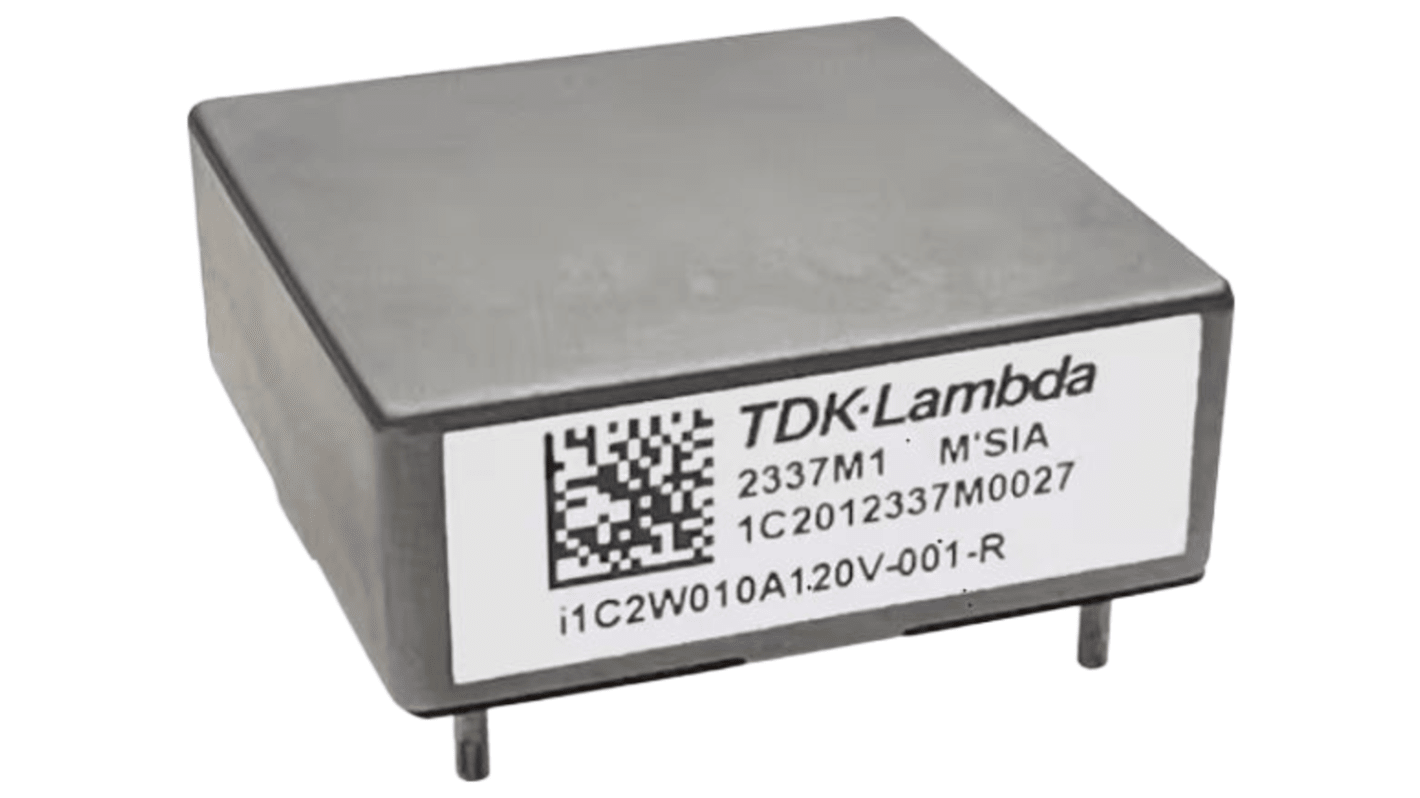

TDK-Lambda i1C DC/DC Converter, 12V dc/ 10 A, 28V dc Input, 9.6V Input 200 W, Through Hole, 120 °C Max Temp -40 °C Min

View all DC-DC Converters

Subtotal (1 unit)*

£44.52

(exc. VAT)

£53.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£44.52

*price indicative

RS Stock No.:
589-967
Mfr. Part No.:
i1C4W010A120V-000-R
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Product Type

DC/DC Converter

Output Voltage 1

12V dc

Maximum Input Voltage

28V dc

Minimum Input Voltage

9.6V

Output Current 1

10A

Mount Type

Through Hole

MTBF

23h

Ripple and Noise

150mV Pk-Pk

Output Voltage Adjustment Range

9.6/28 V dc

Maximum Output Power

200W

Depth

25.42mm

Weight

30g

Standards/Approvals

No

Series

i1C

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

120°C

Efficiency

98%

COO (Country of Origin):
MY
The TDK-Lambda i1C series DC-DC converters are non isolated buck boost DC-DC converters that delivers up to 200W in a compact and familiar industry standard 1 x 1 inch footprint. Operating from either a 9 to 36V or 18to 75V input, it comes with a wide adjustable output of 9.6 to 28V that can support multiple system load voltages, minimizing part number variations. Encased in a 5 sided metal case that supports -40 to 120°C case temperature operation along with its remarkable 98% efficiency, the i1C series provides a higher power migration path in applications where space is at a premium.

High power density

Less board area needed

Improves EMI

Rugged deployment in harsh environment with high shock and vibration exposure

Longer battery life / low power consumed

One part supports multiple system voltages

Can operate from different DC input source voltages
