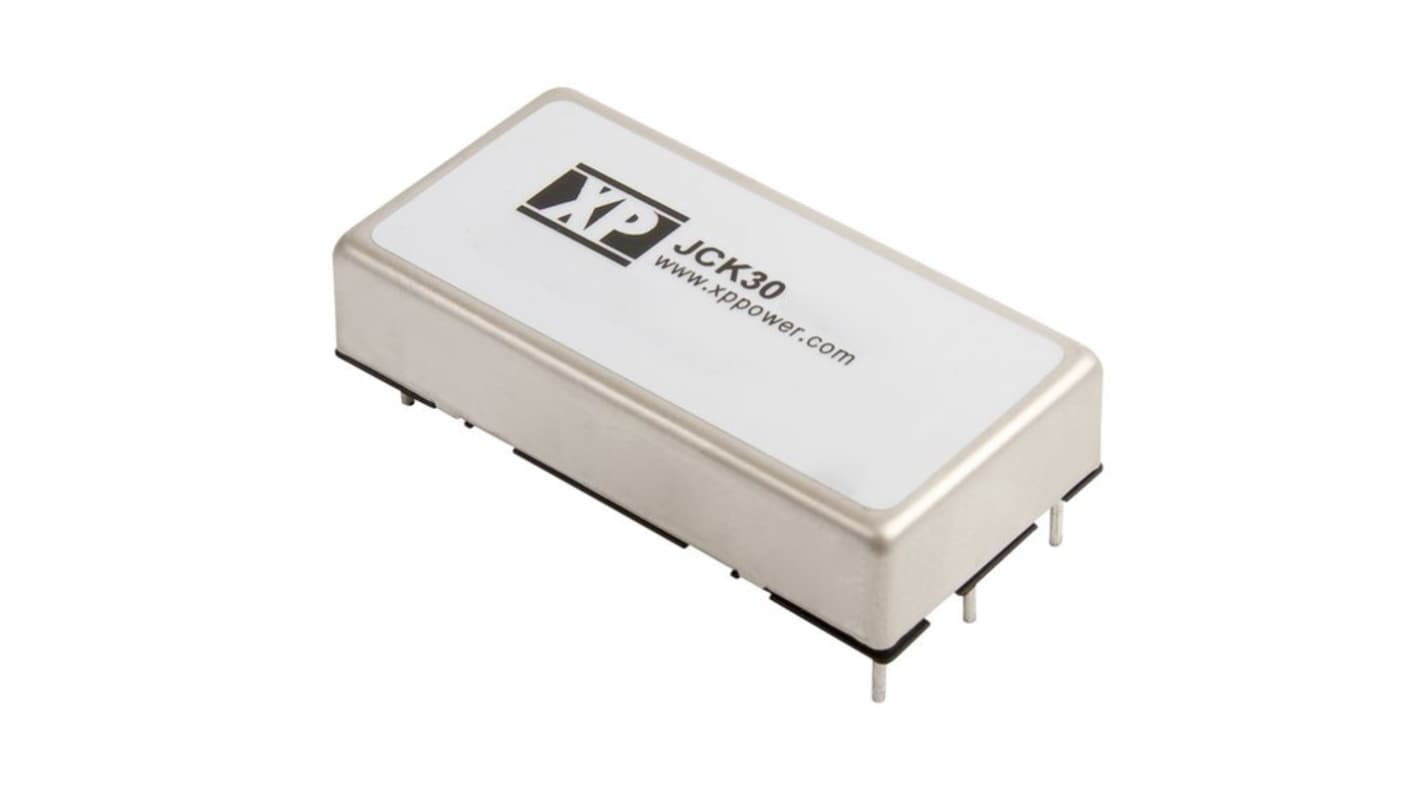

XP Power JCK DC/DC Converter, 5V dc/ 4 A, 12V dc Input, 12V dc Input 30 W, Through Hole, 75 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 516-816
- Mfr. Part No.:
- JCK3012S05
- Brand:
- XP Power
Subtotal (1 unit)*
£40.08
(exc. VAT)
£48.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 77 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £40.08 |
*price indicative
- RS Stock No.:
- 516-816
- Mfr. Part No.:
- JCK3012S05
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Minimum Input Voltage | 12V dc | |
| Maximum Input Voltage | 12V dc | |
| Output Current 1 | 4A | |
| Output Current 2 | 3A | |
| Output Voltage 2 | 15V | |
| Mount Type | Through Hole | |
| Input Ratio | 2:1 | |
| Number of Outputs | 1 | |
| MTBF | 430kH | |
| Output Voltage Adjustment Range | ±10 % | |
| Ripple and Noise | 100mV Pk-Pk | |
| Number of Pins | 6 | |
| Isolation Voltage | 1600V | |
| Maximum Output Power | 30W | |
| Length | 2in | |
| Weight | 31g | |
| Width | 1in | |
| Depth | 10.16mm | |
| Series | JCK | |
| Standards/Approvals | EN61000-4-2, EN61000-4-4, EN55022, EN61000-4-5, EN61000-4-8, EN61000-4-6 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Efficiency | 0.91% | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Minimum Input Voltage 12V dc | ||
Maximum Input Voltage 12V dc | ||
Output Current 1 4A | ||
Output Current 2 3A | ||
Output Voltage 2 15V | ||
Mount Type Through Hole | ||
Input Ratio 2:1 | ||
Number of Outputs 1 | ||
MTBF 430kH | ||
Output Voltage Adjustment Range ±10 % | ||
Ripple and Noise 100mV Pk-Pk | ||
Number of Pins 6 | ||
Isolation Voltage 1600V | ||
Maximum Output Power 30W | ||
Length 2in | ||
Weight 31g | ||
Width 1in | ||
Depth 10.16mm | ||
Series JCK | ||
Standards/Approvals EN61000-4-2, EN61000-4-4, EN55022, EN61000-4-5, EN61000-4-8, EN61000-4-6 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Efficiency 0.91% | ||
The XP Power DC-DC converter is designed for reliable power conversion with a 2:1 input range, making it suitable for various applications. It operates efficiently within a temperature range of -40°C to +75°C, ensuring stable performance in demanding environments.
Single and dual outputs
1600 VDC Isolation
