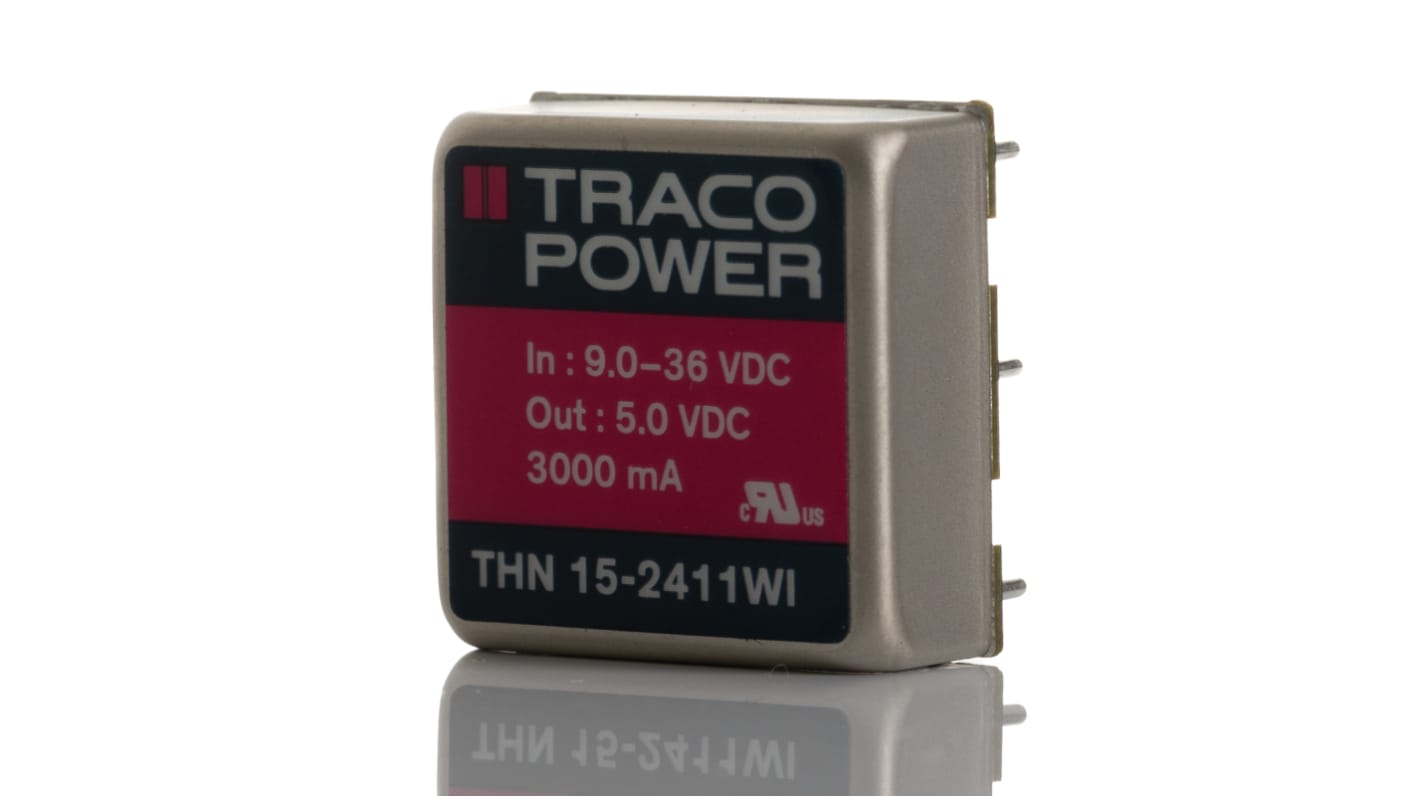

TRACOPOWER THN 15WI DC-DC Converter, 5V dc/ 3A Output, 9 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 438-424
- Mfr. Part No.:
- THN 15-2411WI
- Brand:
- TRACOPOWER
79 In stock - FREE next working day delivery available
17 available from Europe for delivery within 1 working day(s).
Added
Price Each
£34.82
(exc. VAT)
£41.78
(inc. VAT)
Units | Per unit |
1 - 4 | £34.82 |
5 - 9 | £33.78 |
10 - 24 | £32.73 |
25 - 49 | £31.34 |
50 + | £29.95 |
- RS Stock No.:
- 438-424
- Mfr. Part No.:
- THN 15-2411WI
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco Power DC-DC Converter, Isolated, 1.5kV DC Isolation Voltage - THN 15WI Series - THN 15-2411WI
Step down voltages between 9 and 36V DC to a precisely regulated 5V DC / 3A output with this DC-DC converter from Traco Power. Measuring just 25.4 (L) x 25.4 (W) x 9.9mm (D), it'll take up minimal space on your PCB. That small package contains advanced circuitry that delivers an impressive 86% efficiency. Through-hole mounting forms a robust connection with your board, making this an excellent option for applications that are subjected to high levels of environmental stress. Its operating temperature range between -40°C and +85°C makes it suitable for harsh industrial environments.
Features & Benefits
• Shielded to prevent interference and keep the output voltage clean
• Encapsulated package protects the circuit from moisture and dust
• Remote on/off control offers ease of use
• Trimmable output gives you a precise voltage
• Encapsulated package protects the circuit from moisture and dust
• Remote on/off control offers ease of use
• Trimmable output gives you a precise voltage
Applications
• Military hardware
• Aerospace technology
• Communications
• Aerospace technology
• Communications
What's trimmable output?
If a converter's output is trimmable, it means you can adjust it by a small amount. This can be useful in situations where a slight change in voltage can help a piece of equipment perform better or when a non-standard voltage is needed.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 9 → 36 V dc |
Power Rating | 15W |
Input Voltage Nominal | 24 V dc |
Output Current | 3A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Output Voltage Adjustment Range | 4.5 → 5.5V dc |
Package | Encapsulated |
Isolation Voltage | 1.6kV dc |
Width | 25.4mm |
Length | 25.4mm |
Depth | 9.9mm |
Series | THN 15WI |
Maximum Temperature | +85°C |
Efficiency | 86% |
Minimum Temperature | -40°C |
Standards Met | CE |
- RS Stock No.:
- 438-424
- Mfr. Part No.:
- THN 15-2411WI
- Brand:
- TRACOPOWER
