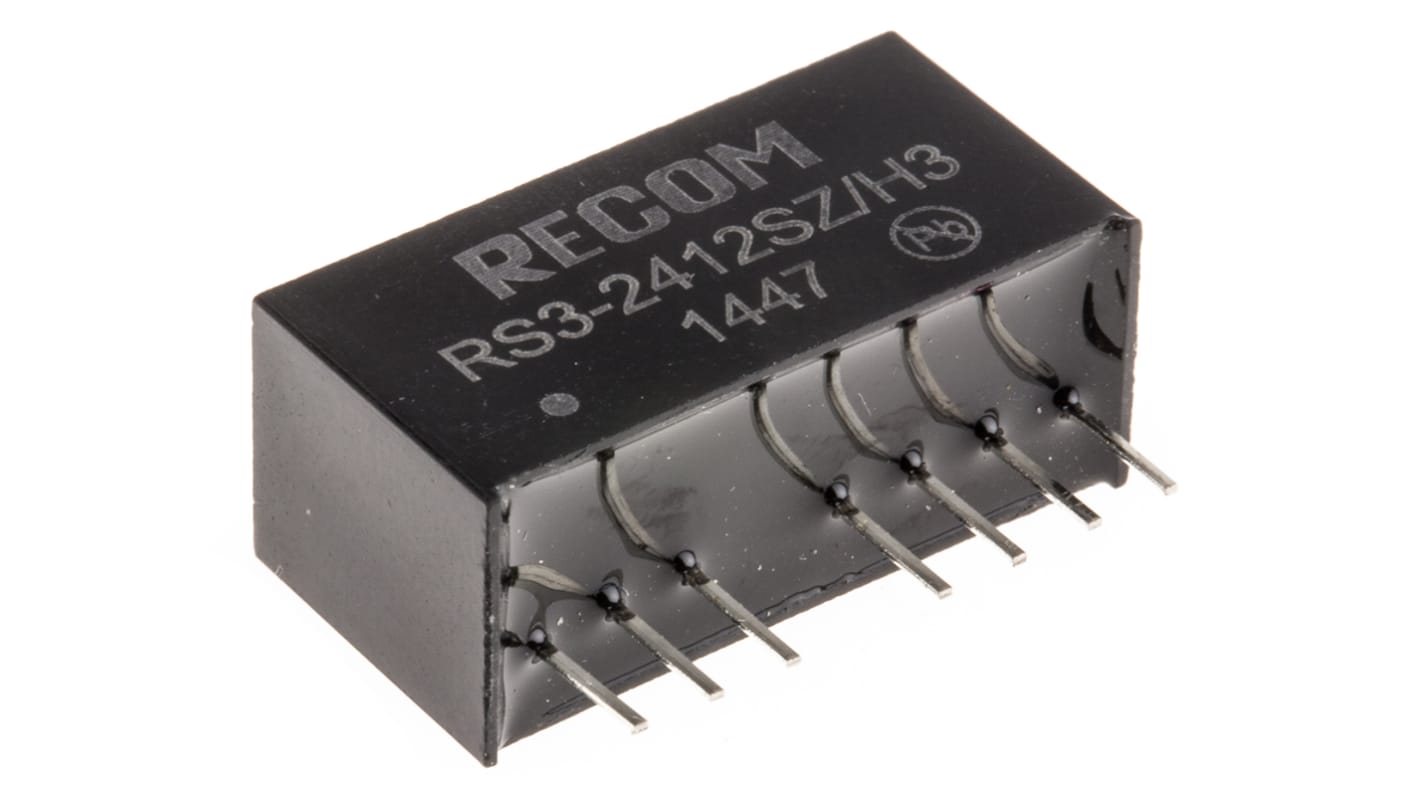

Recom RS3 DC/DC Converter, 12V dc/ 250 mA, 27V dc Input, 9V Input 3 W, Through Hole, 71 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 417-304
- Mfr. Part No.:
- RS3-2412SZ/H3
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£24.13
(exc. VAT)
£28.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 7 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.13 |
| 5 - 9 | £23.41 |
| 10 - 24 | £22.68 |
| 25 - 49 | £21.96 |
| 50 + | £21.23 |
*price indicative
- RS Stock No.:
- 417-304
- Mfr. Part No.:
- RS3-2412SZ/H3
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 27V dc | |
| Output Current 1 | 250mA | |
| Mount Type | Through Hole | |
| Input Ratio | 3:1 | |
| Number of Outputs | 1 | |
| MTBF | 3303000h | |
| Number of Pins | 8 | |
| Isolation Voltage | 3kV dc | |
| Package Type | SIP | |
| Maximum Output Power | 3W | |
| Standards/Approvals | No | |
| Series | RS3 | |
| Width | 9.2mm | |
| Length | 21.8mm | |
| Depth | 11.1mm | |
| Efficiency | 83% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 71°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 27V dc | ||
Output Current 1 250mA | ||
Mount Type Through Hole | ||
Input Ratio 3:1 | ||
Number of Outputs 1 | ||
MTBF 3303000h | ||
Number of Pins 8 | ||
Isolation Voltage 3kV dc | ||
Package Type SIP | ||
Maximum Output Power 3W | ||
Standards/Approvals No | ||
Series RS3 | ||
Width 9.2mm | ||
Length 21.8mm | ||
Depth 11.1mm | ||
Efficiency 83% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 71°C | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 9 to 27V DC Input Voltage Range, 12V DC Output Voltage - RS3 Series - RS3-2412SZ/H3
Need a power converter that stands up to sudden voltage spikes? Turn to this RECOM DC-DC converter. As it has an isolation voltage of 3kV DC, it's protected against electrical damage. By adjusting input voltages between 9 and 27V DC to an output voltage of 12V DC, it lines up your power supply with your system's needs for smooth operation. Installing the device on a PCB is a piece of cake, thanks to its through-hole mounting style.
Features & Benefits
• Line regulation of ±0.5% helps keep output power steady
• Ripple and noise of just 50mVp-p for crisp and clear signals
• Performs reliably at temperatures between -40°C and +71°C, making it a safe choice for harsh environments
• Compact dimensions of 21.8 (L) x 9.2 (W) x 11.1mm (H) to maximise space on your PCB
• Light weight of 4.7g means it puts minimal strain on your board
Applications
• Measuring instruments
• Telecommunications networks
• Logistics industry
Can I operate this DC-DC converter remotely?
Yes, this converter comes with remote on/off control for added convenience.
