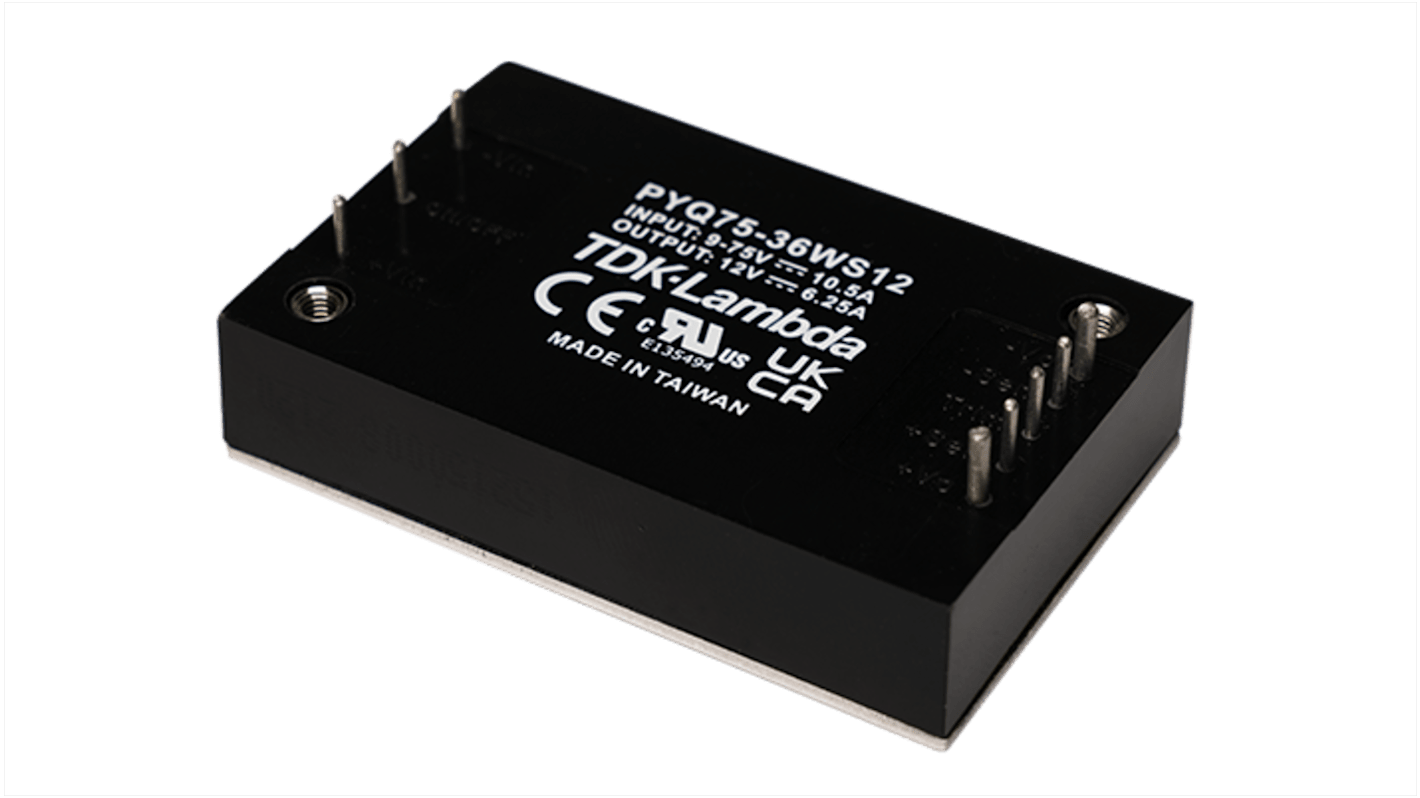

TDK-Lambda PYQ75 DC/DC Converter, 12V dc/ 6.25 A, 36V dc Input, 36V dc Input 75 W, PCB, 100 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 242-735
- Mfr. Part No.:
- PYQ75-36WS12
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£116.85
(exc. VAT)
£140.22
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £116.85 |
*price indicative
- RS Stock No.:
- 242-735
- Mfr. Part No.:
- PYQ75-36WS12
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V dc | |
| Minimum Input Voltage | 36V dc | |
| Maximum Input Voltage | 36V dc | |
| Output Current 1 | 6.25A | |
| Mount Type | PCB | |
| MTBF | 780000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 480mV Pk-Pk | |
| Output Voltage Adjustment Range | -20 to 15 % | |
| Isolation Voltage | 3000V ac | |
| Number of Pins | 8 | |
| Maximum Output Power | 75W | |
| Package Type | Quarter Brick | |
| Depth | 12.7mm | |
| Series | PYQ75 | |
| Weight | 66g | |
| Length | 57.9mm | |
| Standards/Approvals | No | |
| Width | 36.8mm | |
| Maximum Operating Temperature | 100°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 90% | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V dc | ||
Minimum Input Voltage 36V dc | ||
Maximum Input Voltage 36V dc | ||
Output Current 1 6.25A | ||
Mount Type PCB | ||
MTBF 780000h | ||
Number of Outputs 1 | ||
Ripple and Noise 480mV Pk-Pk | ||
Output Voltage Adjustment Range -20 to 15 % | ||
Isolation Voltage 3000V ac | ||
Number of Pins 8 | ||
Maximum Output Power 75W | ||
Package Type Quarter Brick | ||
Depth 12.7mm | ||
Series PYQ75 | ||
Weight 66g | ||
Length 57.9mm | ||
Standards/Approvals No | ||
Width 36.8mm | ||
Maximum Operating Temperature 100°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 90% | ||
- COO (Country of Origin):
- TW
The TDK Lambda DC To DC Converters feature sense lines for stable output voltage, even under changing loads. With up to 90% efficiency and an operating temperature range of 40 to 105°C, these converters provide reliable performance in harsh conditions. They offer 3,000Vac input to output isolation and are potted for enhanced resistance to shock and vibration. Certified to IEC 62368 1 safety standards, it series is also tested according to the EN 50155 railroad standard for electronic equipment used in railroad vehicles, ensuring rugged reliability for critical applications.
Certified to IEC 62368 1 and tested according to EN 50155
Potted plastic case
3000Vac input to output isolation
