Recom REM2A DC/DC Converter, 24V dc/ 83 mA, 18V dc Input, 12V dc Input 2 W, Through Hole, 105 °C Max Temp -40 °C Min

View all DC-DC Converters

Subtotal (1 tube of 10 units)*

£204.31

(exc. VAT)

£245.17

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£204.31£20.431

*price indicative

RS Stock No.:
217-619
Mfr. Part No.:
REM2A-1224S
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

24V dc

Maximum Input Voltage

18V dc

Minimum Input Voltage

12V dc

Output Current 1

83mA

Mount Type

Through Hole

Input Ratio

2:1

Isolation Voltage

250kV ac

Maximum Output Power

2W

Depth

10.2mm

Standards/Approvals

No

Length

24.3mm

Series

REM2A

Efficiency

81%

Maximum Operating Temperature

105°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

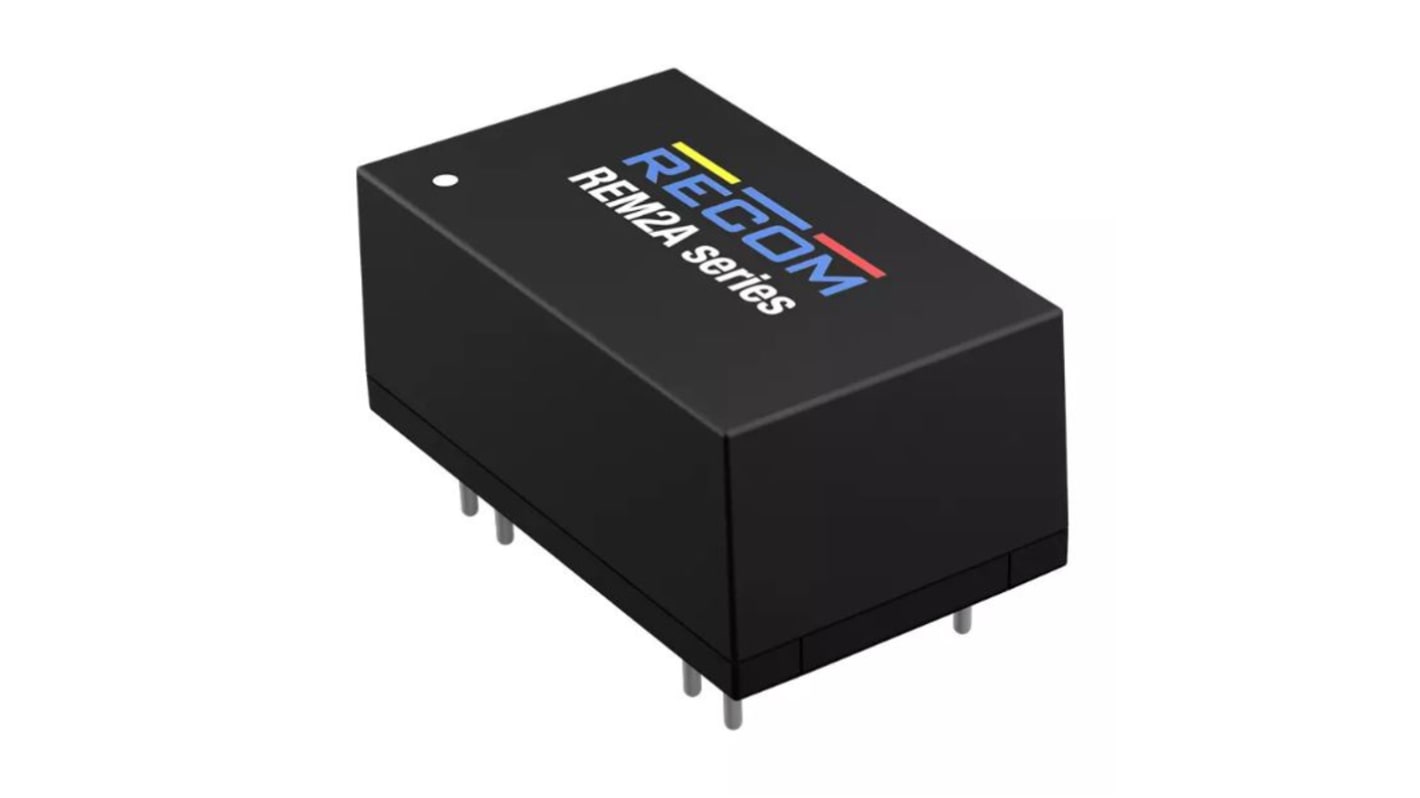

The Recom DC to DC Converter is a REM2A series medical grade regulated DC to DC converter. It features a reinforced 250VAC continuous working isolation with greater than equals to 8mm creepage or clearance. Its compact DIP16 package offers industry standard pinouts with tightly regulated single or dual outputs and UVLO, SCP, and OVP. The operating ambient temperature range is from -40°C to +90°C without derating.

RoHS and Reach compliant

3 year warranty

2MOPP and 250VAC working voltage isolation

IEC/EN/UL 60601 and 62368-1 certified

Compact 24.3x14.4 mm footprint
