Recom RACM90-K DC/DC Converter, 48V dc/ 1.87 A, 264V dc Input, 240V dc Input 90 W, Chassis, 90 °C Max Temp -40 °C Min
- RS Stock No.:
- 217-459
- Mfr. Part No.:
- RACM90-48SK/ENC
- Brand:
- Recom
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 217-459
- Mfr. Part No.:
- RACM90-48SK/ENC
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 48V dc | |
| Minimum Input Voltage | 240V dc | |
| Maximum Input Voltage | 264V dc | |
| Output Current 1 | 1.87A | |
| Mount Type | Chassis | |
| MTBF | 668000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 1% | |
| Isolation Voltage | 4kV ac | |
| Maximum Output Power | 90W | |
| Length | 118.3mm | |
| Weight | 265g | |
| Series | RACM90-K | |
| Depth | 38.7mm | |
| Standards/Approvals | CSA/CAN-C22.2 No. 60601-1:14, IEC/EN61558-2-16, EN55035, EN-60335-1, IEC/EN60601-1, ErP, IEC62368-1, REACH, ANSI/AAMI ES60601-1, EN55032, RoHS, IEC/EN60335-1, IEC/EN61558-1 | |
| Maximum Operating Temperature | 90°C | |
| Efficiency | 90% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 48V dc | ||
Minimum Input Voltage 240V dc | ||
Maximum Input Voltage 264V dc | ||
Output Current 1 1.87A | ||
Mount Type Chassis | ||
MTBF 668000h | ||
Number of Outputs 1 | ||
Ripple and Noise 1% | ||
Isolation Voltage 4kV ac | ||
Maximum Output Power 90W | ||
Length 118.3mm | ||
Weight 265g | ||
Series RACM90-K | ||
Depth 38.7mm | ||
Standards/Approvals CSA/CAN-C22.2 No. 60601-1:14, IEC/EN61558-2-16, EN55035, EN-60335-1, IEC/EN60601-1, ErP, IEC62368-1, REACH, ANSI/AAMI ES60601-1, EN55032, RoHS, IEC/EN60335-1, IEC/EN61558-1 | ||
Maximum Operating Temperature 90°C | ||
Efficiency 90% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN

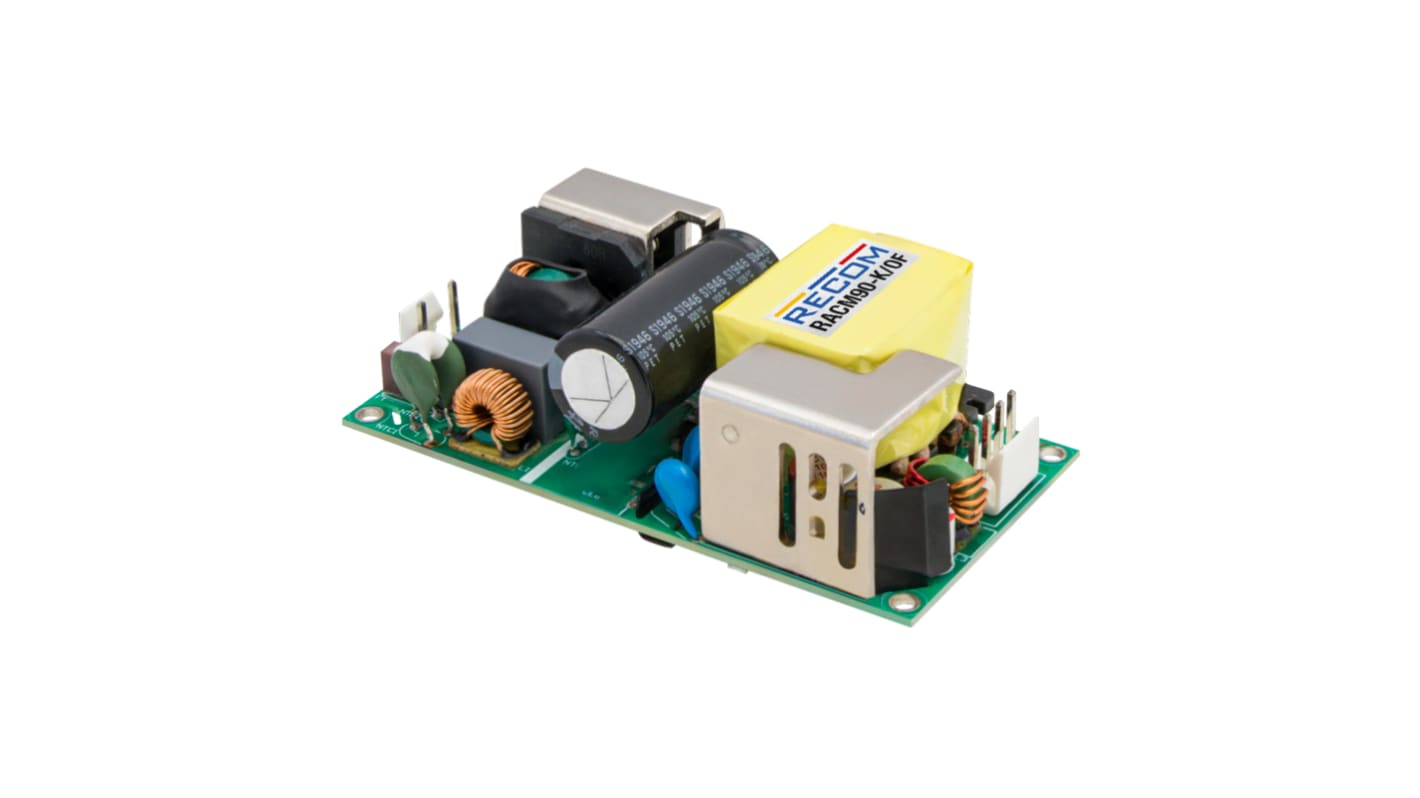

The Recom AC/DC power supply series provides 90W output and is Limited Power Source rated according to safety standards for medical, ITE, industrial and household markets. With an industry standard 2 inch x4 inch footprint, variants are available as an open card or with an enclosure. The output is tightly regulated and easy system integration is enabled by a wide compliance margin to EMC standard EN55032 class B.
Wide range input of 85 to 264VAC
OVC III and LPS rated
2MOPP medical certified with B and BF compliant
4000m operating altitude
Class B EMC filter built in
