MEAN WELL SD-200 DC/DC Converter, 5V dc/, 18V dc Input 0 A, 9.2V Input, Chassis Mount, 60 °C Max Temp -10 °C Min Temp
- RS Stock No.:
- 183-837
- Distrelec Article No.:
- 169-06-002
- Mfr. Part No.:
- SD-25A-5
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£24.61
(exc. VAT)
£29.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 66 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £24.61 |
*price indicative
- RS Stock No.:
- 183-837
- Distrelec Article No.:
- 169-06-002
- Mfr. Part No.:
- SD-25A-5
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Minimum Input Voltage | 9.2V | |
| Maximum Input Voltage | 18V dc | |
| Output Current 1 | 0A | |
| Output Current 2 | 5A | |
| Mount Type | Chassis Mount | |
| MTBF | 374300h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Voltage Adjustment Range | 5.5 V | |
| Isolation Voltage | 1.5kV ac | |
| Input Ratio | 2:1 | |
| Maximum Output Power | 25W | |
| Depth | 36mm | |
| Weight | 0.38kg | |
| Length | 99mm | |
| Series | SD-200 | |
| Standards/Approvals | EN | |
| Width | 97mm | |
| Maximum Operating Temperature | 60°C | |
| Efficiency | 71% | |
| Minimum Operating Temperature | -10°C | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Minimum Input Voltage 9.2V | ||
Maximum Input Voltage 18V dc | ||
Output Current 1 0A | ||
Output Current 2 5A | ||
Mount Type Chassis Mount | ||
MTBF 374300h | ||
Number of Outputs 1 | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Voltage Adjustment Range 5.5 V | ||
Isolation Voltage 1.5kV ac | ||
Input Ratio 2:1 | ||
Maximum Output Power 25W | ||
Depth 36mm | ||
Weight 0.38kg | ||
Length 99mm | ||
Series SD-200 | ||
Standards/Approvals EN | ||
Width 97mm | ||
Maximum Operating Temperature 60°C | ||
Efficiency 71% | ||
Minimum Operating Temperature -10°C | ||

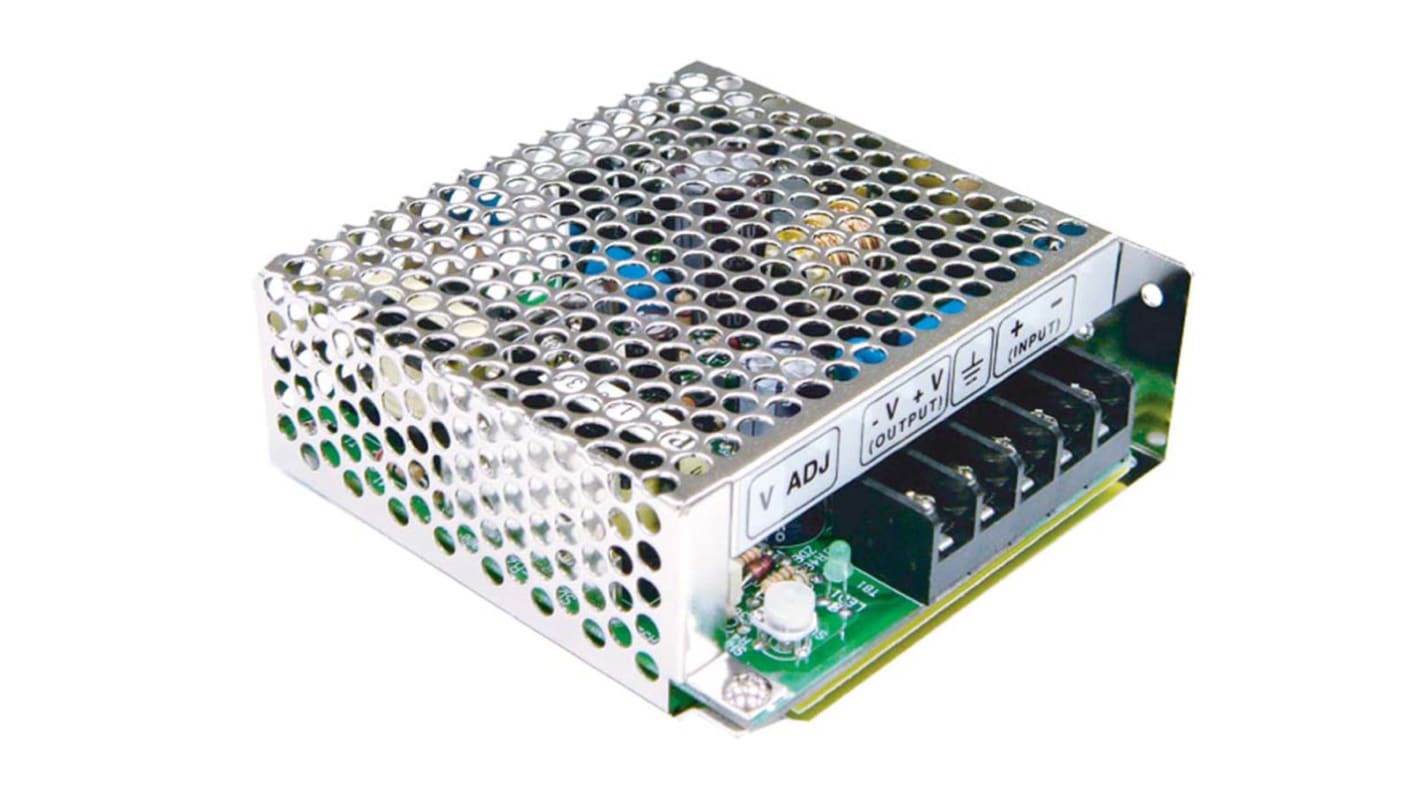

SD-25 Series Single Output Enclosed Regulated Isolated DC-DC Converter
High reliability
Wide 2:1 input voltage range
Regulated outputs
Easy installation - screw terminals
Adjustable output voltage
EMC meets EN 55022 Class B
LED power-on indicator
Short circuit, overload and overvoltage protection
1.5kV input / output isolation
Note
De-rating below 0 and above 40°C.
MTBF to MIL-HDBK-217F (25°C).
