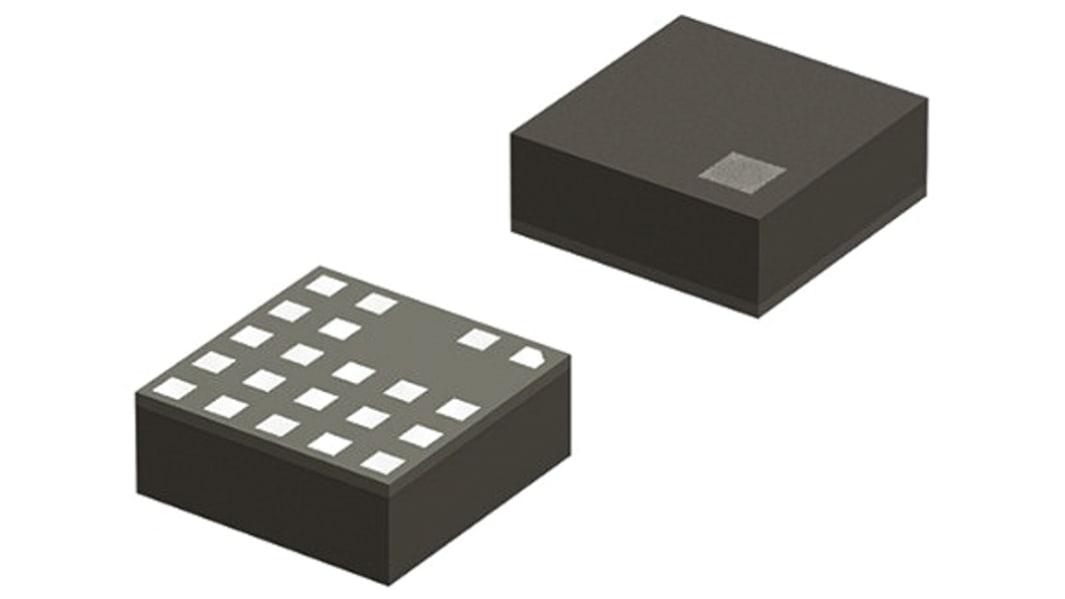

Analog Devices LTM8020MPV#PBF, 1-Channel DC/DC Switching Regulator, Adjustable, 5V, 1.25 V 21-Pin, LGA
- RS Stock No.:
- 822-5816
- Mfr. Part No.:
- LTM8020MPV#PBF
- Brand:
- Analog Devices
Get a bulk buy discount
Add 3 more to save £1.41
View bulk pricing optionsSubtotal (1 unit)*
£17.38
(exc. VAT)
£20.86
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 32 unit(s), ready to ship
Units | Per unit | Saving |
|---|---|---|
| 1 - 2 | £17.38 | - |
| 3 - 12 | £16.91 | £1.41 |
| 13 - 64 | £16.49 | £11.57 |
| 65 + | £16.22 | £75.40 |
*price indicative
- RS Stock No.:
- 822-5816
- Mfr. Part No.:
- LTM8020MPV#PBF
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Product Type | DC/DC Switching Regulator | |
| Maximum Output Voltage | 5V | |
| Minimum Input Voltage | 4V | |
| Maximum Input Voltage | 36V | |
| Maximum Output Current | 200mA | |
| Number of Outputs | 1 | |
| Topology | Step Down | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 450kHz | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -55°C | |
| Package Type | LGA | |
| Pin Count | 21 | |
| Maximum Operating Temperature | 125°C | |
| Height | 2.42mm | |
| Width | 6.25mm | |
| Standards/Approvals | No | |
| Length | 6.25mm | |
| Series | LTM8020 | |
| Automotive Standard | No | |
| Minimum Output Voltage | 1.25V | |
| Select all | ||
|---|---|---|
Brand Analog Devices | ||
Product Type DC/DC Switching Regulator | ||
Maximum Output Voltage 5V | ||
Minimum Input Voltage 4V | ||
Maximum Input Voltage 36V | ||
Maximum Output Current 200mA | ||
Number of Outputs 1 | ||
Topology Step Down | ||
Output Type Adjustable | ||
Maximum Switching Frequency 450kHz | ||
Mount Type Surface | ||
Minimum Operating Temperature -55°C | ||
Package Type LGA | ||
Pin Count 21 | ||
Maximum Operating Temperature 125°C | ||
Height 2.42mm | ||
Width 6.25mm | ||
Standards/Approvals No | ||
Length 6.25mm | ||
Series LTM8020 | ||
Automotive Standard No | ||
Minimum Output Voltage 1.25V | ||
Switching Regulators, Ultralow Noise Regulators, Linear Technology
Linear Technology switching regulators incorporate synchronous and non-synchronous internal switches. This range offers ultralow noise switching voltage regulators and is suitable in sensitive RF or audio circuit environments. They have a selection of input voltages and switching frequencies with good efficiency. Typical applications include Industrial supplies, wall transformer regulation, automotive battery regulation and distributed supply regulation.
Switching Voltage Regulators, Linear Technology
Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
