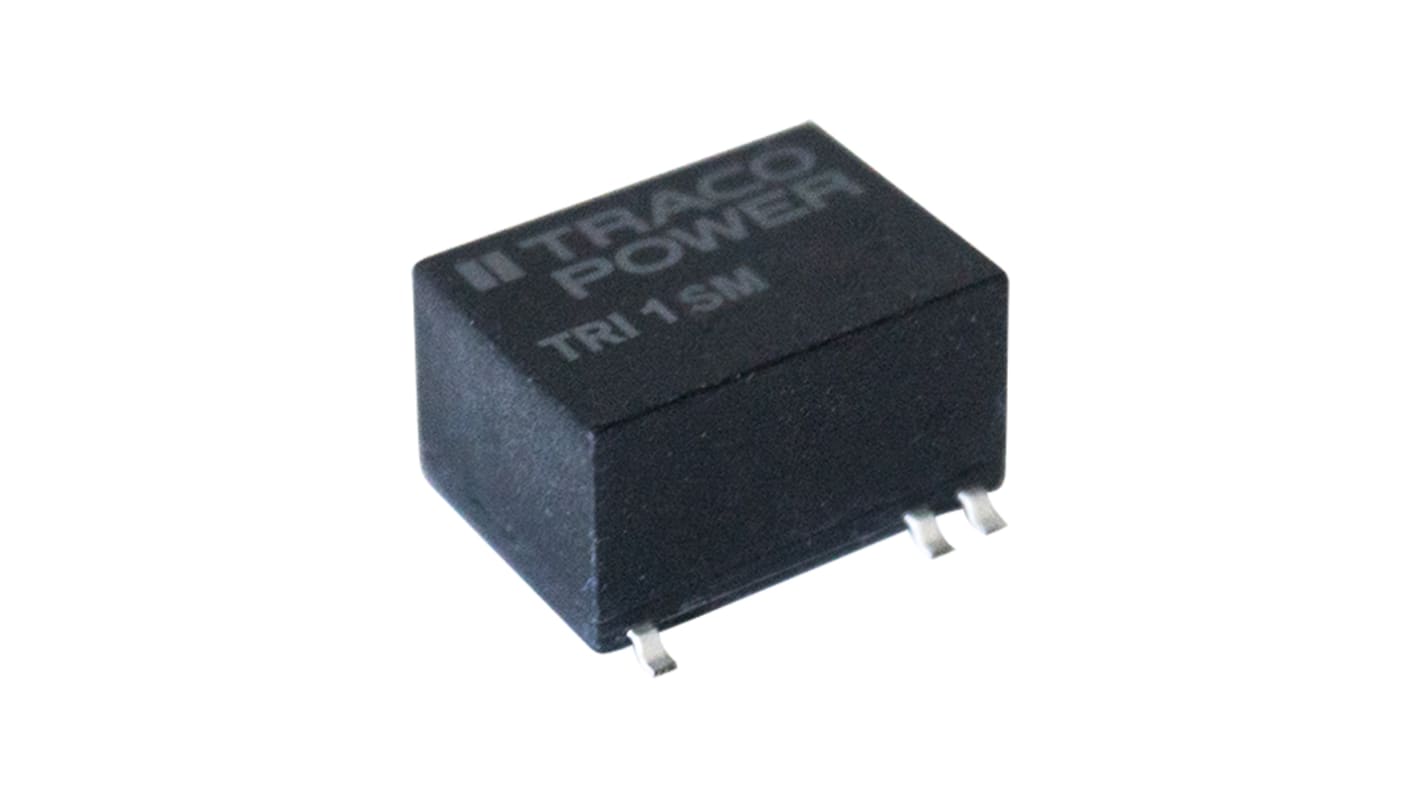

TRACOPOWER TRI 1-2422SM, 2-Channel DC/DC Converter, Dual D Type, 12 V DC, 12V dc, -12 V dc, 42 mA 6-Pin, Surface Mount
- RS Stock No.:
- 284-7752
- Distrelec Article No.:
- 303-87-183
- Mfr. Part No.:
- TRI 1-2422SM
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£110.85
(exc. VAT)
£133.02
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £110.85 | £11.085 |
| 5 + | £105.83 | £10.583 |
*price indicative
- RS Stock No.:
- 284-7752
- Distrelec Article No.:
- 303-87-183
- Mfr. Part No.:
- TRI 1-2422SM
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Maximum Output Voltage | 12V dc | |
| Minimum Input Voltage | 21.6V | |
| Maximum Input Voltage | 26.4V dc | |
| Minimum Output Current | 42mA | |
| Maximum Output Current | 42mA | |
| Topology | DC-DC | |
| Output Type | Dual D Type, 12 V DC | |
| Maximum Switching Frequency | 100kHz | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -40°C | |
| Package Type | Surface Mount | |
| Pin Count | 6 | |
| Maximum Operating Temperature | 85°C | |
| Height | 10.5mm | |
| Length | 18.9mm | |
| Series | TRI | |
| Standards/Approvals | UL 62368-1, IEC 62368-1, EN 62368-1 | |
| Automotive Standard | No | |
| Minimum Output Voltage | -12V dc | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Maximum Output Voltage 12V dc | ||
Minimum Input Voltage 21.6V | ||
Maximum Input Voltage 26.4V dc | ||
Minimum Output Current 42mA | ||
Maximum Output Current 42mA | ||
Topology DC-DC | ||
Output Type Dual D Type, 12 V DC | ||
Maximum Switching Frequency 100kHz | ||
Mount Type Surface | ||
Minimum Operating Temperature -40°C | ||
Package Type Surface Mount | ||
Pin Count 6 | ||
Maximum Operating Temperature 85°C | ||
Height 10.5mm | ||
Length 18.9mm | ||
Series TRI | ||
Standards/Approvals UL 62368-1, IEC 62368-1, EN 62368-1 | ||
Automotive Standard No | ||
Minimum Output Voltage -12V dc | ||
The TRACOPOWER high isolation, regulated DC/DC converter series which comes in a compact SMD-14 package. The core characteristic of the TRI 1SM series is a sophisticated reinforced isolation system which is able to withstand high test voltages and working voltages. Efficiencies up to 84% allow safe operation from –40°C to +85°C without derating. All models have a ±10% input voltage range and precisely regulated, isolated output voltages. With the latest IT safety certifications the TRI 1SM series is the perfect choice for many demanding low power applications in the industrial, transportation and instrumentation sectors.
Ultra-high isolation peak voltage
High efficiency
Protection against overvoltage and short circuit
