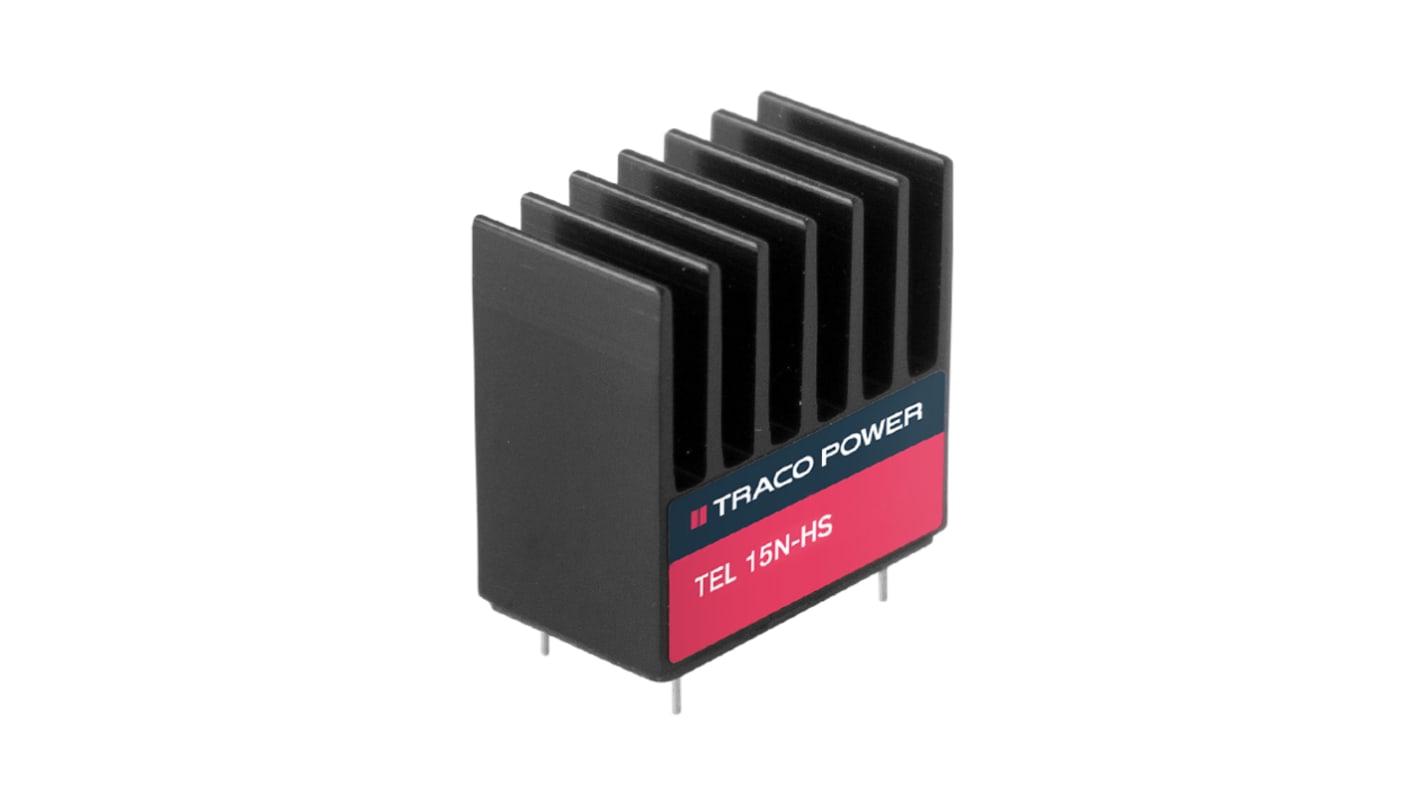

TRACOPOWER TEL 15-4812N-HS, 2-Channel DC/DC Converter, Single Output, 12 V, 1.25 A 5-Pin, DIP-16
- RS Stock No.:
- 284-7495
- Distrelec Article No.:
- 303-65-858
- Mfr. Part No.:
- TEL 15-4812N-HS
- Brand:
- TRACOPOWER
Subtotal (1 tube of 10 units)*
£226.16
(exc. VAT)
£271.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £226.16 | £22.616 |
*price indicative
- RS Stock No.:
- 284-7495
- Distrelec Article No.:
- 303-65-858
- Mfr. Part No.:
- TEL 15-4812N-HS
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Maximum Output Voltage | 12V | |
| Minimum Input Voltage | 36V | |
| Maximum Input Voltage | 75V | |
| Minimum Output Current | 1.25A | |
| Maximum Output Current | 1250mA | |
| Topology | DC-DC | |
| Number of Outputs | 2 | |
| Output Type | Single Output | |
| Maximum Switching Frequency | 540kHz | |
| Mount Type | Through Hole | |
| Minimum Operating Temperature | -40°C | |
| Package Type | DIP-16 | |
| Pin Count | 5 | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN 62368-1, IEC 62368-1, UL 62368-1 | |
| Height | 24.4mm | |
| Series | TEL | |
| Length | 24.4mm | |
| Width | 14.3 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Maximum Output Voltage 12V | ||
Minimum Input Voltage 36V | ||
Maximum Input Voltage 75V | ||
Minimum Output Current 1.25A | ||
Maximum Output Current 1250mA | ||
Topology DC-DC | ||
Number of Outputs 2 | ||
Output Type Single Output | ||
Maximum Switching Frequency 540kHz | ||
Mount Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
Package Type DIP-16 | ||
Pin Count 5 | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN 62368-1, IEC 62368-1, UL 62368-1 | ||
Height 24.4mm | ||
Series TEL | ||
Length 24.4mm | ||
Width 14.3 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The TRACOPOWER series of isolated 15 Watt converters which come in an ultra compact DIP-16 metal package. The design purpose of this series was to miniaturized low power DC or DC converters to the maximum without sacrificing high efficiency. It solidifies the new standard for power density with 4.51 W/cm3 and effectively doubles the power density compared to 15 Watt converters in DIP-24 packages. It offers a wide 2:1 input voltage range and features a high efficiency of up to 87% which enables an operation temperature of up to +55°C at full load and up to 85°C with 50% load. The converters also have an internal input filter to comply with conducted emission standard EN 55032 class A. It's an economical solution for space critical and cost sensitive applications in instrumentation, IT and industrial electronics.
Ultra compact 15 Watt converter in DIP16 metal casing
Highest power density
High efficiency
Protection against short circuit
