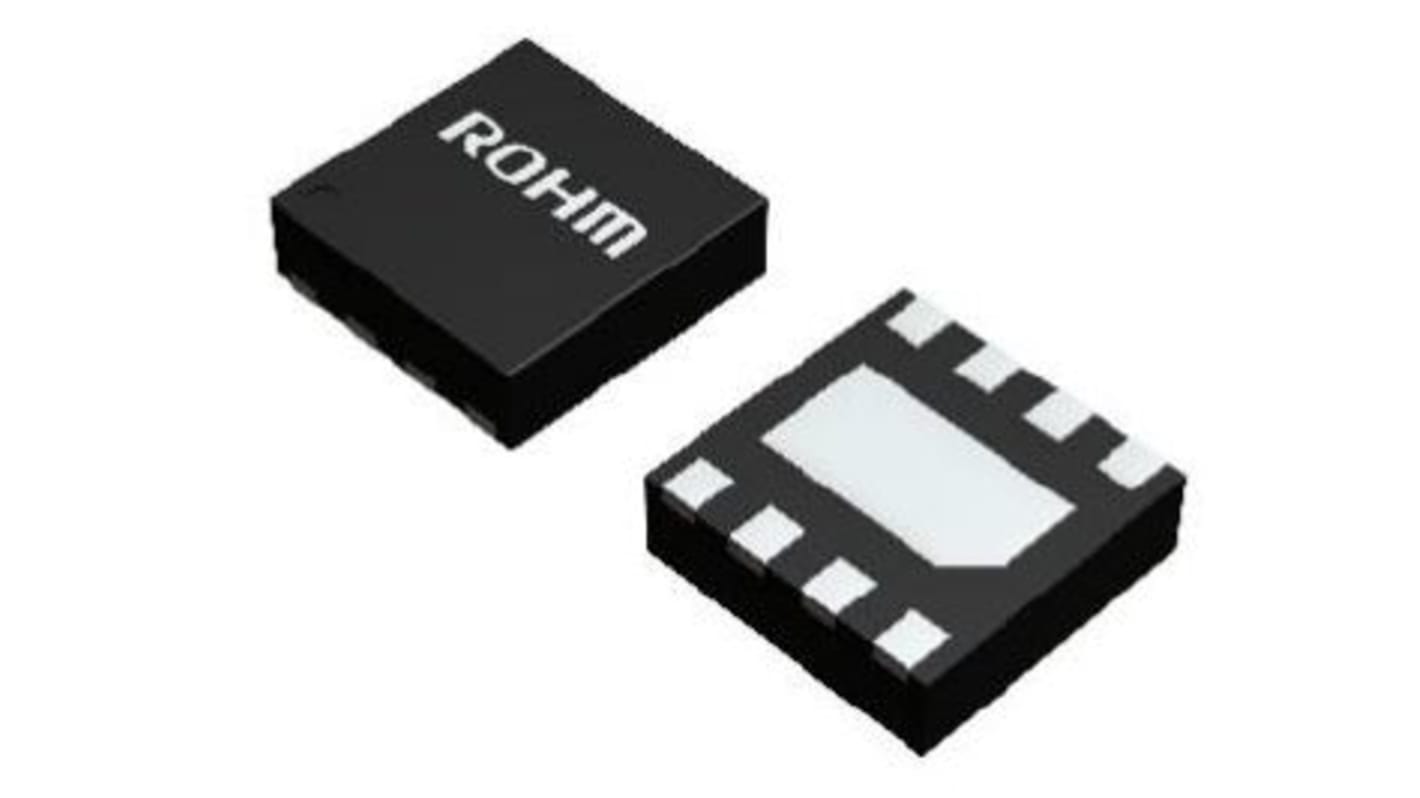

ROHM BD9SD11NUX-CE2, Synchronous Buck DC-DC Converter, 600mA

View all DC-DC Converters ICs

Subtotal 5 units (supplied on a continuous strip)*

£4.88

(exc. VAT)

£5.855

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
5 +£0.976

*price indicative

Packaging Options:
RS Stock No.:
255-7699P
Mfr. Part No.:
BD9SD11NUX-CE2
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Minimum Input Voltage

2.7 V

Maximum Input Voltage

5.5 V

Minimum Output Current

600mA

Converter Type

Synchronous Buck

The ROHM 2.7 V to 5.5 V input, 600 mA single synchronous buck DC/DC converter for automotive is built-in low on resistance power MOSFETs. It is capable of providing current up to 600 mA. Small inductor is applicable due to high switching frequency of 2.2 MHz. It is a current mode control DC/DC converter and features high-speed transient response. It has an integrated feedback resistor that sets the output voltage to 1.15 V and a built-in phase compensation circuit. Applications can be created with a few external components.

AEC-Q100 qualified (note 1)
Adjustable soft start function
Power good output
Input under voltage lockout protection (UVLO)
Short circuit protection (SCP)
Output over voltage protection (OVP)
Over current protection (OCP)
Thermal shutdown srotection (TSD)
