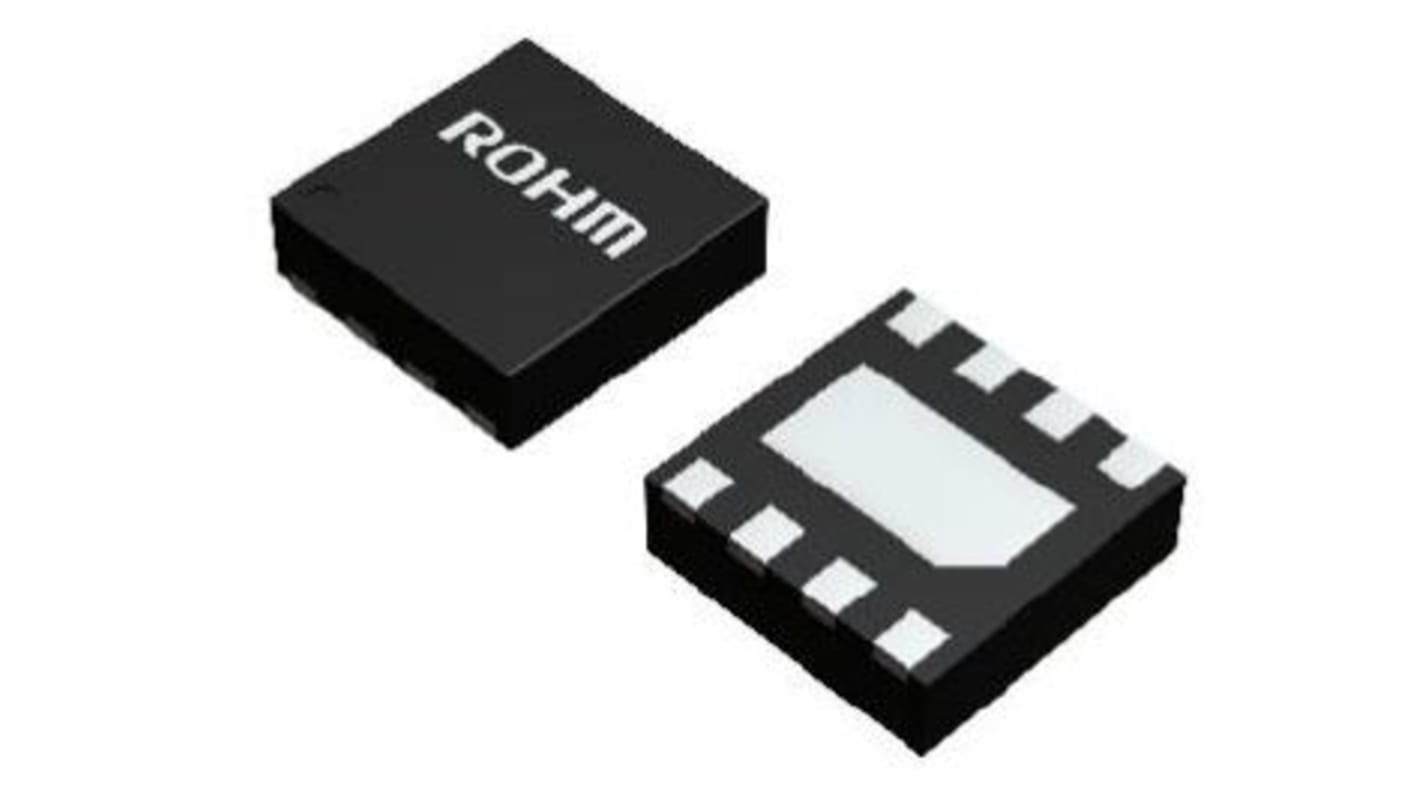

ROHM BD9SD11NUX-CE2, Synchronous Buck DC-DC Converter, 600mA
- RS Stock No.:
- 255-7698
- Mfr. Part No.:
- BD9SD11NUX-CE2
- Brand:
- ROHM
Subtotal (1 reel of 4000 units)*
£2,304.00
(exc. VAT)
£2,764.00
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
---|---|---|
4000 + | £0.576 | £2,304.00 |
*price indicative
- RS Stock No.:
- 255-7698
- Mfr. Part No.:
- BD9SD11NUX-CE2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Minimum Input Voltage | 2.7 V | |
Maximum Input Voltage | 5.5 V | |
Minimum Output Current | 600mA | |
Converter Type | Synchronous Buck | |
Select all | ||
---|---|---|
Brand ROHM | ||
Minimum Input Voltage 2.7 V | ||
Maximum Input Voltage 5.5 V | ||
Minimum Output Current 600mA | ||
Converter Type Synchronous Buck | ||
The ROHM 2.7 V to 5.5 V input, 600 mA single synchronous buck DC/DC converter for automotive is built-in low on resistance power MOSFETs. It is capable of providing current up to 600 mA. Small inductor is applicable due to high switching frequency of 2.2 MHz. It is a current mode control DC/DC converter and features high-speed transient response. It has an integrated feedback resistor that sets the output voltage to 1.15 V and a built-in phase compensation circuit. Applications can be created with a few external components.
AEC-Q100 qualified (note 1)
Adjustable soft start function
Power good output
Input under voltage lockout protection (UVLO)
Short circuit protection (SCP)
Output over voltage protection (OVP)
Over current protection (OCP)
Thermal shutdown srotection (TSD)
Adjustable soft start function
Power good output
Input under voltage lockout protection (UVLO)
Short circuit protection (SCP)
Output over voltage protection (OVP)
Over current protection (OCP)
Thermal shutdown srotection (TSD)
