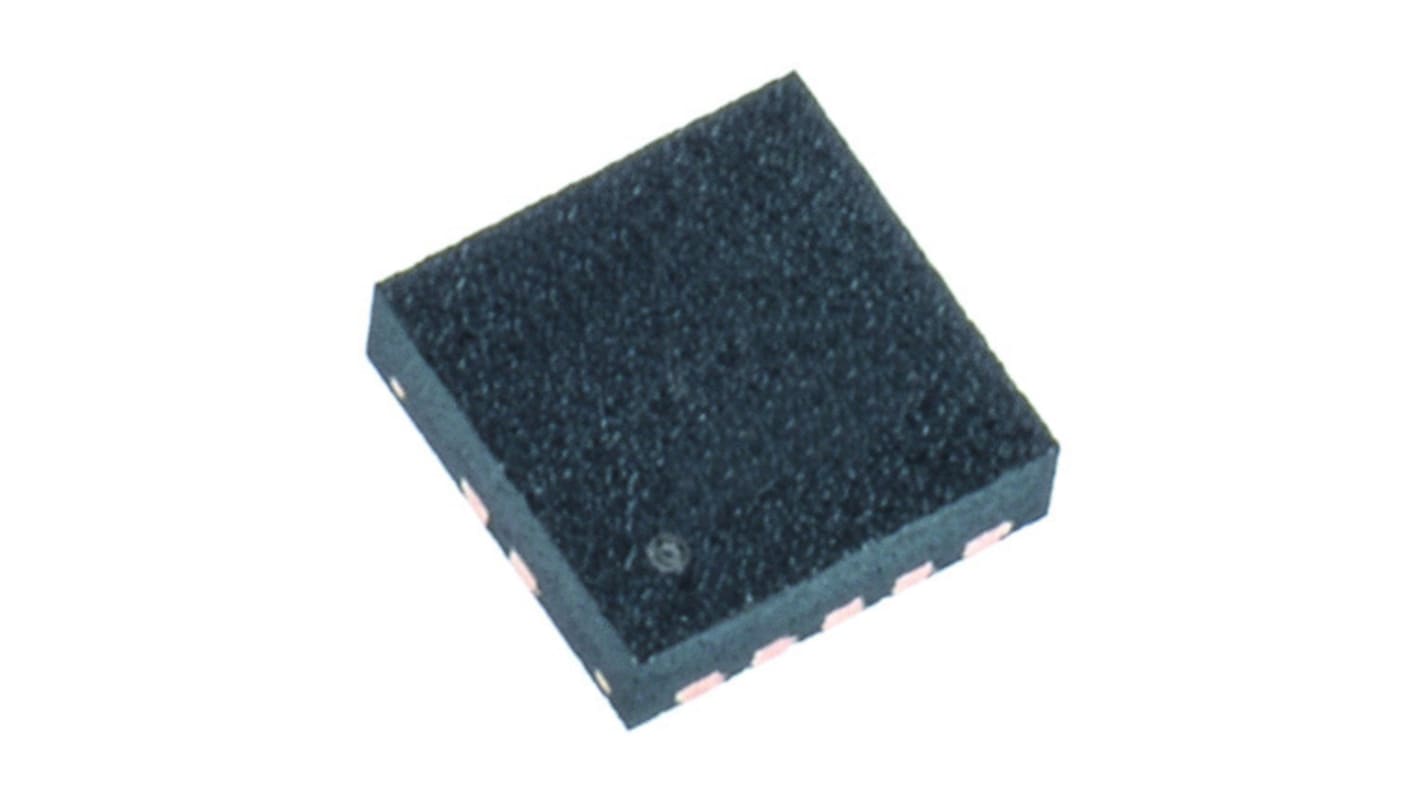

Texas Instruments TPS63700DRCT, 1-Channel, Inverting DC-DC Converter, Adjustable 10-Pin, SON

View all DC-DC Converters ICs

Subtotal (1 reel of 250 units)*

£301.50

(exc. VAT)

£361.75

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
250 +£1.206£301.50

*price indicative

RS Stock No.:
145-7141
Mfr. Part No.:
TPS63700DRCT
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Minimum Input Voltage

2.7 V

Maximum Input Voltage

5.5 V

Maximum Output Current

360mA

Converter Type

Inverting

Number of Outputs

1

Output Type

Adjustable

Mounting Type

Surface Mount

Maximum Switching Frequency

1.38 MHz

Package Type

SON

Pin Count

10

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

Length

3mm

Width

3mm

Height

0.9mm

Dimensions

3 x 3 x 0.9mm

Switching Regulator

Yes

Efficiency

84%

COO (Country of Origin):
MY

Step-Down/Step-Up DC/DC Converters (Integrated Switch), Texas Instruments


This highly efficient buck-boost converter uses a single inductor for DC to DC conversion. With automatic transmission between its Step Down and Step Up functions, buck-boost converters can be employed in battery powered products that use either a two-cell and three-cell alkaline battery, a NiCd or NiMH, or a single cell Lithium battery. This makes it ideal for use with cellular phones and similar hand-held devices.


DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments


The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
