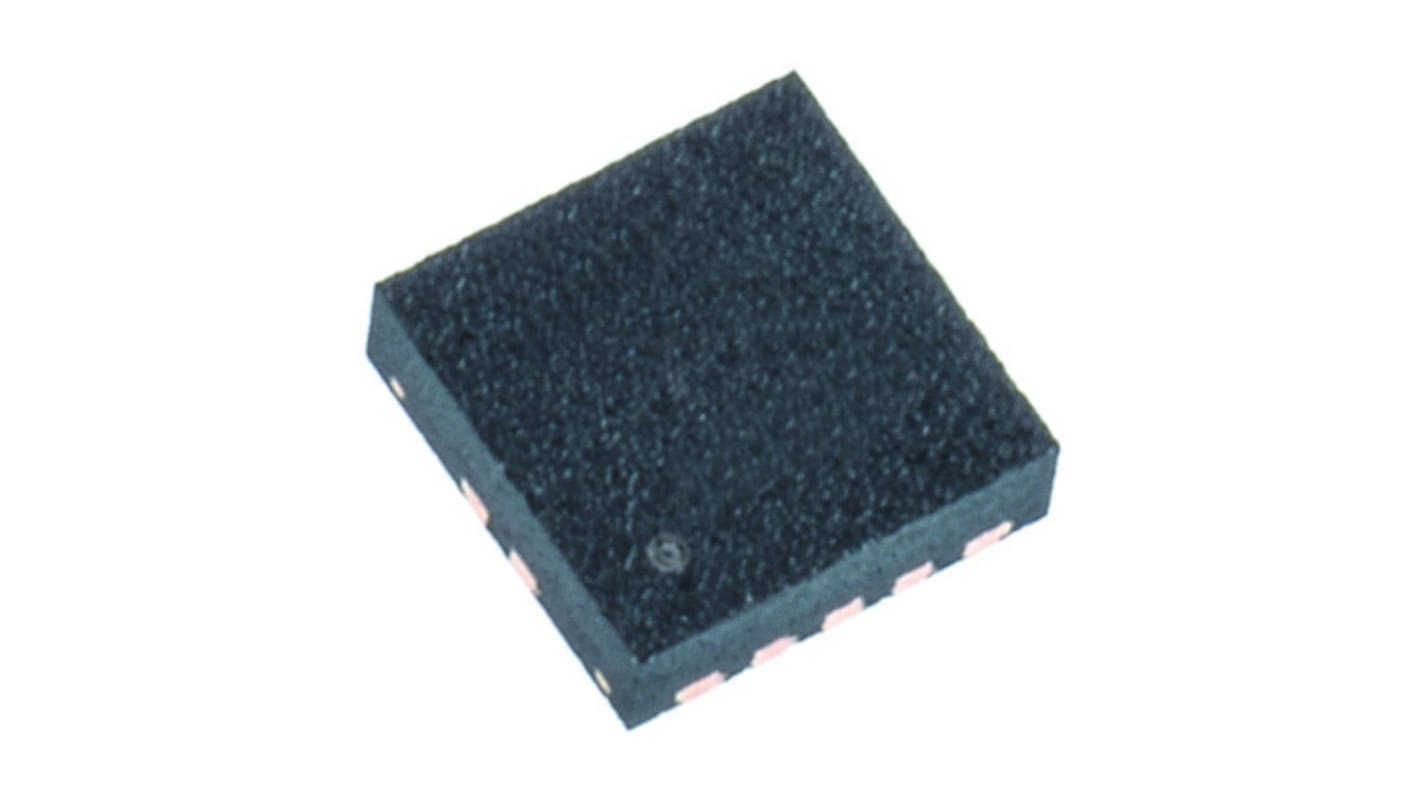

Texas Instruments TPS54140ADRCT, 1-Channel, Step Down, Synchronous DC-DC Converter, Adjustable 10-Pin, SON

RS Stock No.:: 162-7937
Mfr. Part No.:: TPS54140ADRCT
Brand:: Texas Instruments

Technical Reference (1)

Texas Instruments TPS54140ADRCT, 1-Channel, Step Down, Synchronous DC-DC Converter, Adjustable 10-Pin, SON

View this category

Price Each (On a Reel of 250)

£0.952

(exc. VAT)

£1.142

(inc. VAT)

Available to back order for despatch when stock is available

Units	Per unit	Per Reel*
250 +	£0.952	£238.00

*price indicative

RS Stock No.:: 162-7937
Mfr. Part No.:: TPS54140ADRCT
Brand:: Texas Instruments

COO (Country of Origin):: PH

Attribute	Value
Minimum Output Voltage	0.8 V
Maximum Output Voltage	39 V
Minimum Input Voltage	3.5 V
Maximum Input Voltage	42 V
Maximum Output Current	1.5A
Converter Type	Step Down, Synchronous
Number of Outputs	1
Output Type	Adjustable
Mounting Type	Surface Mount
Maximum Switching Frequency	2.5 MHz
Package Type	SON
Pin Count	10
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Dimensions	3.1 x 3.1 x 0.95mm
Length	3.1mm
Height	0.95mm
Width	3.1mm
Switching Regulator	Yes
