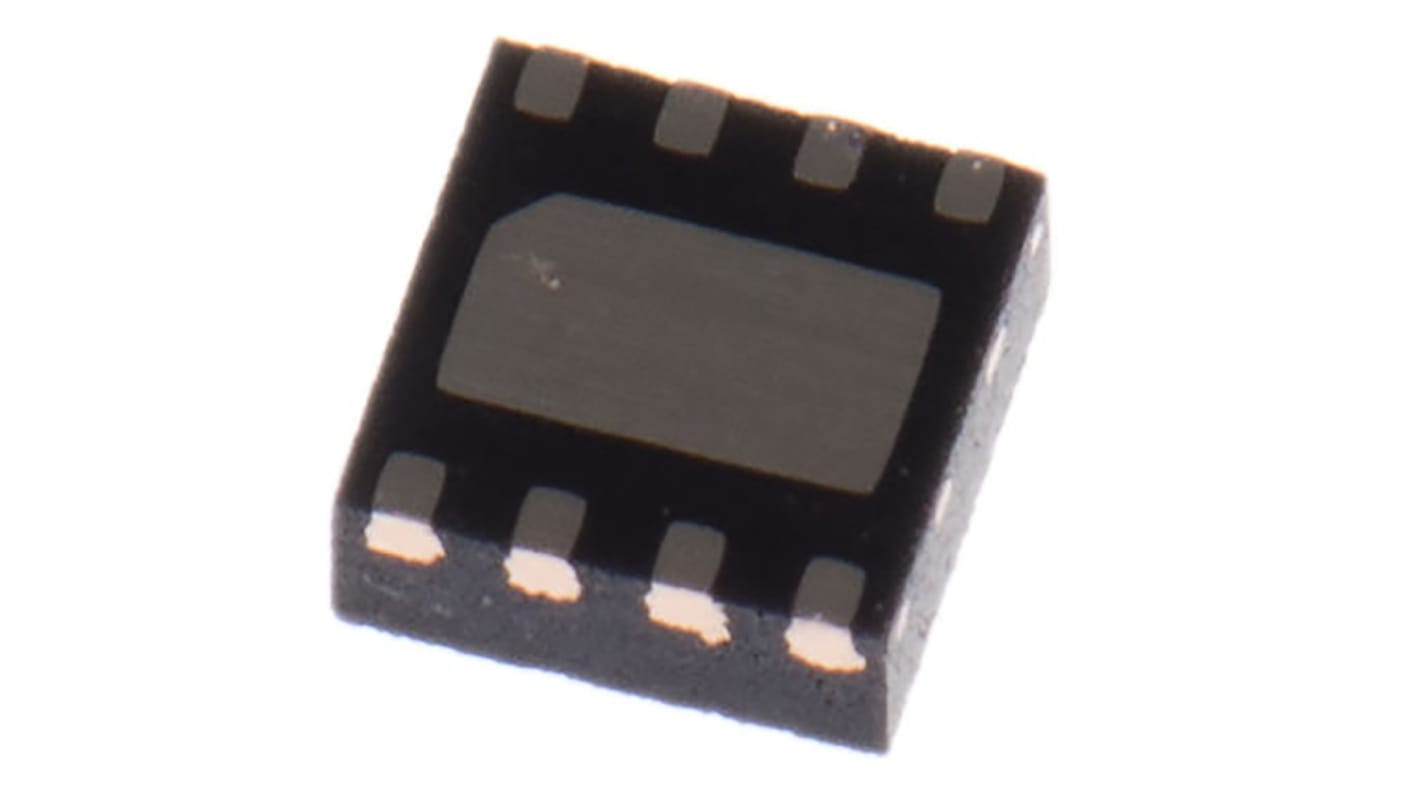

Texas Instruments TPS54061DRBT, 5-Channel DC/DC Converter, Adjustable, 58V, 0.8 V 8-Pin, SON
- RS Stock No.:
- 774-1446
- Mfr. Part No.:
- TPS54061DRBT
- Brand:
- Texas Instruments
Subtotal (1 unit)*
£1.11
(exc. VAT)
£1.33
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 81 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £1.11 |
*price indicative
- RS Stock No.:
- 774-1446
- Mfr. Part No.:
- TPS54061DRBT
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | DC/DC Converter | |
| Maximum Output Voltage | 58V | |
| Minimum Input Voltage | 4.7V | |
| Maximum Input Voltage | 60V | |
| Maximum Output Current | 200mA | |
| Topology | Step Down | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 1100kHz | |
| Mount Type | Surface | |
| Package Type | SON | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 8 | |
| Height | 0.92mm | |
| Series | TPS54061 | |
| Standards/Approvals | No | |
| Length | 3.15mm | |
| Automotive Standard | No | |
| Minimum Output Voltage | 0.8V | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type DC/DC Converter | ||
Maximum Output Voltage 58V | ||
Minimum Input Voltage 4.7V | ||
Maximum Input Voltage 60V | ||
Maximum Output Current 200mA | ||
Topology Step Down | ||
Output Type Adjustable | ||
Maximum Switching Frequency 1100kHz | ||
Mount Type Surface | ||
Package Type SON | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Pin Count 8 | ||
Height 0.92mm | ||
Series TPS54061 | ||
Standards/Approvals No | ||
Length 3.15mm | ||
Automotive Standard No | ||
Minimum Output Voltage 0.8V | ||
Step-Down DC/DC Converters (Integrated Switch) over 35V Input Max., Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
