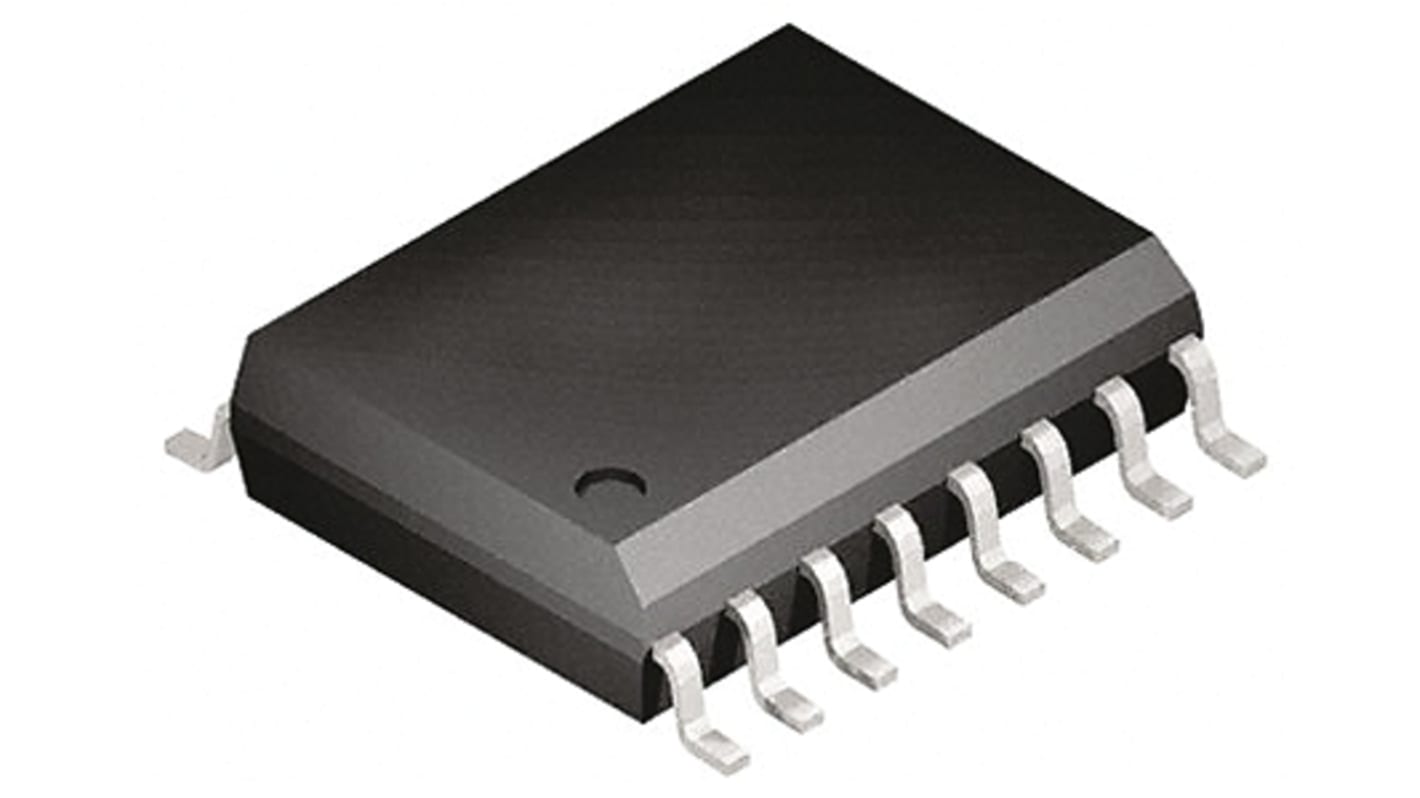

onsemi NCP3163BPWG, 1-Channel, Inverting, Step-Down/Up DC-DC Converter, Adjustable, 200mA 16-Pin, SOIC

RS Stock No.:: 805-7290
Mfr. Part No.:: NCP3163BPWG
Brand:: onsemi

onsemi NCP3163BPWG, 1-Channel, Inverting, Step-Down/Up DC-DC Converter, Adjustable, 200mA 16-Pin, SOIC

Price Each (In a Pack of 5)**

£2.496

(exc. VAT)

£2.995

(inc. VAT)

Available to back order for despatch when stock is available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit	Per Pack**
5 +	£2.496	£12.48

**price indicative

RS Stock No.:: 805-7290
Mfr. Part No.:: NCP3163BPWG
Brand:: onsemi

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Minimum Output Voltage	-1 V
Maximum Output Voltage	24 V
Minimum Input Voltage	2.5 V
Maximum Input Voltage	40 V
Minimum Output Current	200mA
Maximum Output Current	3.4A
Converter Type	Inverting, Step Down, Step Up
Number of Outputs	1
Output Type	Adjustable
Maximum Switching Frequency	288 kHz
Mounting Type	Surface Mount
Package Type	SOIC
Pin Count	16
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Dimensions	10.45 x 7.6 x 2.55mm
Load Regulation	80 mV
Line Regulation	90 mV
Length	10.45mm
Efficiency	83%
Height	2.55mm
Width	7.6mm
Switching Regulator	Yes
