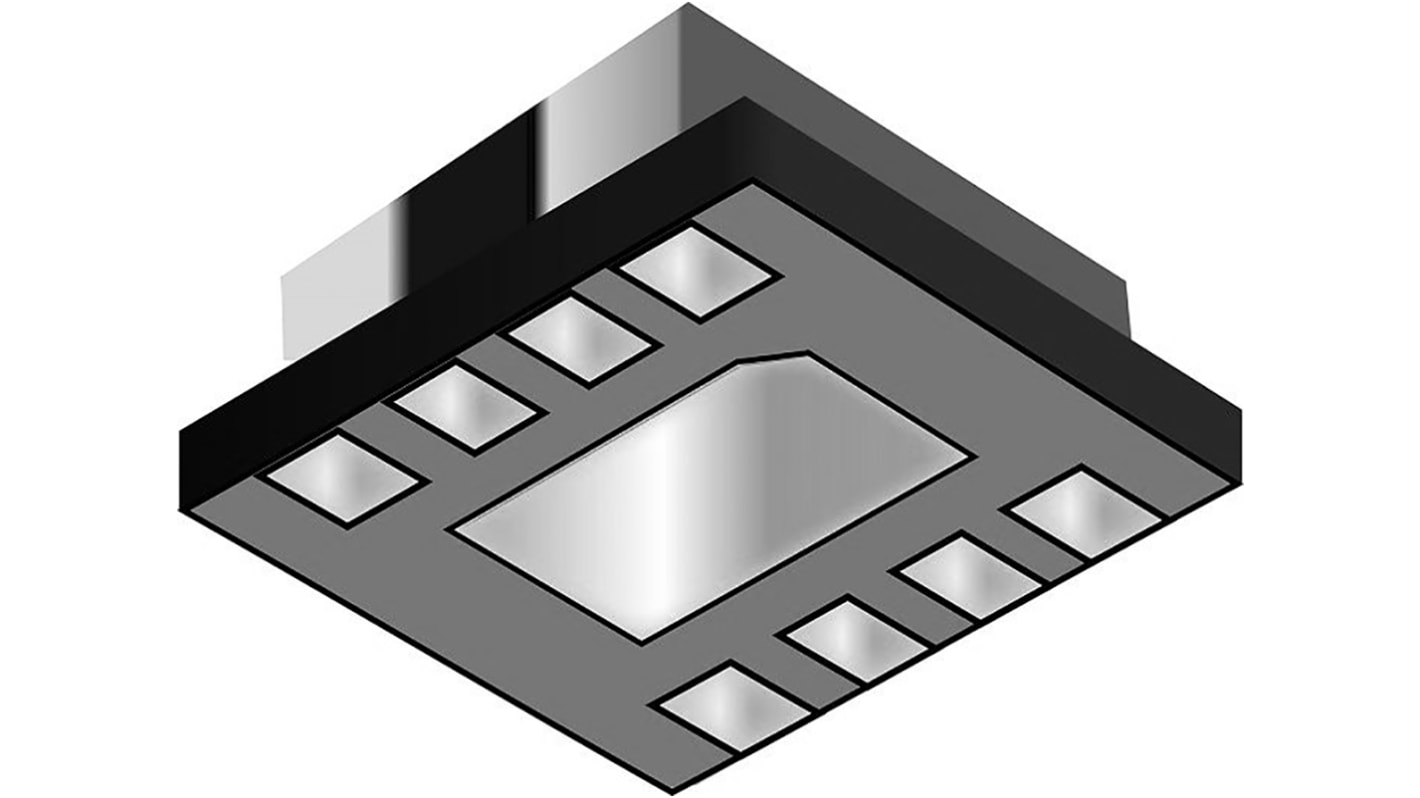

Texas Instruments TPS82130SILT, 1-Channel, Step Down DC-DC Converter, Adjustable, 0A 8-Pin, uSiP
- RS Stock No.:
- 133-0778P
- Mfr. Part No.:
- TPS82130SILT
- Brand:
- Texas Instruments
Subtotal 1 unit (supplied on a reel)*. Quantities below 150 on continuous strip
£2.08
(exc. VAT)
£2.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,685 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.08 |
*price indicative
- RS Stock No.:
- 133-0778P
- Mfr. Part No.:
- TPS82130SILT
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Minimum Output Voltage | 0.9 V | |
| Maximum Output Voltage | 6 V | |
| Minimum Input Voltage | 3 V | |
| Maximum Input Voltage | 17 V | |
| Minimum Output Current | 0A | |
| Maximum Output Current | 3A | |
| Converter Type | Step Down | |
| Number of Outputs | 1 | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 2 MHz | |
| Mounting Type | Surface Mount | |
| Package Type | uSiP | |
| Pin Count | 8 | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 2.9mm | |
| Height | 1.45mm | |
| Length | 3.1mm | |
| Switching Regulator | Yes | |
| Load Regulation | 0.12 %/A | |
| Line Regulation | 0.002 %/V | |
| Priced to Clear | Yes | |
| Dimensions | 3.1 x 2.9 x 1.45mm | |
Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Minimum Output Voltage 0.9 V | ||
Maximum Output Voltage 6 V | ||
Minimum Input Voltage 3 V | ||
Maximum Input Voltage 17 V | ||
Minimum Output Current 0A | ||
Maximum Output Current 3A | ||
Converter Type Step Down | ||
Number of Outputs 1 | ||
Output Type Adjustable | ||
Maximum Switching Frequency 2 MHz | ||
Mounting Type Surface Mount | ||
Package Type uSiP | ||
Pin Count 8 | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 2.9mm | ||
Height 1.45mm | ||
Length 3.1mm | ||
Switching Regulator Yes | ||
Load Regulation 0.12 %/A | ||
Line Regulation 0.002 %/V | ||
Priced to Clear Yes | ||
Dimensions 3.1 x 2.9 x 1.45mm | ||
