Fluke 1730 Current & Voltage Energy Monitor & Logger, USB
- RS Stock No.:
- 788-7157
- Mfr. Part No.:
- Fluke 1730/EU
- Brand:
- Fluke
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1,122.38
(exc. VAT)
£1,346.86
(inc. VAT)
- RS Stock No.:
- 788-7157
- Mfr. Part No.:
- Fluke 1730/EU
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Model Number | 1730 | |
| Measurement Parameters | Current, Power, Voltage | |
| Interface Type | USB | |
| Data Logger Type | Current & Voltage | |
| Maximum Voltage Measurement | 1000V | |
| Communication Protocol | USB | |
| Maximum Temperature Measurement | +50 °C | |
| Minimum Temperature Measurement | -10°C | |
| Power Source | Battery | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +50°C | |
| Maximum Current Measurement | 6000A | |
| Display Type | TFT | |
| Best Voltage Measurement Accuracy | ± 0.2 % | |
| Battery Type | Li-Ion | |
| Dimensions | 198 x 167 x 55mm | |
| Best Current Measurement Accuracy | ± 1 % | |
| Battery Life | 4 h | |
| Model Number p | 1730 | |
| Maximum Humidity Measurement | 95%RH | |
| Current Measurement Resolution | ± 1 % | |
Select all | ||
|---|---|---|
Brand Fluke | ||
Model Number 1730 | ||
Measurement Parameters Current, Power, Voltage | ||
Interface Type USB | ||
Data Logger Type Current & Voltage | ||
Maximum Voltage Measurement 1000V | ||
Communication Protocol USB | ||
Maximum Temperature Measurement +50 °C | ||
Minimum Temperature Measurement -10°C | ||
Power Source Battery | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +50°C | ||
Maximum Current Measurement 6000A | ||
Display Type TFT | ||
Best Voltage Measurement Accuracy ± 0.2 % | ||
Battery Type Li-Ion | ||
Dimensions 198 x 167 x 55mm | ||
Best Current Measurement Accuracy ± 1 % | ||
Battery Life 4 h | ||
Model Number p 1730 | ||
Maximum Humidity Measurement 95%RH | ||
Current Measurement Resolution ± 1 % | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE

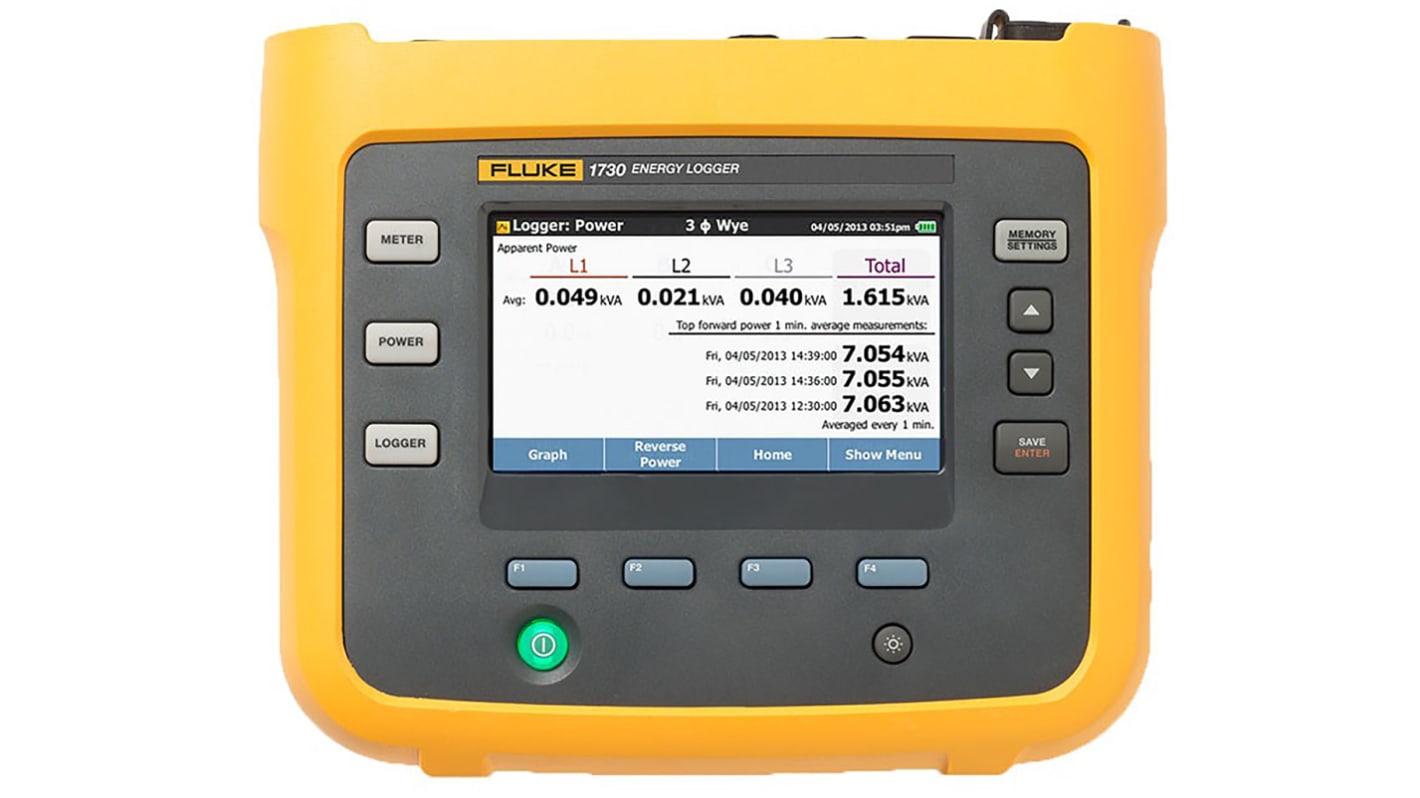

Fluke 1730 Three-Phase Electrical Energy Logger
The Fluke 1730 Three-Phase Electrical Energy logger introduces a new simplicity to discovering sources of electrical energy waste.The Fluke 1730 enables users to capture the data they need to make energy savings in their facilities.
The Fluke 1730 Three-Phase Electrical Energy logger consists of measurement hardware and application software so that data can be collected and reports created with the minimum of effort. Downloading data is quick, simple and can be written directly to a USB stick without having to use a computer for downloading.
The Energy Analyze application software allows users to download, analyze and compile report in minutes.
For a full range of essential specifications please see datasheet.
The Fluke 1730 Three-Phase Electrical Energy logger consists of measurement hardware and application software so that data can be collected and reports created with the minimum of effort. Downloading data is quick, simple and can be written directly to a USB stick without having to use a computer for downloading.
The Energy Analyze application software allows users to download, analyze and compile report in minutes.
For a full range of essential specifications please see datasheet.
Features & Benefits
• Key measurements: voltage, current, power, power factor and associated values enable energy saving strategies to be implemented
• Bright, color touch screen: perform convenient in-the-field analysis and data checks with full graphical display
• Comprehensive logging: all measured values are automatically logged and can be reviewed during logging and before downloading for on the-go analysis
• Optimised user interface: quick, guided, graphical setup ensures you’re capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
• Wide range power: power instrument directly from the measured circuit eliminating the need to find a power outlet while allowing the instrument to be secured safely inside electrical panels
• Two USB ports: one for PC connection and another for fast, simple download to standard USB thumb drives, or other USB devices
• Compact size: designed to fit in tight spaces and panels
•Quickly understand specific points of energy loss, reduce energy bills more easily than ever
•Advanced auto-correct feature eliminates costly errors due to improper connections
• Bright, color touch screen: perform convenient in-the-field analysis and data checks with full graphical display
• Comprehensive logging: all measured values are automatically logged and can be reviewed during logging and before downloading for on the-go analysis
• Optimised user interface: quick, guided, graphical setup ensures you’re capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
• Wide range power: power instrument directly from the measured circuit eliminating the need to find a power outlet while allowing the instrument to be secured safely inside electrical panels
• Two USB ports: one for PC connection and another for fast, simple download to standard USB thumb drives, or other USB devices
• Compact size: designed to fit in tight spaces and panels
•Quickly understand specific points of energy loss, reduce energy bills more easily than ever
•Advanced auto-correct feature eliminates costly errors due to improper connections
Note
CRITICAL SAFETY ALERT - PLEASE READ! Fluke has determined that certain improper use of the test lead set, 3PHVL-1730 or 3PHVL-1735-5M 'Voltage Test Lead, 3-phase + N', included with the 173x Series, 174x Series Power Quality Loggers and 3540FC Power Monitor, may potentially expose users to hazardous conditions, posing the risk of serious personal injury or death.
Standards
1000 V CAT III/600 V CAT IV
Supplied with
Power supply, voltage test lead, black dolphin clip, set of three Thin-Flexi current probes 30.5 cm, i1730-flex1500/3PK, colour-coded Wire Clips, power cord, test lead with stackable plugs 10 cm, test lead with stackable plugs, 2m DC power cable, USB cable A Mini-USB, soft storage Bag / Case, input connector Decal, documentation Info Pack (Quick Reference Card, Safety, Information, Battery Pack Safety Information, iFlex Probe, Safety Information, i40s-EL Current Clamp Safety Information, 4 GB USB Flash Drive (includes User’s Manual)
