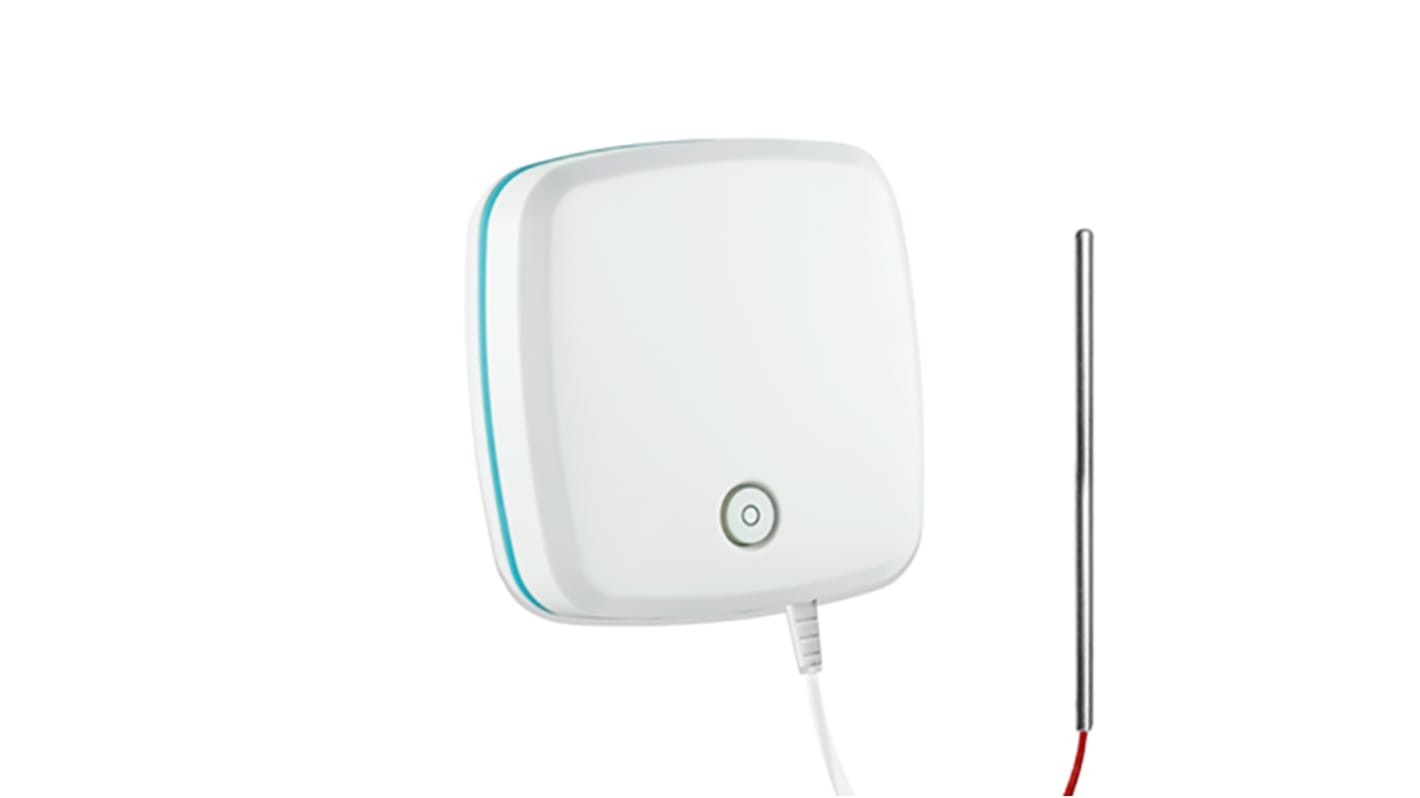

Lascar EL-MOTE-TC Temperature Data Logger, Wi-Fi, 1 Input Channel(s)
- RS Stock No.:
- 184-7730
- Mfr. Part No.:
- EL-MOTE-TC
- Brand:
- Lascar
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 184-7730
- Mfr. Part No.:
- EL-MOTE-TC
- Brand:
- Lascar
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lascar | |
| Model Number | EL-MOTE-TC | |
| Number of Input Channels | 1 | |
| Measurement Parameters | Temperature | |
| Sensor Type | J, K, T, Thermocouple | |
| Interface Type | Wi-Fi | |
| Data Logger Type | Temperature | |
| Maximum Temperature Measurement | +1350 (K) °C, +1190 (J) °C, +400 (T) °C. +200 °C K-Type Probe Supplied | |
| Power Source | Battery, Mains | |
| Best Temperature Measurement Accuracy | ±1°C | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -18°C | |
| Maximum Operating Temperature | +55°C | |
| Display Type | LED | |
| Battery Type | AA | |
| Temperature Measurement Resolution | 1°C | |
| Battery Life | 2 Years | |
| Includes | 1.5V AA x 4 Batteries, EL-SP-TC K Type Thermocouple Probe - 1.5m Cable (EL-P-TC-K) and Smart Probe Adapter, Wall Mounting Bracket for EL-MOTE Device | |
| Number of Readings Per Channel | Unlimited | |
| Alarm | Yes | |
| Select all | ||
|---|---|---|
Brand Lascar | ||
Model Number EL-MOTE-TC | ||
Number of Input Channels 1 | ||
Measurement Parameters Temperature | ||
Sensor Type J, K, T, Thermocouple | ||
Interface Type Wi-Fi | ||
Data Logger Type Temperature | ||
Maximum Temperature Measurement +1350 (K) °C, +1190 (J) °C, +400 (T) °C. +200 °C K-Type Probe Supplied | ||
Power Source Battery, Mains | ||
Best Temperature Measurement Accuracy ±1°C | ||
IP Rating IP67 | ||
Minimum Operating Temperature -18°C | ||
Maximum Operating Temperature +55°C | ||
Display Type LED | ||
Battery Type AA | ||
Temperature Measurement Resolution 1°C | ||
Battery Life 2 Years | ||
Includes 1.5V AA x 4 Batteries, EL-SP-TC K Type Thermocouple Probe - 1.5m Cable (EL-P-TC-K) and Smart Probe Adapter, Wall Mounting Bracket for EL-MOTE Device | ||
Number of Readings Per Channel Unlimited | ||
Alarm Yes | ||
- COO (Country of Origin):
- CN
A Cloud-enabled, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications using a thermocouple probe. EasyLog Cloud harnesses the power of IoT to automate data logging and alert notifications - perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe. Key features include alarm functions, a built-in sounder and status LED, and quick, wireless App-based configuration. Suitable for indoor and outdoor applications and has an industry leading battery life of up to 2 years.
Alarm functions include a built in sounder and LED
Quick, wireless App based configuration
Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
Store data from the data loggers using the EasyLog Cloud professional account (sold separately here 172-0574)
Suitable for indoor and outdoor applications
Industry leading 2 years battery life
Add first logger for free
Quick, wireless App based configuration
Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
Store data from the data loggers using the EasyLog Cloud professional account (sold separately here 172-0574)
Suitable for indoor and outdoor applications
Industry leading 2 years battery life
Add first logger for free
