Sefram DAS30 Data Acquisition System, 2 Channel(s), Ethernet, USB, 1Msps, 14 bit
- RS Stock No.:
- 876-2501
- Mfr. Part No.:
- DAS30PT
- Brand:
- Sefram
Subtotal (1 unit)*
£3,826.08
(exc. VAT)
£4,591.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £3,826.08 |
*price indicative
- RS Stock No.:
- 876-2501
- Mfr. Part No.:
- DAS30PT
- Brand:
- Sefram
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sefram | |
Number of Input Channels | 2 | |
Sampling Rate | 1Msps | |
Resolution | 14 bit | |
Connectivity | Ethernet, USB | |
On Board Memory | 32000MB | |
Power Source | Battery, Mains | |
Input Type | Analogue, Digital | |
Output Type | Digital | |
Battery Type | Li-Ion | |
Battery Life | 4 h, 9 h | |
Weight | 2.5kg | |
Height | 105mm | |
Maximum Operating Temperature | +40°C | |
Length | 295mm | |
Width | 210mm | |
Model Number p | DAS30 | |
Minimum Operating Temperature | 0°C | |
Select all | ||
---|---|---|
Brand Sefram | ||
Number of Input Channels 2 | ||
Sampling Rate 1Msps | ||
Resolution 14 bit | ||
Connectivity Ethernet, USB | ||
On Board Memory 32000MB | ||
Power Source Battery, Mains | ||
Input Type Analogue, Digital | ||
Output Type Digital | ||
Battery Type Li-Ion | ||
Battery Life 4 h, 9 h | ||
Weight 2.5kg | ||
Height 105mm | ||
Maximum Operating Temperature +40°C | ||
Length 295mm | ||
Width 210mm | ||
Model Number p DAS30 | ||
Minimum Operating Temperature 0°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

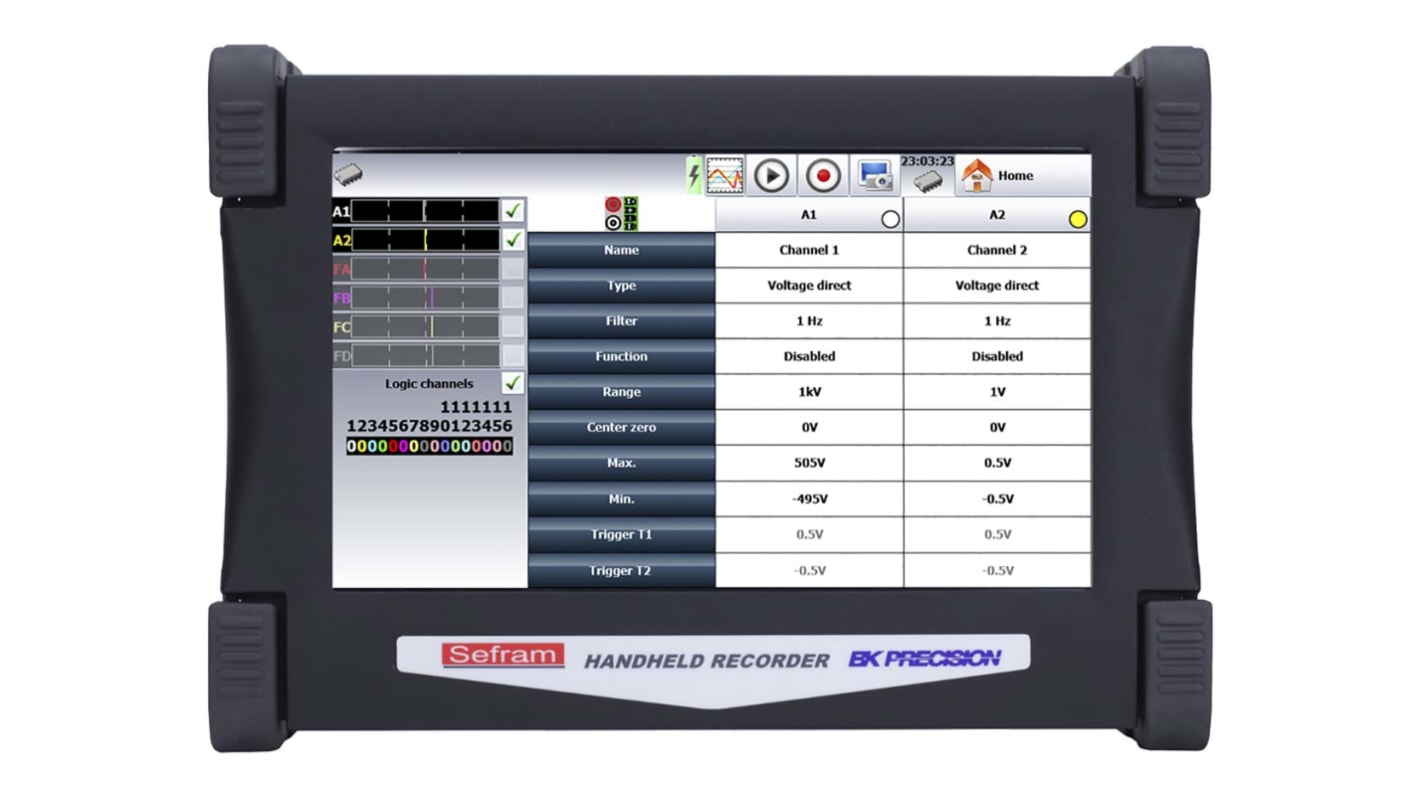

Sefram DAS 30 & DAS 50 Multifunction Handheld Recorders
Sefram DAS 30 & 50 Series general purpose and multifunction recorders are designed for ease of use, simple transfer of records and a wide range of data recording applications. The manufacturer part number suffix indicates whether the model has built-in options which include 110 mm thermal printer module (P), temperature input (T), high impedance (Z) or permutations of these options. All models feature a new interface and large LCD touch screen. Measurements (traces, digital values) can be recorded directly to internal memory or to a USB stick. Using Sefram software, users can easily transfer records to a computer. DAS 30 & 50 applications include: maintenance/failure diagnostics on electrical systems; voltage, current, temperature recording and monitoring; power analysis for single phase, dual phase and three phase systems.
Choice of 2 or 4 analog channel models
Universal input
DC, RMS AC+ DC voltage measurement
Frequency counter
Power analysis function
16 logical channels
14-bit resolution
10" TFT panoramic LCD touch screen
1 Ms/s sampling rate
100 kHz bandwidth
32 Gb internal hard disk
32 Mword memory
Interfaces 2 x USB, Ethernet
Lithium-ion battery
IEC 1010 CAT III 600V
Universal input
DC, RMS AC+ DC voltage measurement
Frequency counter
Power analysis function
16 logical channels
14-bit resolution
10" TFT panoramic LCD touch screen
1 Ms/s sampling rate
100 kHz bandwidth
32 Gb internal hard disk
32 Mword memory
Interfaces 2 x USB, Ethernet
Lithium-ion battery
IEC 1010 CAT III 600V
Supplied with
Lithium ion 10.8V 6.5Ah battery, set of red and black accessories (cable + alligator clip + banana plug), carrying case, mains adapter, manual (on CD-ROM)
Options
Supplied with
Included: main adaptor 100/240V, manual (CD-ROM), rugged carrying case, set of red and black cables, aligator clips, quick banana plug
