Vishay TCMD4000 Darlington Pair, 0.1 A 35 V, 16-Pin SOP

View all Darlington Pairs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
180-7427
Mfr. Part No.:
TCMD4000
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Maximum Continuous Collector Current

0.1 A

Maximum Collector Emitter Voltage

35 V

Package Type

SOP

Pin Count

16

COO (Country of Origin):
MY

Vishay Optocoupler

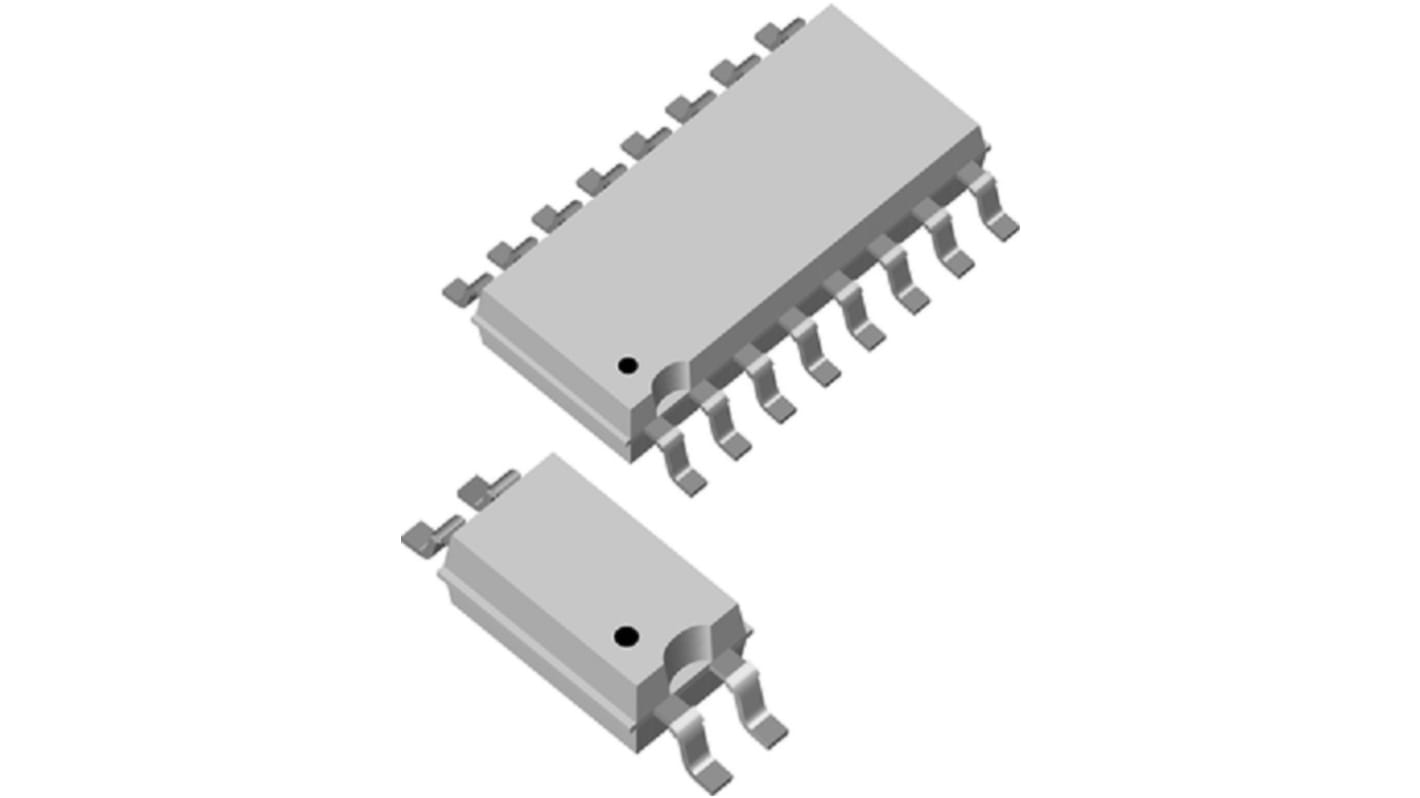

The Vishay TCMD4000 4-channel, SOP-14 package optocoupler has an electric rating of 1.6V forward voltage and 60mA forward current. It consists of a photodarlington optically coupled to a gallium arsenide infrared-emitting diodes. The elements provide a fixed distance between input and output for the highest safety requirements.

Features and Benefits


• AC isolation test voltage is 3750VRMS
• Low coupling capacitance of 0.3pF
• Low profile package (half pitch)
• Low temperature coefficient of CTR
• Power dissipation is 250mW
• Wide ambient temperature ranges between -40°C and 100°C

Applications


• Answering machines
• General applications
• Modems
• Programmable logic

Certifications

• BSI
• CSA 22.2 bulletin 5A, double protection
• DIN EN 60747-5-5 (VDE 0884-5)
• FIMKO
• UL1577, file no. E76222 system code M, double protection
