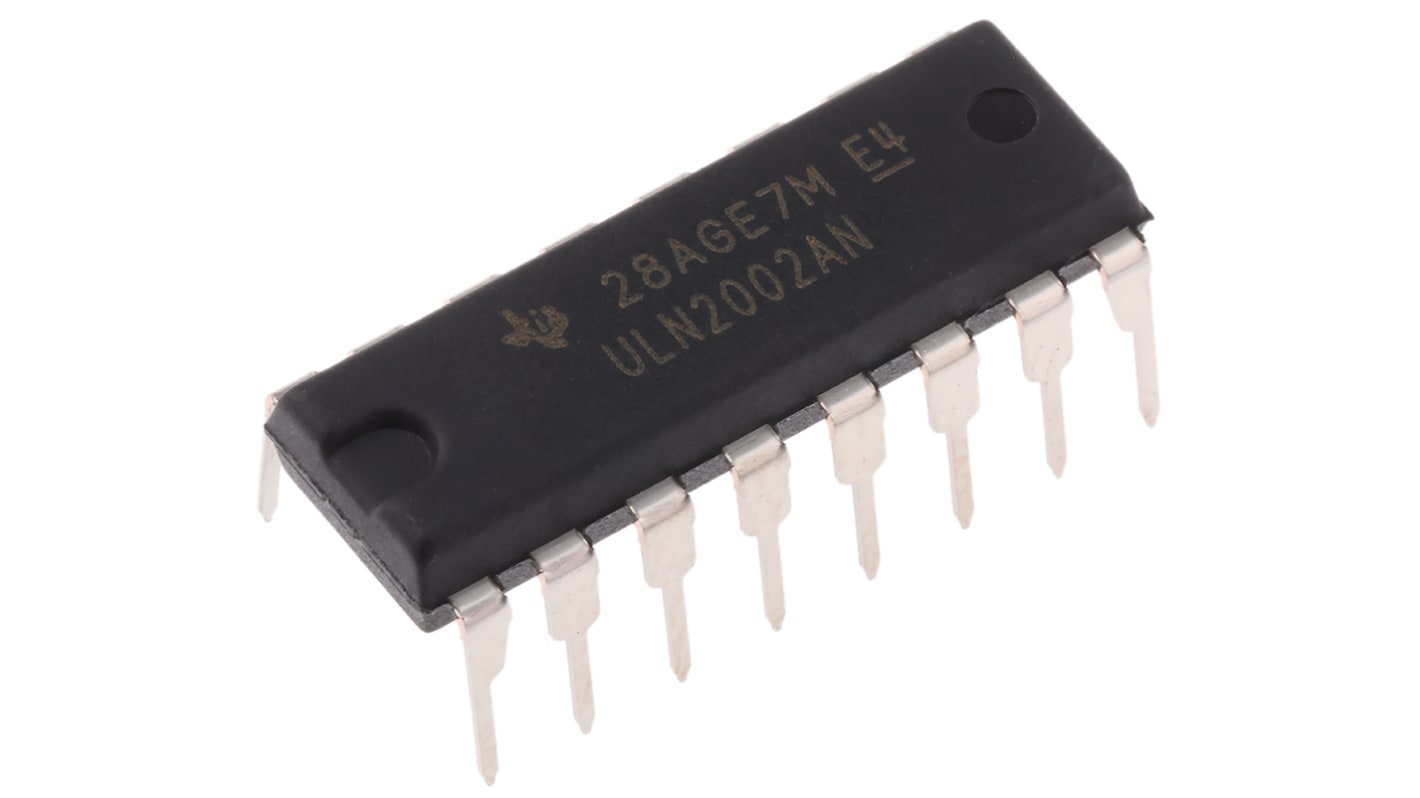

Texas Instruments ULN2002AN, 7-element NPN Darlington Pair, 500 mA 50 V, 16-Pin PDIP
- RS Stock No.:
- 144-9908
- Mfr. Part No.:
- ULN2002AN
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 144-9908
- Mfr. Part No.:
- ULN2002AN
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Transistor Type | NPN | |
| Maximum Continuous Collector Current | 500 mA | |
| Maximum Collector Emitter Voltage | 50 V | |
| Package Type | PDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 16 | |
| Transistor Configuration | Common Emitter | |
| Number of Elements per Chip | 7 | |
| Maximum Collector Emitter Saturation Voltage | 1.6 V | |
| Height | 4.57mm | |
| Width | 6.35mm | |
| Minimum Operating Temperature | -20 °C | |
| Dimensions | 19.3 x 6.35 x 4.57mm | |
| Maximum Operating Temperature | +70 °C | |
| Length | 19.3mm | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Transistor Type NPN | ||
Maximum Continuous Collector Current 500 mA | ||
Maximum Collector Emitter Voltage 50 V | ||
Package Type PDIP | ||
Mounting Type Through Hole | ||
Pin Count 16 | ||
Transistor Configuration Common Emitter | ||
Number of Elements per Chip 7 | ||
Maximum Collector Emitter Saturation Voltage 1.6 V | ||
Height 4.57mm | ||
Width 6.35mm | ||
Minimum Operating Temperature -20 °C | ||
Dimensions 19.3 x 6.35 x 4.57mm | ||
Maximum Operating Temperature +70 °C | ||
Length 19.3mm | ||
Darlington Transistor Arrays, Texas Instruments
A range of Darlington transistor arrays from Texas Instruments suitable for a wide range of medium to high current driver applications.
