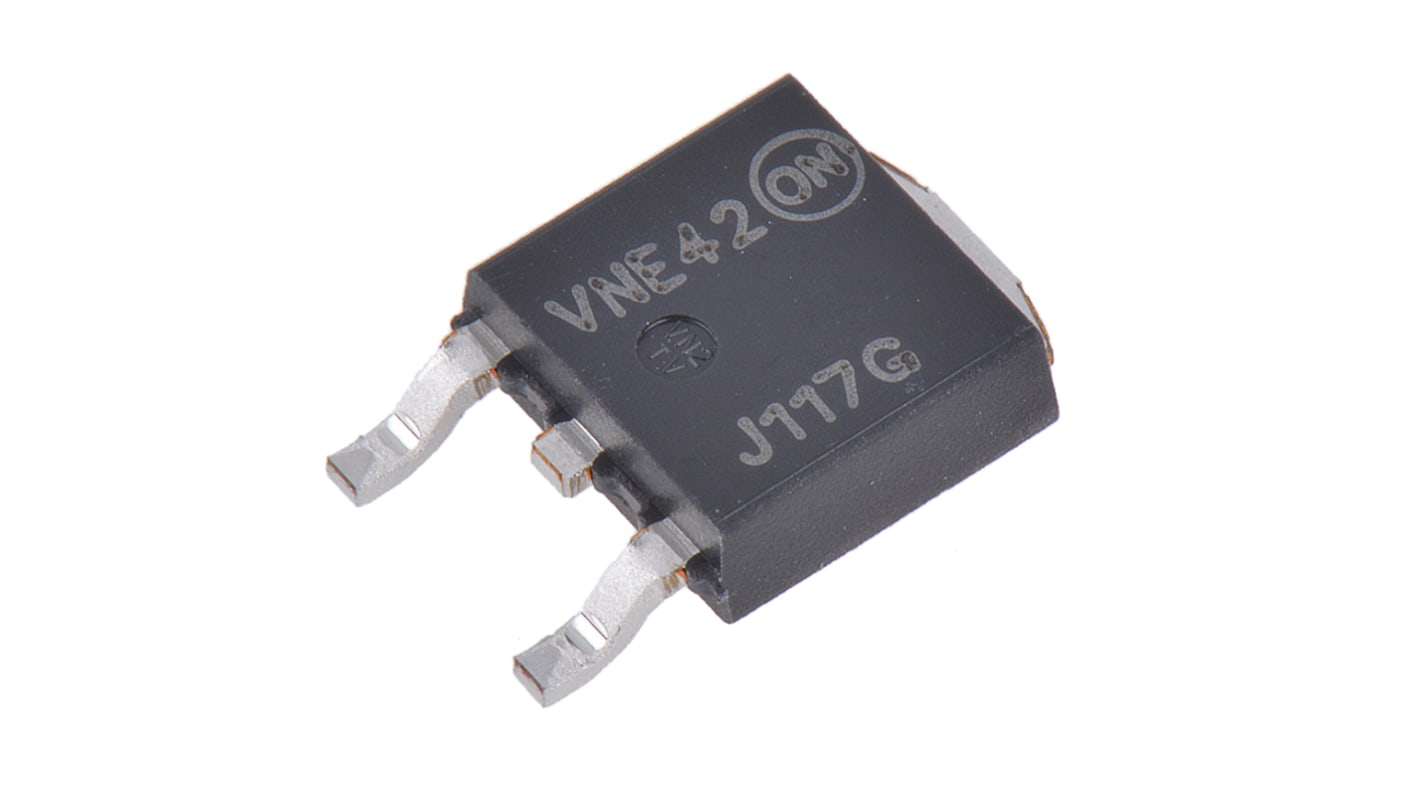

    onsemi MJD117G PNP Darlington Transistor, 2 A 100 V HFE:1000, 3-Pin DPAK

    View this category
    Bulk discount available

    Subtotal (1 tube of 75 units)*

    £32.48

    (exc. VAT)

    £39.00

    (inc. VAT)

    Add to Basket
    Select or type quantity
    Temporarily out of stock
    • Shipping from 28 August 2025
    Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
    Units
    Per unit
    Per Tube*
    75 - 75£0.433£32.475
    150 - 300£0.407£30.525
    375 +£0.39£29.25

    *price indicative

    RS Stock No.:
    145-3571
    Mfr. Part No.:
    MJD117G
    Brand:
    onsemi
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    onsemi

    Transistor Type

    PNP

    Maximum Continuous Collector Current

    2 A

    Maximum Collector Emitter Voltage

    100 V

    Maximum Emitter Base Voltage

    5 V

    Package Type

    DPAK (TO-252)

    Mounting Type

    Surface Mount

    Pin Count

    3

    Transistor Configuration

    Single

    Number of Elements per Chip

    1

    Minimum DC Current Gain

    1000

    Maximum Base Emitter Saturation Voltage

    4 V

    Maximum Collector Base Voltage

    100 V

    Maximum Collector Emitter Saturation Voltage

    3 V

    Maximum Collector Cut-off Current

    20µA

    Length

    6.73mm

    Height

    2.38mm

    Width

    6.22mm

    Maximum Power Dissipation

    20 W

    Minimum Operating Temperature

    -65 °C

    Dimensions

    6.73 x 6.22 x 2.38mm

    Maximum Operating Temperature

    +150 °C
