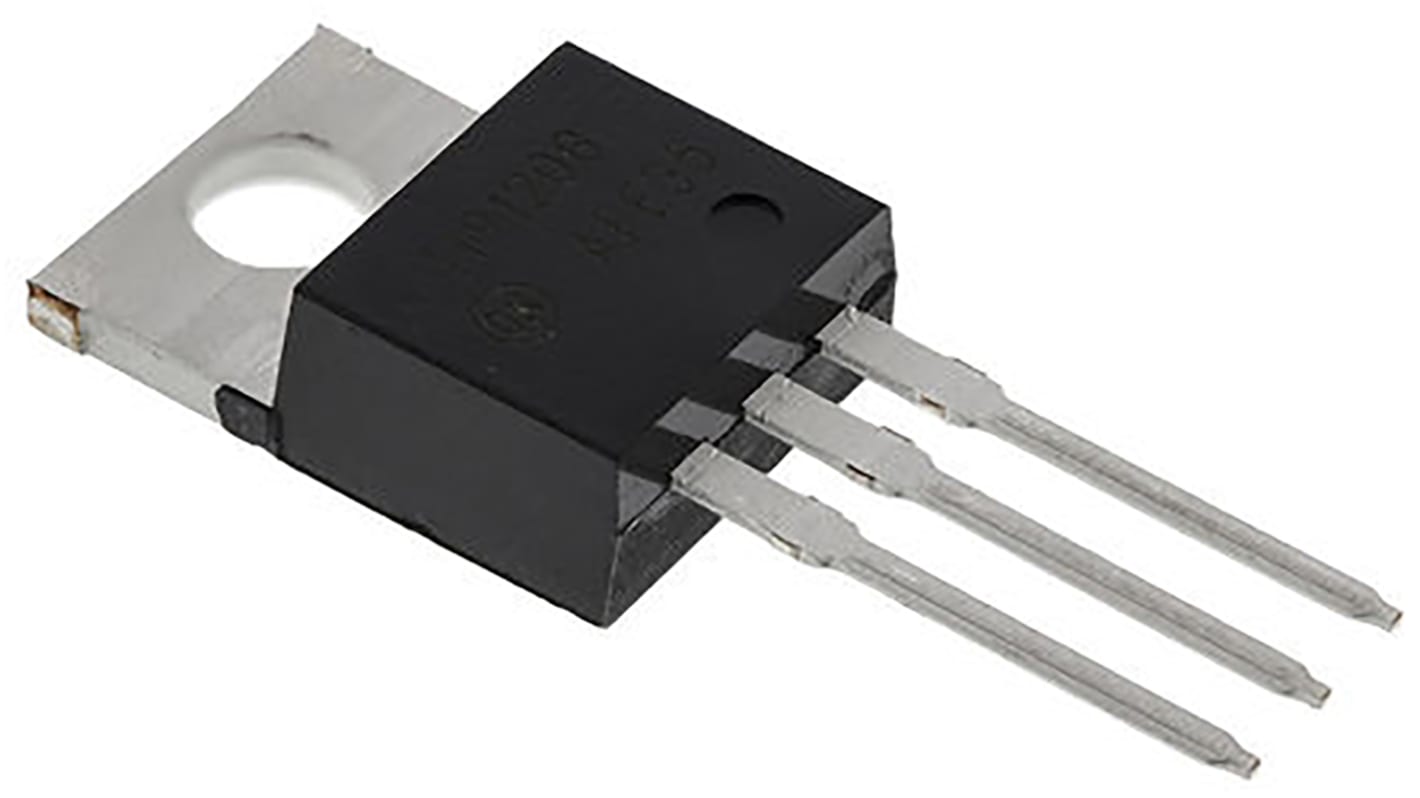

onsemi TIP120G NPN Darlington Transistor, 8 A 60 V HFE:1000, 3-Pin TO-220
- RS Stock No.:
- 103-5146
- Mfr. Part No.:
- TIP120G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 tube of 50 units)*
£16.80
(exc. VAT)
£20.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 150 unit(s) shipping from 27 October 2025
- Plus 100 unit(s) shipping from 03 November 2025
- Plus 600 unit(s) shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £0.336 | £16.80 |
| 100 - 450 | £0.243 | £12.15 |
| 500 - 950 | £0.203 | £10.15 |
| 1000 + | £0.179 | £8.95 |
*price indicative
- RS Stock No.:
- 103-5146
- Mfr. Part No.:
- TIP120G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Transistor Type | NPN | |
| Maximum Continuous Collector Current | 8 A | |
| Maximum Collector Emitter Voltage | 60 V | |
| Maximum Emitter Base Voltage | 5 V | |
| Package Type | TO-220 | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Transistor Configuration | Single | |
| Number of Elements per Chip | 1 | |
| Minimum DC Current Gain | 1000 | |
| Maximum Collector Base Voltage | 60 V | |
| Maximum Collector Emitter Saturation Voltage | 4 V | |
| Maximum Collector Cut-off Current | 0.5mA | |
| Maximum Operating Temperature | +150 °C | |
| Length | 15.75mm | |
| Height | 4.82mm | |
| Width | 10.28mm | |
| Dimensions | 15.75 x 10.28 x 4.82mm | |
| Minimum Operating Temperature | -65 °C | |
| Maximum Power Dissipation | 65 W | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Transistor Type NPN | ||
Maximum Continuous Collector Current 8 A | ||
Maximum Collector Emitter Voltage 60 V | ||
Maximum Emitter Base Voltage 5 V | ||
Package Type TO-220 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Transistor Configuration Single | ||
Number of Elements per Chip 1 | ||
Minimum DC Current Gain 1000 | ||
Maximum Collector Base Voltage 60 V | ||
Maximum Collector Emitter Saturation Voltage 4 V | ||
Maximum Collector Cut-off Current 0.5mA | ||
Maximum Operating Temperature +150 °C | ||
Length 15.75mm | ||
Height 4.82mm | ||
Width 10.28mm | ||
Dimensions 15.75 x 10.28 x 4.82mm | ||
Minimum Operating Temperature -65 °C | ||
Maximum Power Dissipation 65 W | ||
- COO (Country of Origin):
- CN
NPN Darlington Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
The ON Semiconductor TIP120G is a medium power NPN Darlington bipolar power transistor. It is designed to be used as an output device for general purpose amplifier and low-speed switching applications.
The TIP120G comes in a plastic TO-220AB through-hole package.
• High DC Current Gain
• Low collector-emitter saturation voltage
• Monolithic Construction
• Built-in Base Emitter Shunt Resistor
• Compact package
• NPN Polarity
The TIP120G comes in a plastic TO-220AB through-hole package.
• High DC Current Gain
• Low collector-emitter saturation voltage
• Monolithic Construction
• Built-in Base Emitter Shunt Resistor
• Compact package
• NPN Polarity
