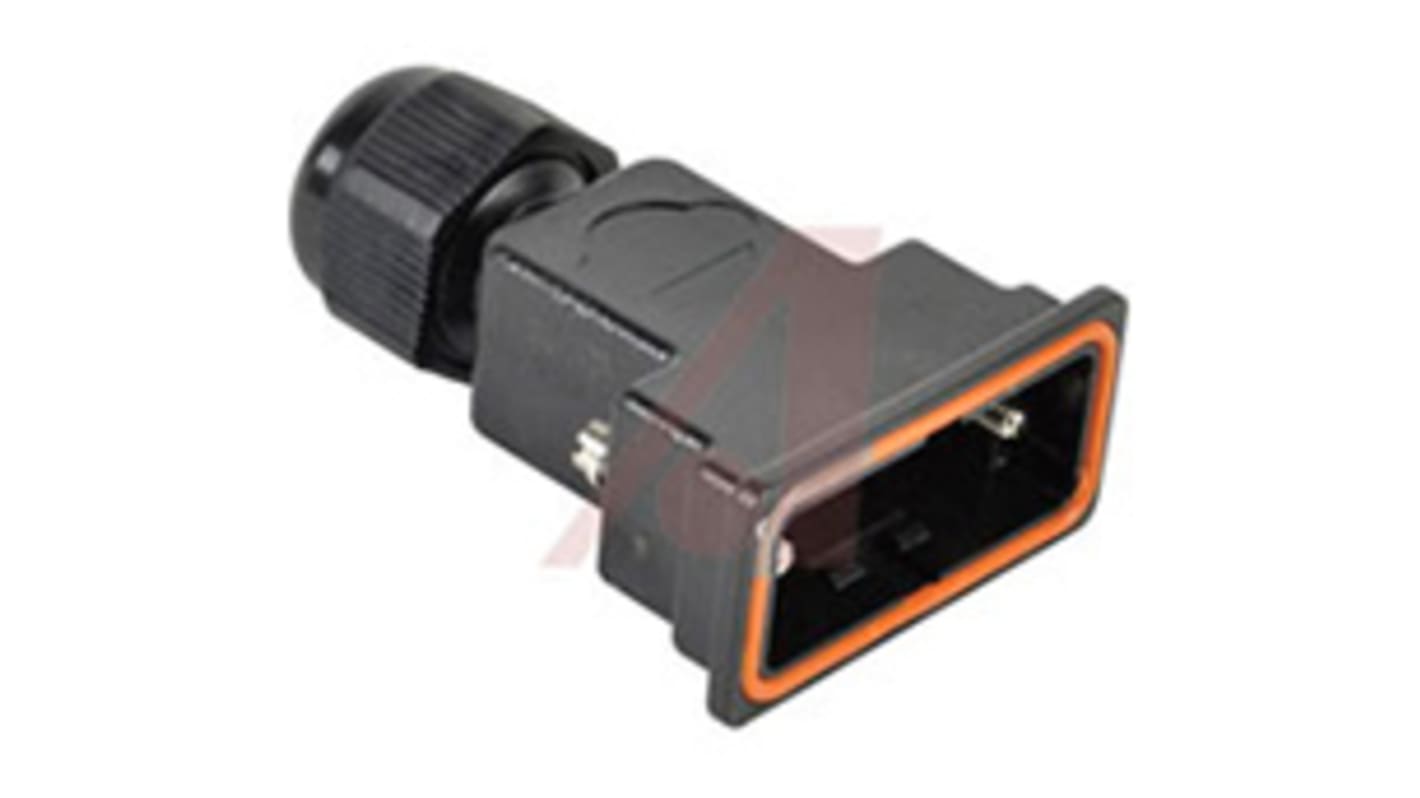

HARTING D-Sub Waterproof 50 Way Cable Mount D-sub Connector
- RS Stock No.:
- 843-6176
- Mfr. Part No.:
- 09670500438
- Brand:
- HARTING
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 843-6176
- Mfr. Part No.:
- 09670500438
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 50 | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| Termination Method | Solder | |
| Housing Material | Thermoplastic | |
| Length | 75.7mm | |
| Width | 52.1mm | |
| Depth | 27.6mm | |
| Series | D-Sub Waterproof | |
| Dimensions | 75.7 x 52.1 x 27.6mm | |
| Contact Size | 5 | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 50 | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Termination Method Solder | ||
Housing Material Thermoplastic | ||
Length 75.7mm | ||
Width 52.1mm | ||
Depth 27.6mm | ||
Series D-Sub Waterproof | ||
Dimensions 75.7 x 52.1 x 27.6mm | ||
Contact Size 5 | ||
- COO (Country of Origin):
- DE
D-Sub IP67 Connectors
The D-Sub IP67 sealed connector series is fully dedicated to water resistant applications and is manufactured to rigorous standards. The main use of this product family is for equipment situated in harsh environments, From indoor to outdoor or wherever connectors need to withstand moisture, Dust and other substances.
Typical applications can be found in industrial machinery, Process control, Mobile equipment and instrumentation.
Right-angled or straight configurations and various number of contacts available.
Typical applications can be found in industrial machinery, Process control, Mobile equipment and instrumentation.
Right-angled or straight configurations and various number of contacts available.
Available with male or female connector types
Available with a rear plastic mounting plate
Plastic and metallized plastic hood versions available
Available with a rear plastic mounting plate
Plastic and metallized plastic hood versions available
