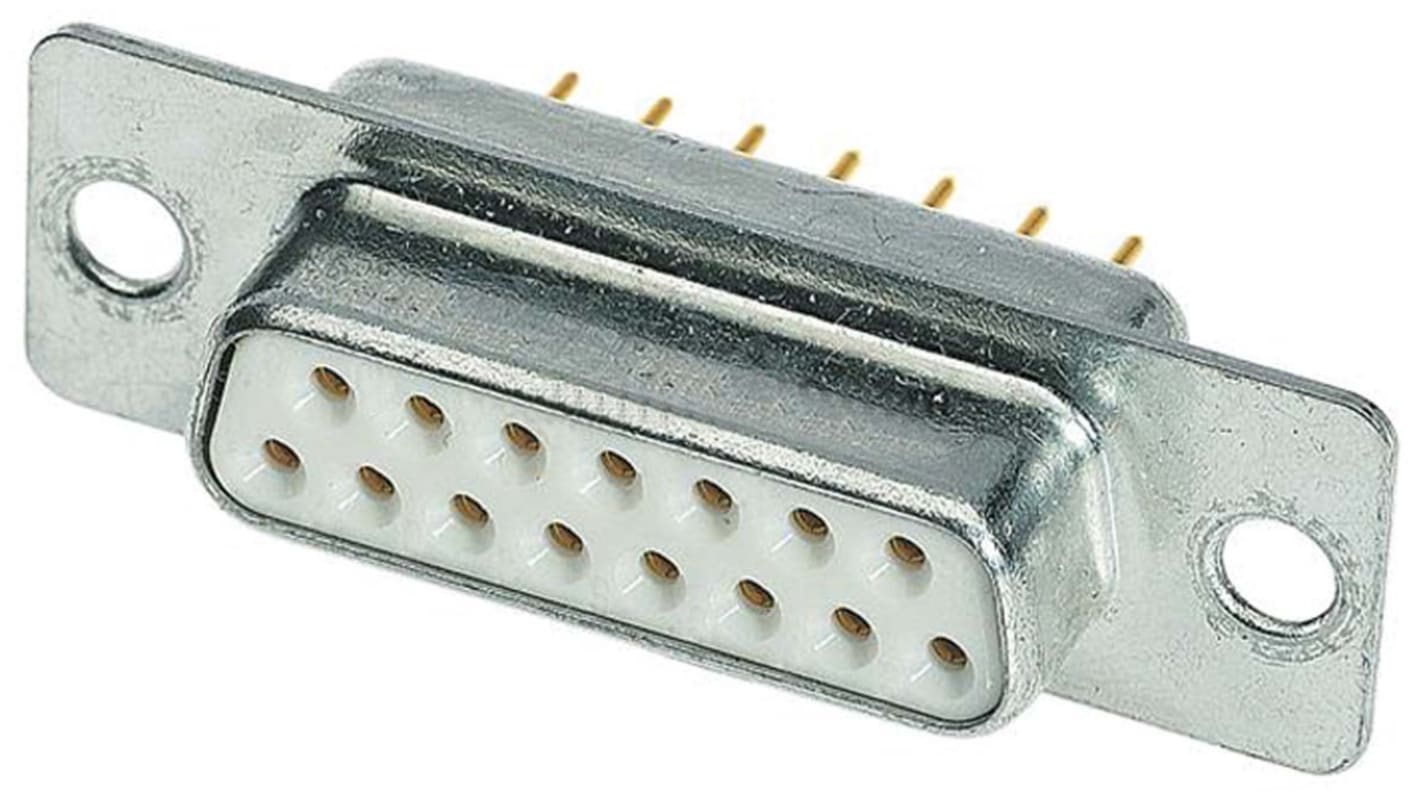

HARTING D-Sub Filter 15 Way Through Hole D-sub Connector Socket, 2.84mm Pitch
- RS Stock No.:
- 843-6129
- Mfr. Part No.:
- 09642127230
- Brand:
- HARTING
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 25)
£24.874
(exc. VAT)
£29.849
(inc. VAT)
- RS Stock No.:
- 843-6129
- Mfr. Part No.:
- 09642127230
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 15 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.84mm | |
| Termination Method | Solder | |
| Current Rating | 7.5A | |
| Voltage Rating | 100.0 V | |
| Length | 39.1mm | |
| Width | 12.5mm | |
| Depth | 17.4mm | |
| Series | D-Sub Filter | |
| Dimensions | 39.1 x 12.5 x 17.4mm | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 15 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.84mm | ||
Termination Method Solder | ||
Current Rating 7.5A | ||
Voltage Rating 100.0 V | ||
Length 39.1mm | ||
Width 12.5mm | ||
Depth 17.4mm | ||
Series D-Sub Filter | ||
Dimensions 39.1 x 12.5 x 17.4mm | ||
- COO (Country of Origin):
- CA
Stamped solder pins, straight with grounding board locks
High density
Metal or Steel shell
Performance levels 3
Flange thread 4-40 UNC
Metal or Steel shell
Performance levels 3
Flange thread 4-40 UNC
Harting D Sub High Density
The high density range exceeds the contact capacity of a standard subminiature D connector by 70%.
Stamped pins
Tinned metal shell (Male connector with dimples)
Tinned metal shell (Male connector with dimples)
