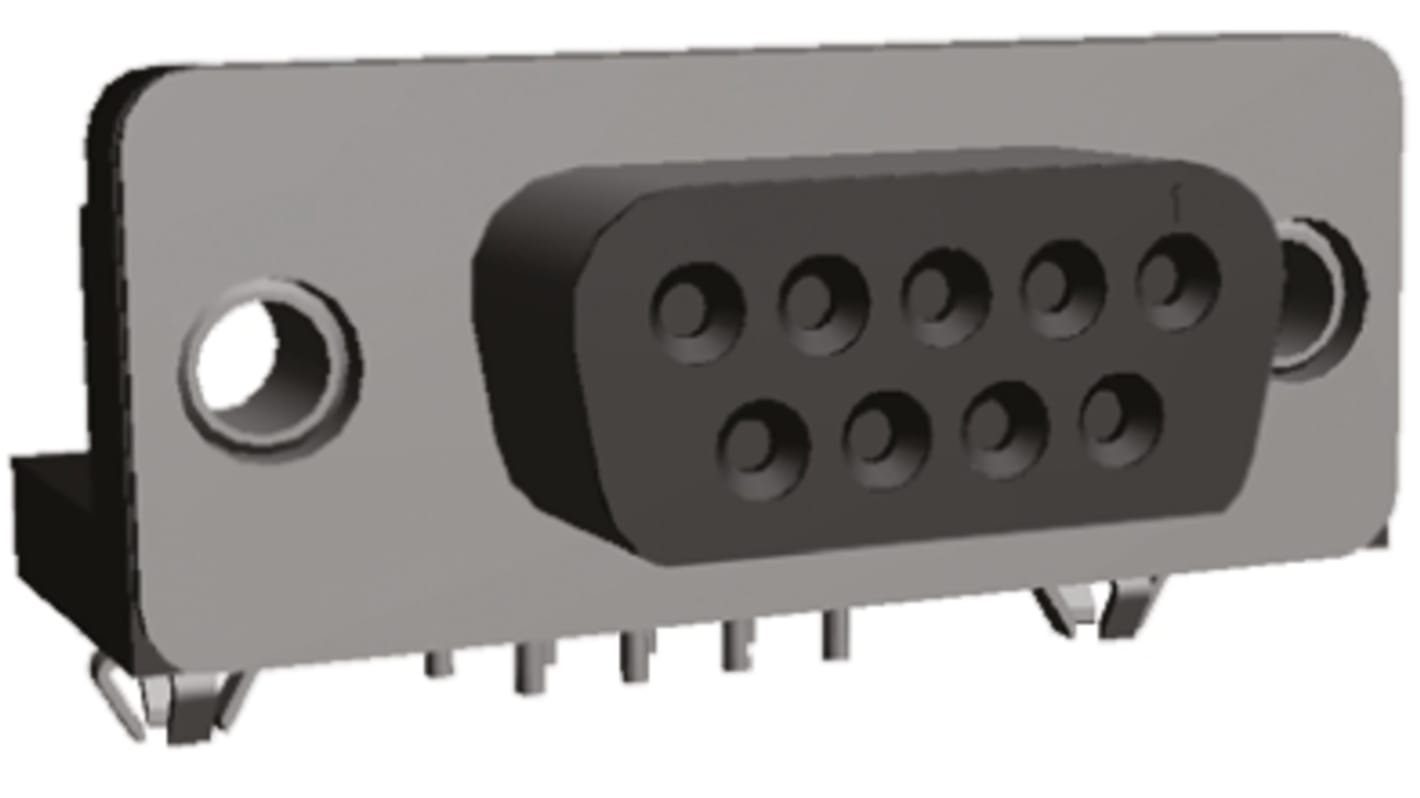

TE Connectivity Amplimite HD-20 9 Way Right Angle Through Hole D-sub Connector Socket, 2.743mm Pitch, with 4-40 UNC
- RS Stock No.:
- 823-6904
- Mfr. Part No.:
- 5788796-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£3.81
(exc. VAT)
£4.57
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.81 |
| 10 - 99 | £3.67 |
| 100 - 249 | £3.08 |
| 250 - 499 | £2.67 |
| 500 + | £2.60 |
*price indicative
- RS Stock No.:
- 823-6904
- Mfr. Part No.:
- 5788796-2
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 9 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Pitch | 2.743mm | |
| Mounting Hardware | 4-40 UNC Threaded Inserts, Boardlocks | |
| Termination Method | Solder | |
| Housing Material | Nylon, Thermoplastic | |
| Length | 30.81mm | |
| Width | 18.8mm | |
| Depth | 12.55mm | |
| Contact Material | Phosphor Bronze | |
| Series | Amplimite HD-20 | |
| Contact Plating | Gold over Nickel | |
| Dimensions | 30.81 x 18.8 x 12.55mm | |
| Series Number | 5788796 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.743mm | ||
Mounting Hardware 4-40 UNC Threaded Inserts, Boardlocks | ||
Termination Method Solder | ||
Housing Material Nylon, Thermoplastic | ||
Length 30.81mm | ||
Width 18.8mm | ||
Depth 12.55mm | ||
Contact Material Phosphor Bronze | ||
Series Amplimite HD-20 | ||
Contact Plating Gold over Nickel | ||
Dimensions 30.81 x 18.8 x 12.55mm | ||
Series Number 5788796 | ||
