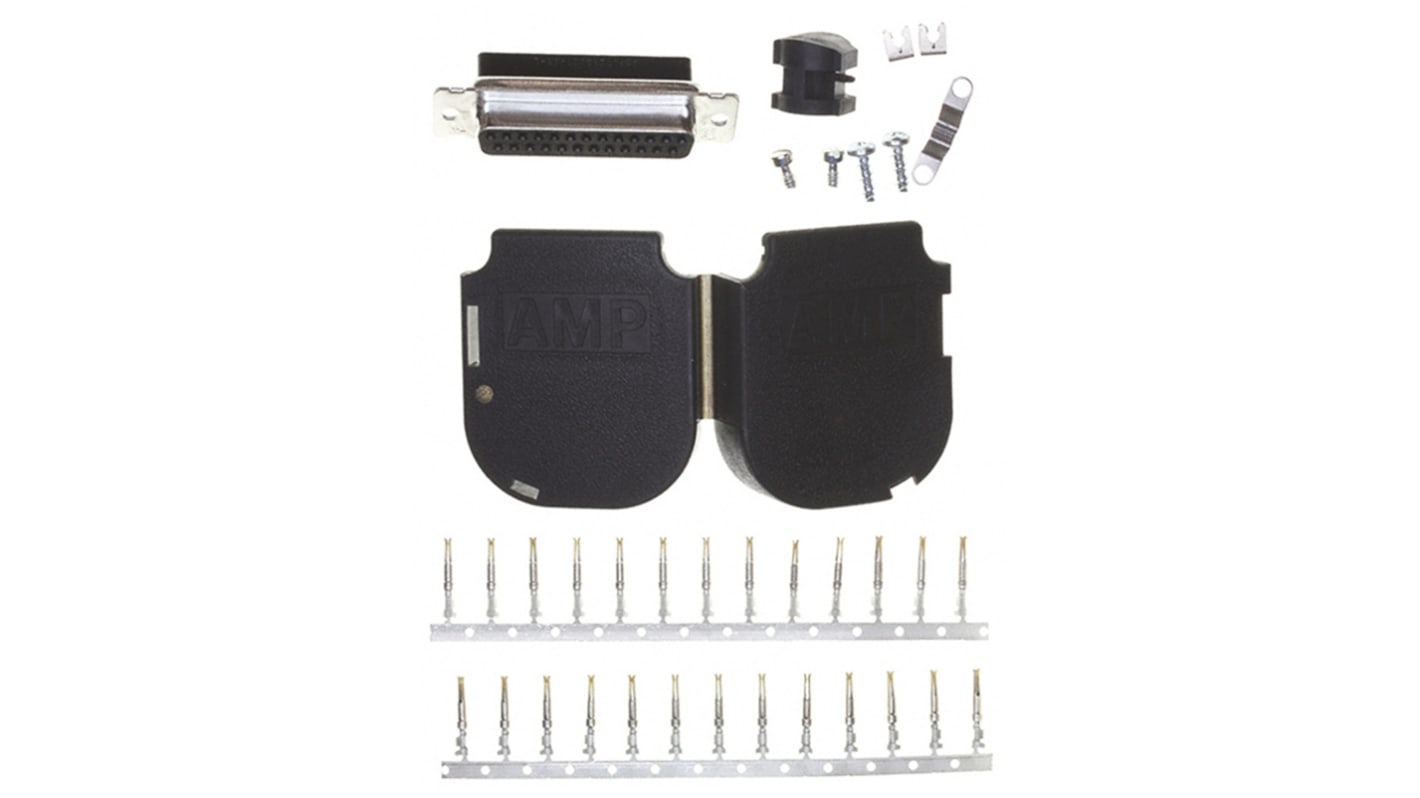

TE Connectivity, HDP-20 Straight Crimp D-sub Connector, Socket, 25 Pin
- RS Stock No.:
- 822-4891
- Mfr. Part No.:
- 1-749812-1
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 822-4891
- Mfr. Part No.:
- 1-749812-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 25 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| Termination Method | Crimp | |
| Current Rating | 2A | |
| Housing Material | Glass Filled Polyester/Glass Filled Nylon | |
| Voltage Rating | 250 V ac | |
| Length | 53.04mm | |
| Width | 17.9mm | |
| Depth | 12.55mm | |
| Series | HDP-20 | |
| Dimensions | 53.04 x 17.9 x 12.55mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55°C | |
| Contact Size | 20 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 25 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Termination Method Crimp | ||
Current Rating 2A | ||
Housing Material Glass Filled Polyester/Glass Filled Nylon | ||
Voltage Rating 250 V ac | ||
Length 53.04mm | ||
Width 17.9mm | ||
Depth 12.55mm | ||
Series HDP-20 | ||
Dimensions 53.04 x 17.9 x 12.55mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
Contact Size 20 | ||
- COO (Country of Origin):
- US
