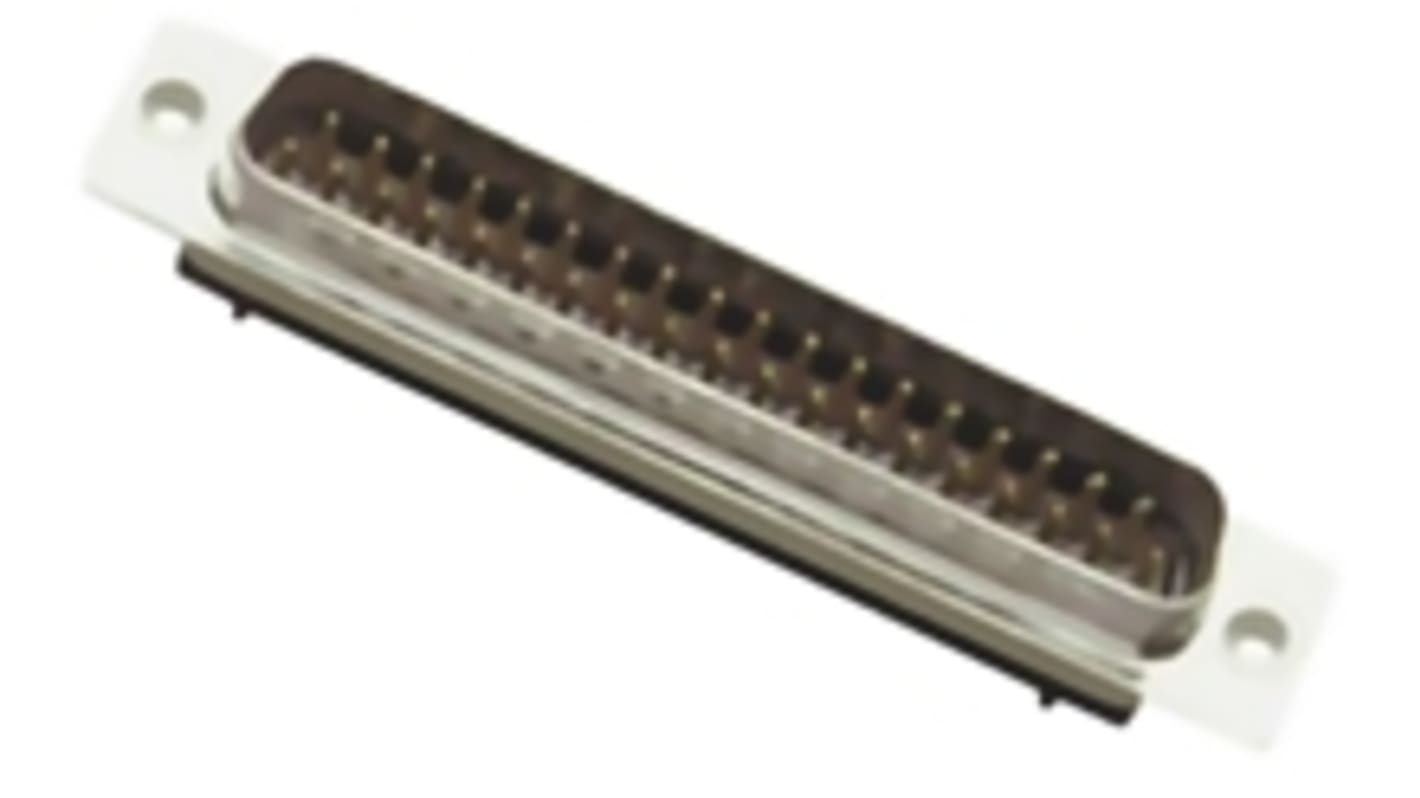

MH Connectors MH105 37 Way Cable Mount D-sub Connector Plug, 2.77mm Pitch
- RS Stock No.:
- 821-2872
- Mfr. Part No.:
- MH10570
- Brand:
- MH Connectors
Image representative of range
Subtotal (1 unit)*
£16.89
(exc. VAT)
£20.27
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.89 |
*price indicative
- RS Stock No.:
- 821-2872
- Mfr. Part No.:
- MH10570
- Brand:
- MH Connectors
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MH Connectors | |
| Number of Contacts | 37 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| Pitch | 2.77mm | |
| Termination Method | IDC | |
| Current Rating | 1.5A | |
| Housing Material | Steel | |
| Voltage Rating | 1.0 kV | |
| Length | 69.36mm | |
| Width | 12.55mm | |
| Depth | 15.5mm | |
| Contact Plating | Gold, Tin | |
| Dimensions | 69.36 x 12.55 x 15.5mm | |
| Contact Material | Copper Alloy | |
| Series | MH105 | |
| Minimum Operating Temperature | -55.0°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand MH Connectors | ||
Number of Contacts 37 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Pitch 2.77mm | ||
Termination Method IDC | ||
Current Rating 1.5A | ||
Housing Material Steel | ||
Voltage Rating 1.0 kV | ||
Length 69.36mm | ||
Width 12.55mm | ||
Depth 15.5mm | ||
Contact Plating Gold, Tin | ||
Dimensions 69.36 x 12.55 x 15.5mm | ||
Contact Material Copper Alloy | ||
Series MH105 | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +125°C | ||
