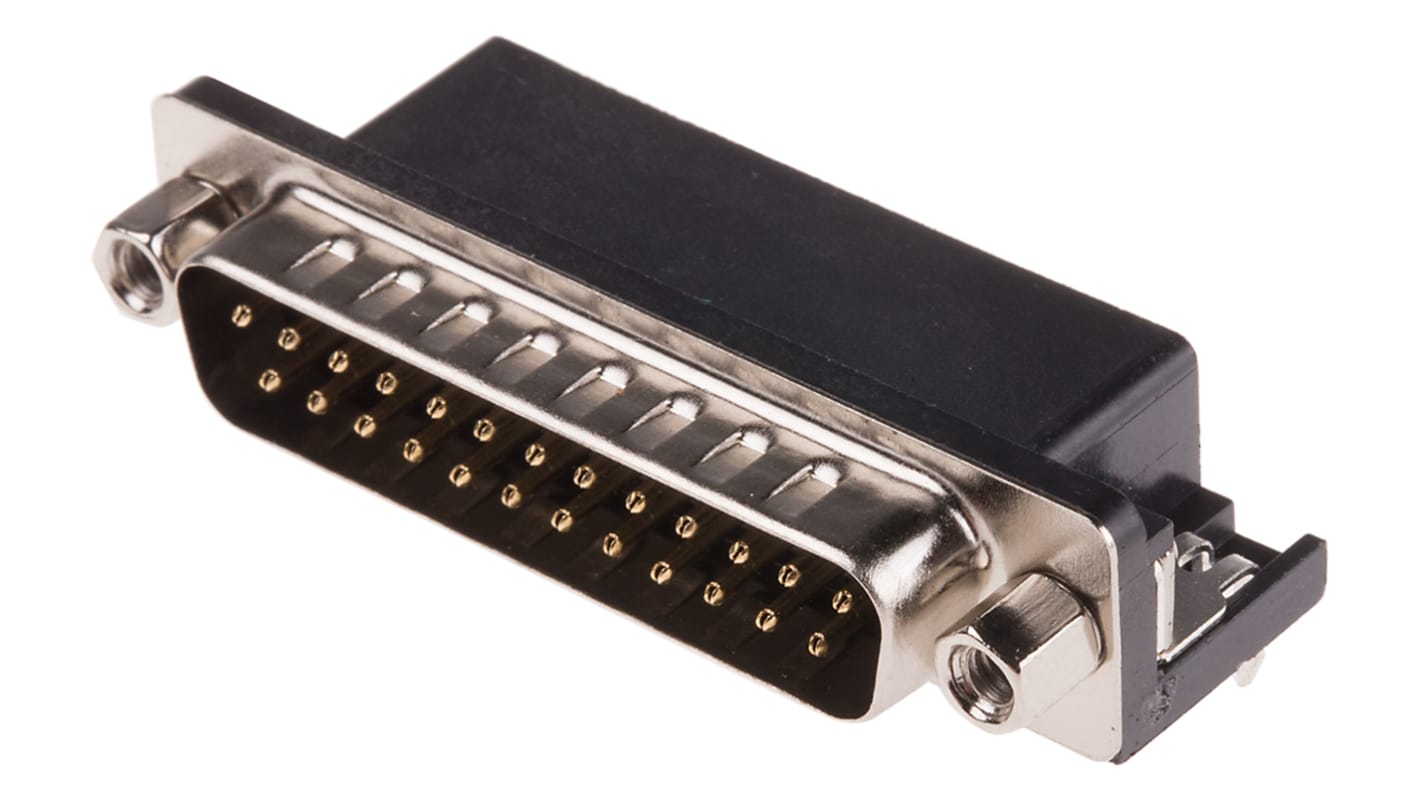

RS PRO 25 Way Right Angle Through Hole D-sub Connector Plug, 2.77mm Pitch, with 4-40 UNC Screwlocks
- RS Stock No.:
- 811-7125
- Brand:
- RS PRO
102 In stock - FREE next working day delivery available
106 available from Europe for delivery within 2 working day(s).
Price Each
£5.17
(exc. VAT)
£6.20
(inc. VAT)
Units | Per unit |
---|---|
1 - 24 | £5.17 |
25 - 99 | £4.31 |
100 - 499 | £3.79 |
500 - 999 | £3.17 |
1000 + | £2.77 |
- RS Stock No.:
- 811-7125
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
PCB D-Sub Connectors
A range of Right Angle PCB mount D-Sub connectors with: Nickel plated steel shells, Black Glass-Filled Thermoplastic PBT UL 94V-0 insert, Brass Gold flash plated stamped contacts, Brass Tin plated grounding hook boardlocks, Brass Nickel plated M3 threaded screwlocks installed and 9.4 mm footprint.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 25 |
Gender | Male |
Body Orientation | Right Angle |
Mounting Type | Through Hole |
Pitch | 2.77mm |
Termination Method | Solder |
Mounting Hardware | 4-40 UNC Screwlocks |
Current Rating | 3A |
Housing Material | Glass Fibre Reinforced PBT |
Voltage Rating | 250.0 V |
Length | 53.05mm |
Width | 20.9mm |
Depth | 12.55mm |
Series | 107 |
Contact Material | Brass |
Contact Plating | Gold |
Dimensions | 53.05 x 20.9 x 12.55mm |
Series Number | 107 |
