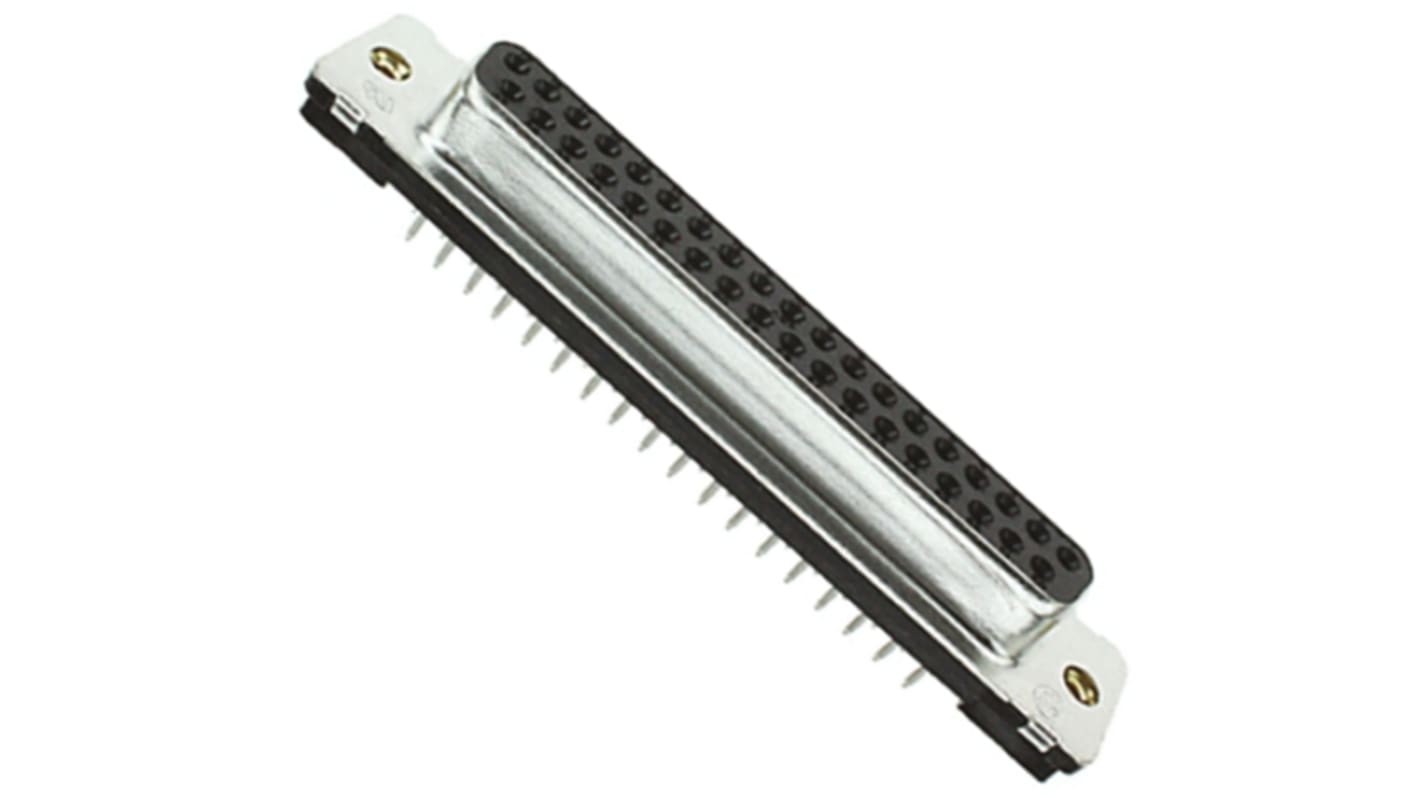

TE Connectivity Amplimite HD-20 37 Way Through Hole D-sub Connector Socket, 2.77mm Pitch, with 4-40 UNC, Threaded Insert
- RS Stock No.:
- 798-1164
- Mfr. Part No.:
- 5747301-7
- Brand:
- TE Connectivity
- RS Stock No.:
- 798-1164
- Mfr. Part No.:
- 5747301-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 37 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.77mm | |
| Termination Method | Solder | |
| Mounting Hardware | 4-40 UNC, Threaded Insert | |
| Housing Material | Thermoplastic | |
| Voltage Rating | 250.0 V | |
| Length | 69.39mm | |
| Width | 12.16mm | |
| Depth | 12.55mm | |
| Contact Plating | Gold | |
| Dimensions | 69.39 x 12.16 x 12.55mm | |
| Series | Amplimite HD-20 | |
| Contact Material | Phosphor Bronze | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55.0°C | |
| Contact Size | 20 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 37 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.77mm | ||
Termination Method Solder | ||
Mounting Hardware 4-40 UNC, Threaded Insert | ||
Housing Material Thermoplastic | ||
Voltage Rating 250.0 V | ||
Length 69.39mm | ||
Width 12.16mm | ||
Depth 12.55mm | ||
Contact Plating Gold | ||
Dimensions 69.39 x 12.16 x 12.55mm | ||
Series Amplimite HD-20 | ||
Contact Material Phosphor Bronze | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55.0°C | ||
Contact Size 20 | ||
AMPLIMITE D-sub Connector, HD-20 Series, Front Metal Shell, PCB Mount, Straight Post
AMPLIMITE HD-20 series straight posted PCB mount d-sub connectors with tin plated steel front shells, 94V-0 black thermoplastic housings and preloaded with size 20 DF posted brass pin contacts or phosphor bronze socket contacts with 0.00076 gold plating or gold flash and 3.18mm or 4.32mm post lengths. These AMPLIMITE HD-20 PCB mount straight post d-sub connectors are available with a variety of PCB retention types including brass threaded inserts and zinc screwlocks.
TE Connectivity AMPLIMITE D-Subminiature Connectors
