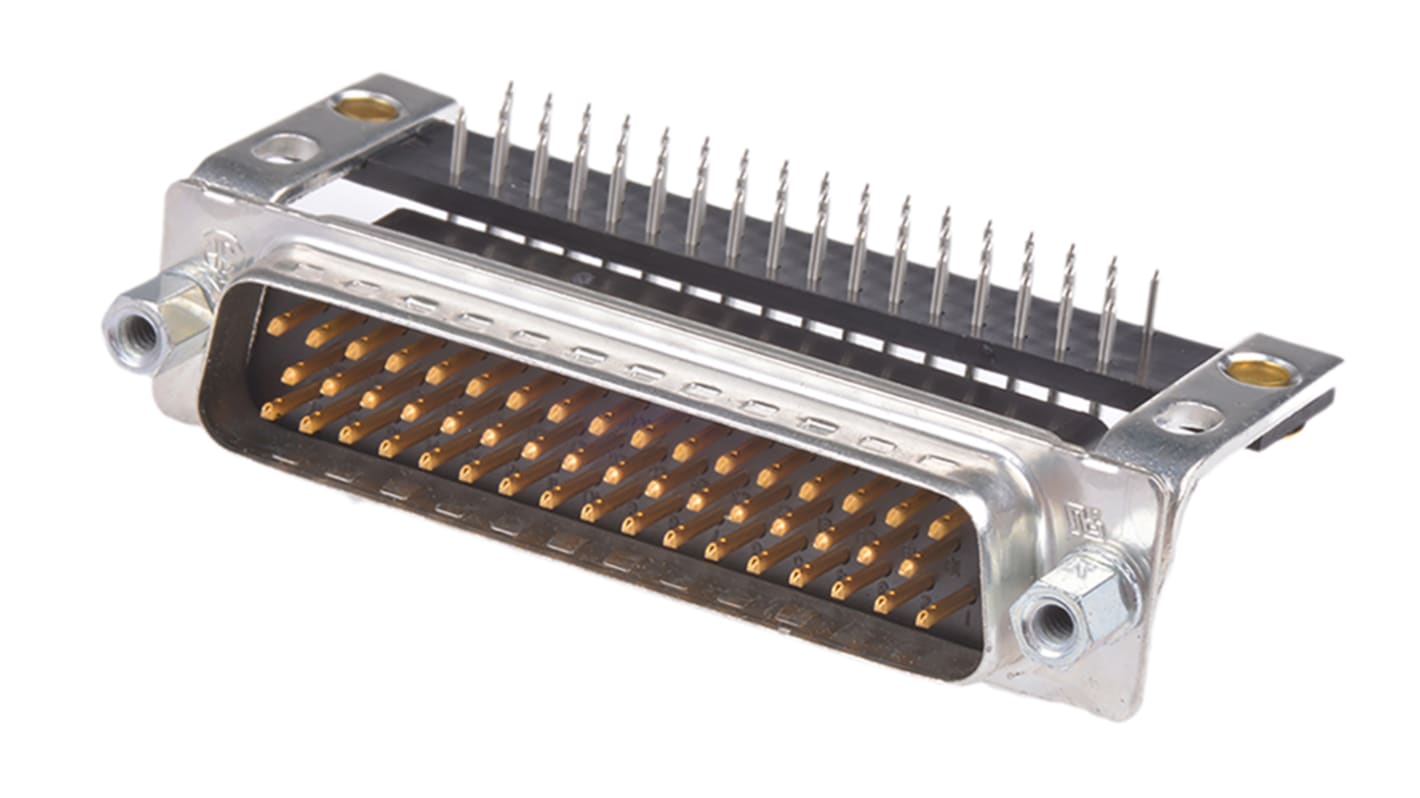

TE Connectivity Amplimite HD-20 50 Way Right Angle Through Hole D-sub Connector Plug, 2.768mm Pitch, with 4-40 UNC,
- RS Stock No.:
- 795-2289P
- Mfr. Part No.:
- 5747497-4
- Brand:
- TE Connectivity
Bulk discount available
Subtotal 10 units (supplied in a tube)*
£205.20
(exc. VAT)
£246.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 - 24 | £20.52 |
| 25 - 49 | £19.96 |
| 50 + | £19.43 |
*price indicative
- RS Stock No.:
- 795-2289P
- Mfr. Part No.:
- 5747497-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 50 | |
| Gender | Male | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Pitch | 2.768mm | |
| Termination Method | Solder | |
| Mounting Hardware | 4-40 UNC, Female Screw Lock | |
| Housing Material | Thermoplastic | |
| Length | 2.635in | |
| Width | 0.605in | |
| Depth | 1.149in | |
| Series | Amplimite HD-20 | |
| Dimensions | 2.635 x 0.605 x 1.149in | |
| Contact Material | Brass | |
| Contact Plating | Tin over Nickel | |
| Contact Size | 20 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 50 | ||
Gender Male | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.768mm | ||
Termination Method Solder | ||
Mounting Hardware 4-40 UNC, Female Screw Lock | ||
Housing Material Thermoplastic | ||
Length 2.635in | ||
Width 0.605in | ||
Depth 1.149in | ||
Series Amplimite HD-20 | ||
Dimensions 2.635 x 0.605 x 1.149in | ||
Contact Material Brass | ||
Contact Plating Tin over Nickel | ||
Contact Size 20 | ||
- COO (Country of Origin):
- MX
AMPLIMITE, HD-20 Full Metal-Shell Right-Angle Posted, 545 PCB Mount D-Sub Connectors
AMPLIMITE, HD-20 right-angle posted, 545 (13.84 mm footprint) PCB mount D-sub connectors with a full metal tin plated steel shell. These AMPLIMITE HD-20 PCB mount plug and socket connectors are available with standard mounting screws or 4-40 female screwlocks for connection to mating connectors, 0.00076μm or gold flash on mating contacts (Please refer to datasheet for details). The d-sub plug connectors have grounding indents.
TE Connectivity AMPLIMITE D-Subminiature Connectors
