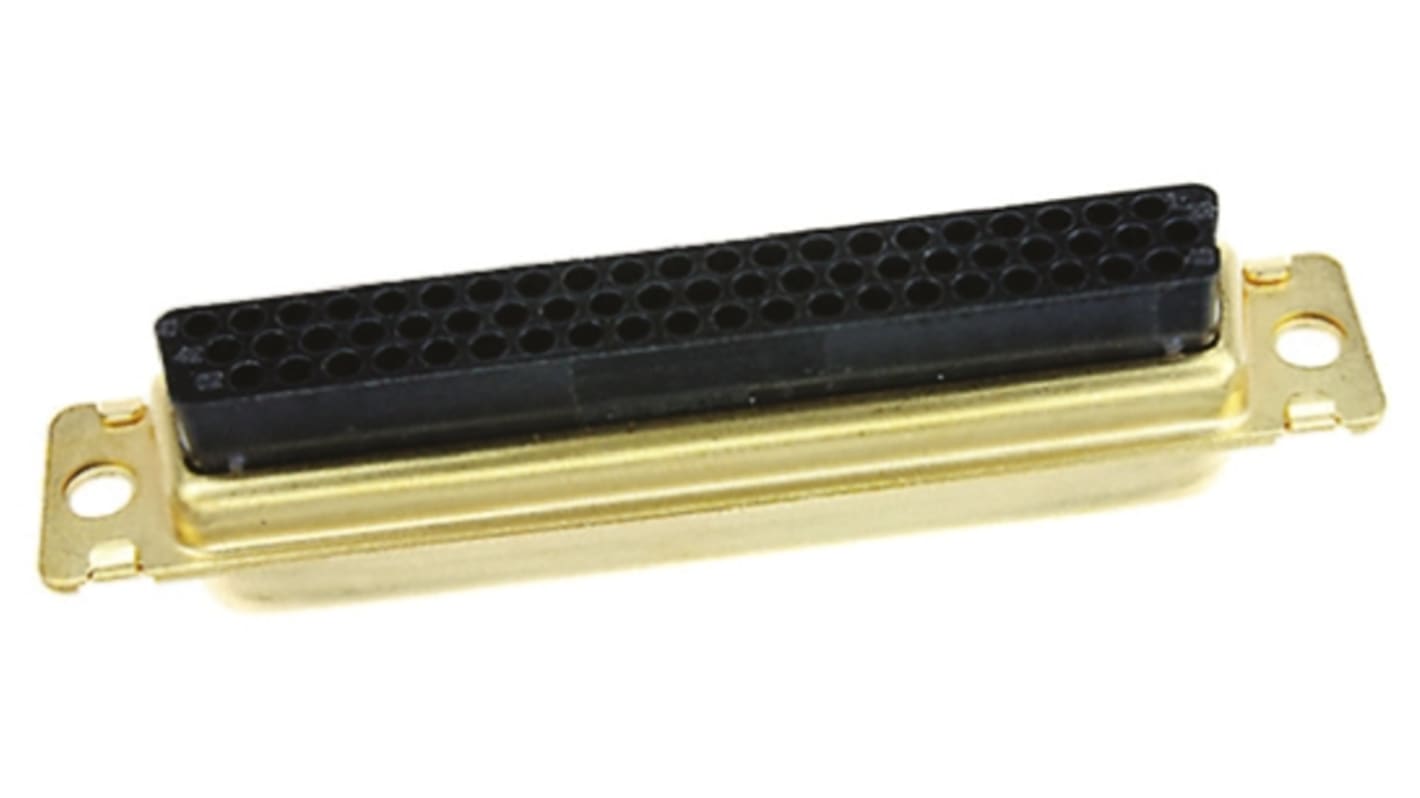

TE Connectivity Amplimite 90 62 Way Cable Mount D-sub Connector Plug
- RS Stock No.:
- 782-6124
- Mfr. Part No.:
- 206502-4
- Brand:
- TE Connectivity
- RS Stock No.:
- 782-6124
- Mfr. Part No.:
- 206502-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 62 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| D Connector Type | High Density D-Sub | |
| Termination Method | Crimp | |
| Housing Material | Steel | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Series | Amplimite 90 | |
| Contact Size | 4 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 62 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
D Connector Type High Density D-Sub | ||
Termination Method Crimp | ||
Housing Material Steel | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Series Amplimite 90 | ||
Contact Size 4 | ||
- COO (Country of Origin):
- US
AMPLIMITE D-Sub connector, Series 90, Military Spec, MIL-C-24308
AMPLIMITE series 90 high density MIlitary Specification cable mount d-sub plug and receptacle connectors conforming to the military specification of MIL-C-24308 ideal for use in military equipment, ground support devices, computer peripheral equipment, modems and industrial instrumentation. These AMPLIMITE series 90 Mil Spec d-sub cable connectors are available with cadmium plated steel shells (part numbers 2045xx-1) or zinc plated steel shells (part numbers 175782x-1) whilst stock number 718-3865 has a gold plated brass shell. All versions of these MIL Spec d-sub connectors have black PPS GST-40F inserts as per MIL-M-24519, 3.05mm mounting holes and retention clips. The size 22 contacts for these series 90 d-sub military Mil Spec cable connectors are not supplied and must be ordered separately, see stock number 718-4004 for crimp pin contacts and stock number 718-4001 for crimp socket contacts. The series 90 military spec d-sub cable connectors will mate with any other connector that has the same insert arrangement.
TE Connectivity AMPLIMITE D-Subminiature Connectors
