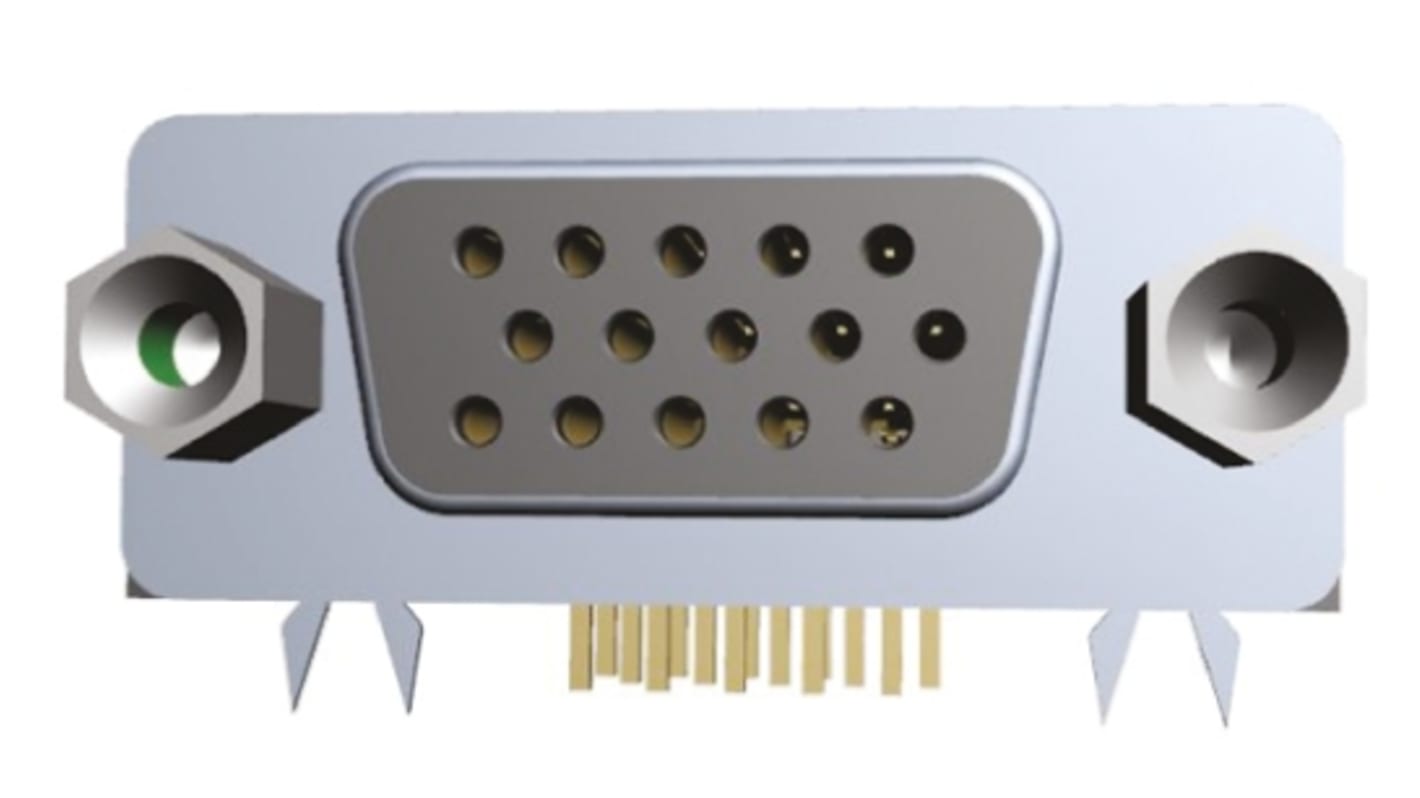

Wurth Elektronik 618 15 Way Right Angle Through Hole D-sub Connector Socket, 2.54mm Pitch
- RS Stock No.:
- 771-8341
- Distrelec Article No.:
- 303-87-625
- Mfr. Part No.:
- 618015330923
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£3.12
(exc. VAT)
£3.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 136 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 130 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.12 |
| 10 - 24 | £2.73 |
| 25 + | £2.58 |
*price indicative
- RS Stock No.:
- 771-8341
- Distrelec Article No.:
- 303-87-625
- Mfr. Part No.:
- 618015330923
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Number of Contacts | 15 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Pitch | 2.54 mm, 5.08mm | |
| D Connector Type | High Density D-Sub | |
| Termination Method | Solder | |
| Current Rating | 3A | |
| Housing Material | Steel | |
| Voltage Rating | 125.0 V | |
| Length | 30.8mm | |
| Width | 12.5mm | |
| Depth | 21.1mm | |
| Series | 618 | |
| Dimensions | 30.8 x 12.5 x 21.1mm | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40.0°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Number of Contacts 15 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.54 mm, 5.08mm | ||
D Connector Type High Density D-Sub | ||
Termination Method Solder | ||
Current Rating 3A | ||
Housing Material Steel | ||
Voltage Rating 125.0 V | ||
Length 30.8mm | ||
Width 12.5mm | ||
Depth 21.1mm | ||
Series 618 | ||
Dimensions 30.8 x 12.5 x 21.1mm | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40.0°C | ||
Maximum Operating Temperature +85°C | ||
WR-DSUB High Density D-Sub PCB Mount Socket Connectors with Screw Locks
WR-DSUB series High Density PCB, right angle through hole mount D-sub socket connectors with UNC 4-40 hex screw locks. These d-sub PCB mount HD socket connectors have a black UL94-V0 PBT insulator with a steel tin plated shell and board locks. The contacts for these WR-DSUB series d-sub PCB mount angled HD socket connectors are made from copper alloy with gold plating.
Wurth High Density D-Sub Connectors
A range of Wurth High Density D-Sub connectors.
