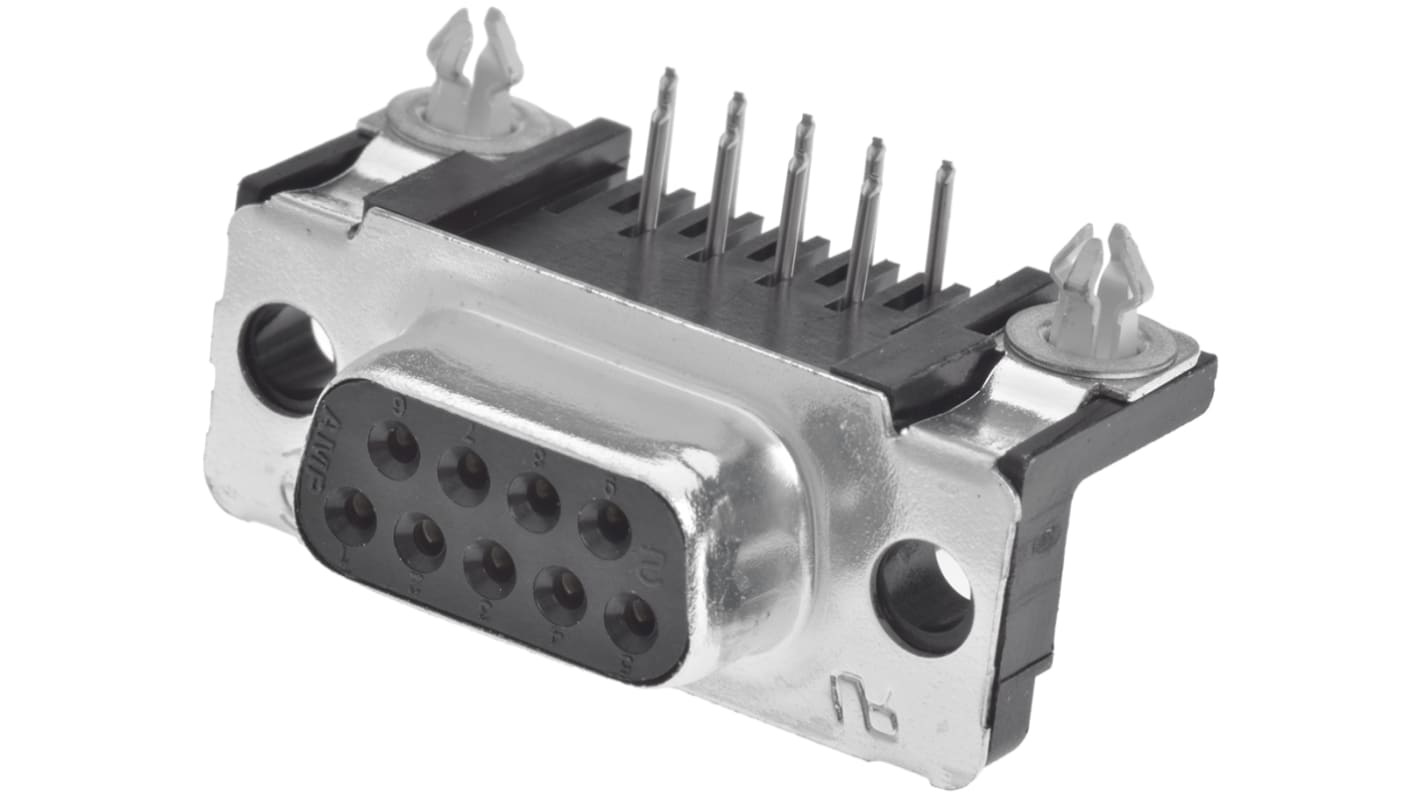

TE Connectivity Amplimite HD-20 9 Way Right Angle Through Hole D-sub Connector Socket, 7.01mm Pitch, with Boardlocks
- RS Stock No.:
- 756-1082
- Mfr. Part No.:
- 5747844-2
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 756-1082
- Mfr. Part No.:
- 5747844-2
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Number of Contacts | 9 | |
Gender | Female | |
Body Orientation | Right Angle | |
Mounting Type | Through Hole | |
Pitch | 7.01mm | |
Termination Method | Solder | |
Mounting Hardware | Boardlocks | |
Housing Material | Thermoplastic | |
Voltage Rating | 250.0 V | |
Length | 1.213in | |
Width | 0.494in | |
Depth | 0.243in | |
Dimensions | 1.213 x 0.494 x 0.243in | |
Contact Material | Phosphor Bronze | |
Series | Amplimite HD-20 | |
Contact Plating | Gold over Nickel | |
Minimum Operating Temperature | -55.0°C | |
Maximum Operating Temperature | +105°C | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 7.01mm | ||
Termination Method Solder | ||
Mounting Hardware Boardlocks | ||
Housing Material Thermoplastic | ||
Voltage Rating 250.0 V | ||
Length 1.213in | ||
Width 0.494in | ||
Depth 0.243in | ||
Dimensions 1.213 x 0.494 x 0.243in | ||
Contact Material Phosphor Bronze | ||
Series Amplimite HD-20 | ||
Contact Plating Gold over Nickel | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +105°C | ||
