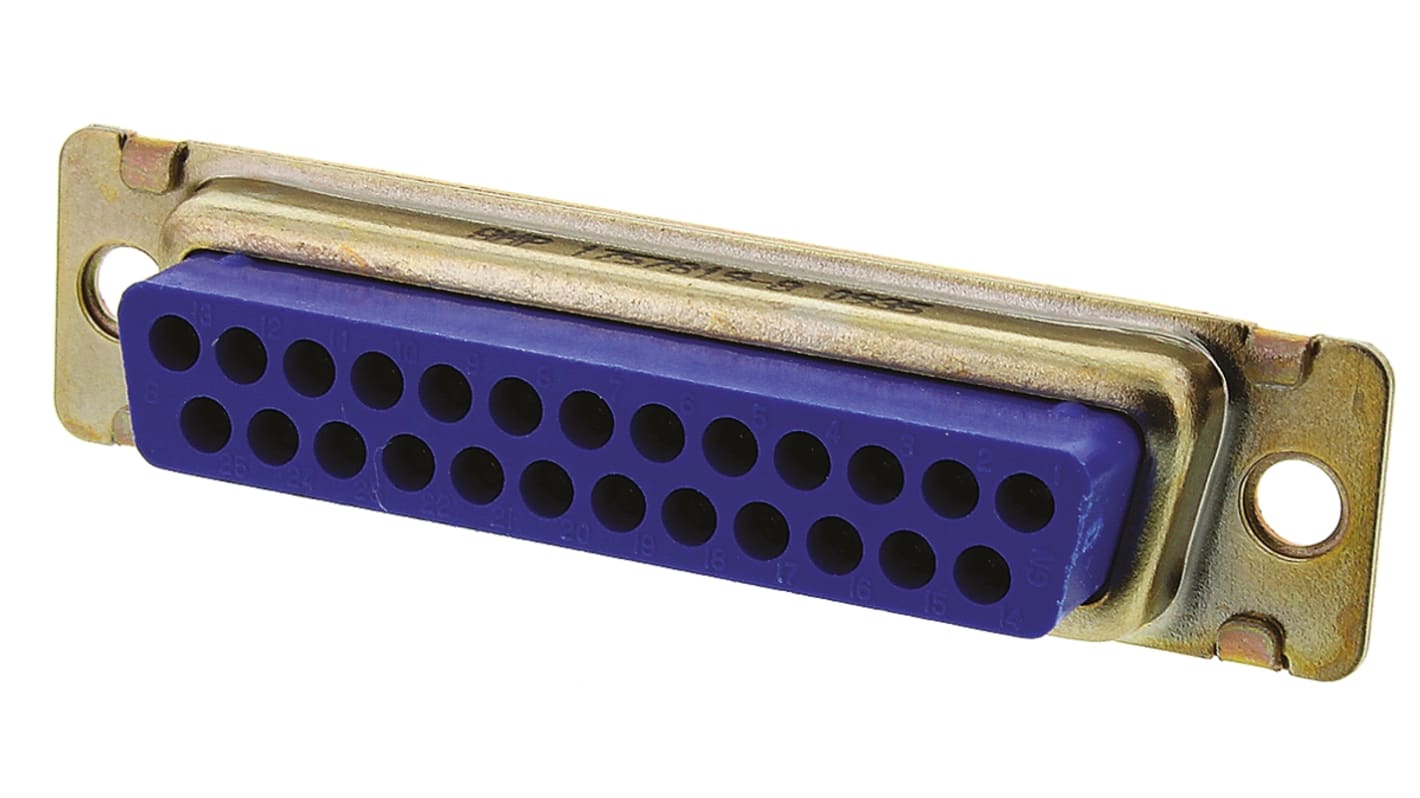

TE Connectivity Amplimite 109 25 Way Cable Mount D-sub Connector Plug
- RS Stock No.:
- 743-5829
- Mfr. Part No.:
- 1757819-3
- Brand:
- TE Connectivity
33 In stock - FREE next working day delivery available
6 available from Europe for delivery within 1 working day(s).
Added
Price Each
£18.26
(exc. VAT)
£21.91
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £18.26 |
| 25 - 74 | £14.61 |
| 75 - 199 | £13.88 |
| 200 - 399 | £13.15 |
| 400 + | £12.05 |
- RS Stock No.:
- 743-5829
- Mfr. Part No.:
- 1757819-3
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
AMPLIMITE D-Sub Connector, Series 109, Military Spec, MIL-C-24308
AMPLIMITE series 109 standard density MIlitary Specification cable mount d-sub plug and receptacle connectors conforming to military specification of MIL-C-24308 ideal for use in military equipment, ground support devices, computer peripheral equipment, modems and industrial instrumentation. These AMPLIMITE series 109 Mil Spec d-sub cable connectors have a zinc plated steel shells, 3.05mm mounting holes and black polyester inserts as per MIL-M-24519.
The size 20 contacts required or supplied, see table, for these series 109 d-sub military Mil Spec cable connectors are stock number 680-9210 for crimp pin contacts and stock number 680-9222 for crimp socket contacts.
The series 109 military spec cable connectors will mate with any other connector that has the same insert arrangement.
The size 20 contacts required or supplied, see table, for these series 109 d-sub military Mil Spec cable connectors are stock number 680-9210 for crimp pin contacts and stock number 680-9222 for crimp socket contacts.
The series 109 military spec cable connectors will mate with any other connector that has the same insert arrangement.
TE Connectivity AMPLIMITE D-Subminiature Connectors
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Termination Method | Crimp |
| Housing Material | Steel |
| Length | 53.42mm |
| Width | 9.52mm |
| Depth | 12.93mm |
| Dimensions | 53.42 x 9.52 x 12.93mm |
| Series | Amplimite 109 |
| Series Number | M24308/4-261Z |
| Contact Size | 20 |
