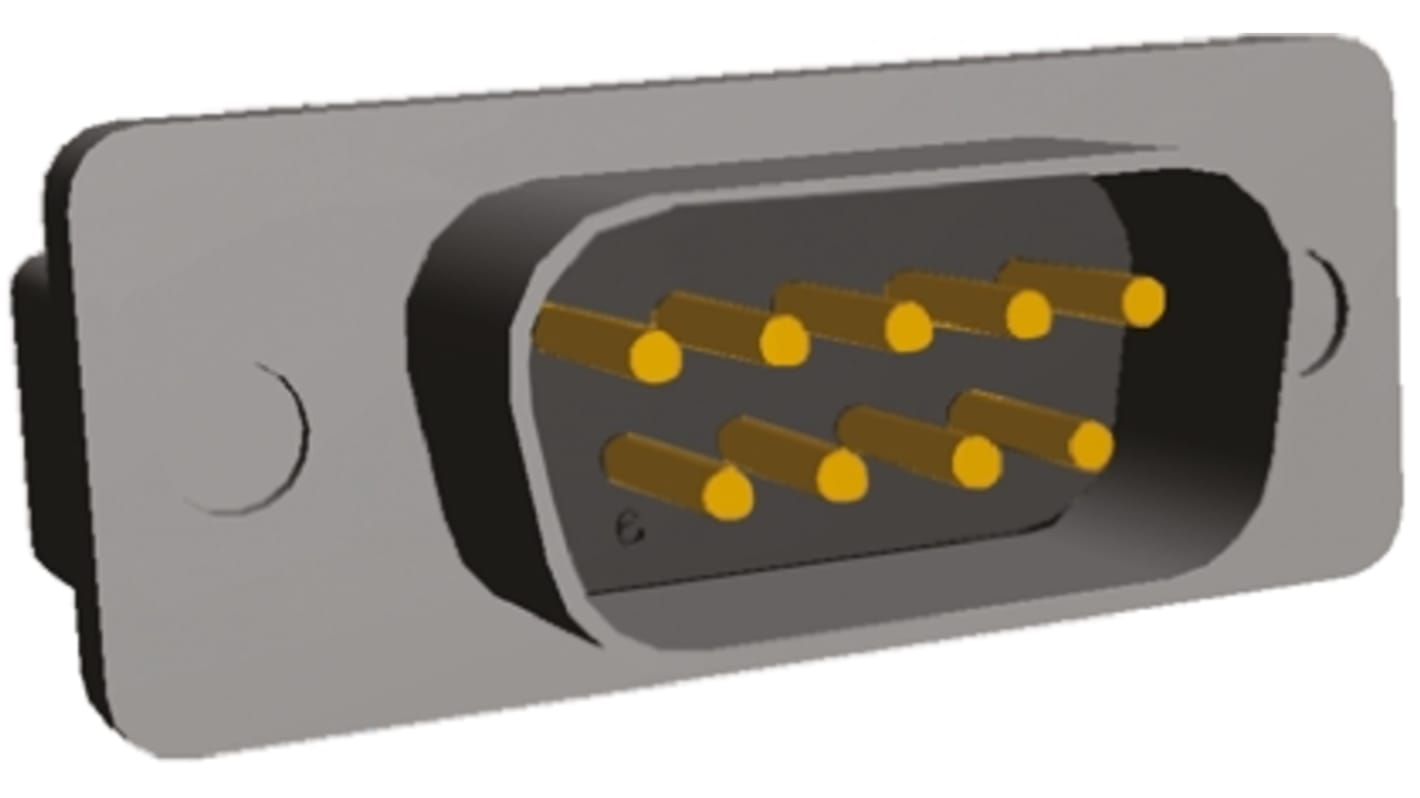

TE Connectivity Amplimite HD-20 9 Way Through Hole D-sub Connector Plug, with 4-40 UNC PCB Retention Insert
- RS Stock No.:
- 739-0757
- Mfr. Part No.:
- 2-5748003-0
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 739-0757
- Mfr. Part No.:
- 2-5748003-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 9 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Mounting Hardware | 4-40 UNC PCB Retention Insert | |
| Termination Method | Solder | |
| Housing Material | Thermoplastic | |
| Length | 1.213in | |
| Width | 0.236in | |
| Depth | 0.494in | |
| Dimensions | 1.213 x 0.236 x 0.494in | |
| Series | Amplimite HD-20 | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 9 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Mounting Hardware 4-40 UNC PCB Retention Insert | ||
Termination Method Solder | ||
Housing Material Thermoplastic | ||
Length 1.213in | ||
Width 0.236in | ||
Depth 0.494in | ||
Dimensions 1.213 x 0.236 x 0.494in | ||
Series Amplimite HD-20 | ||
Contact Plating Gold | ||
Contact Material Brass | ||
AMPLIMITE D-sub Connector, HD-20 Series, Front Metal Shell, PCB Mount, Straight Post
AMPLIMITE HD-20 series straight posted PCB mount d-sub connectors with tin plated steel front shells, 94V-0 black thermoplastic housings and preloaded with size 20 DF posted brass pin contacts or phosphor bronze socket contacts with 0.00076 gold plating or gold flash and 3.18mm or 4.32mm post lengths. These AMPLIMITE HD-20 PCB mount straight post d-sub connectors are available with a variety of PCB retention types including brass threaded inserts and zinc screwlocks.
TE Connectivity AMPLIMITE D-Subminiature Connectors
