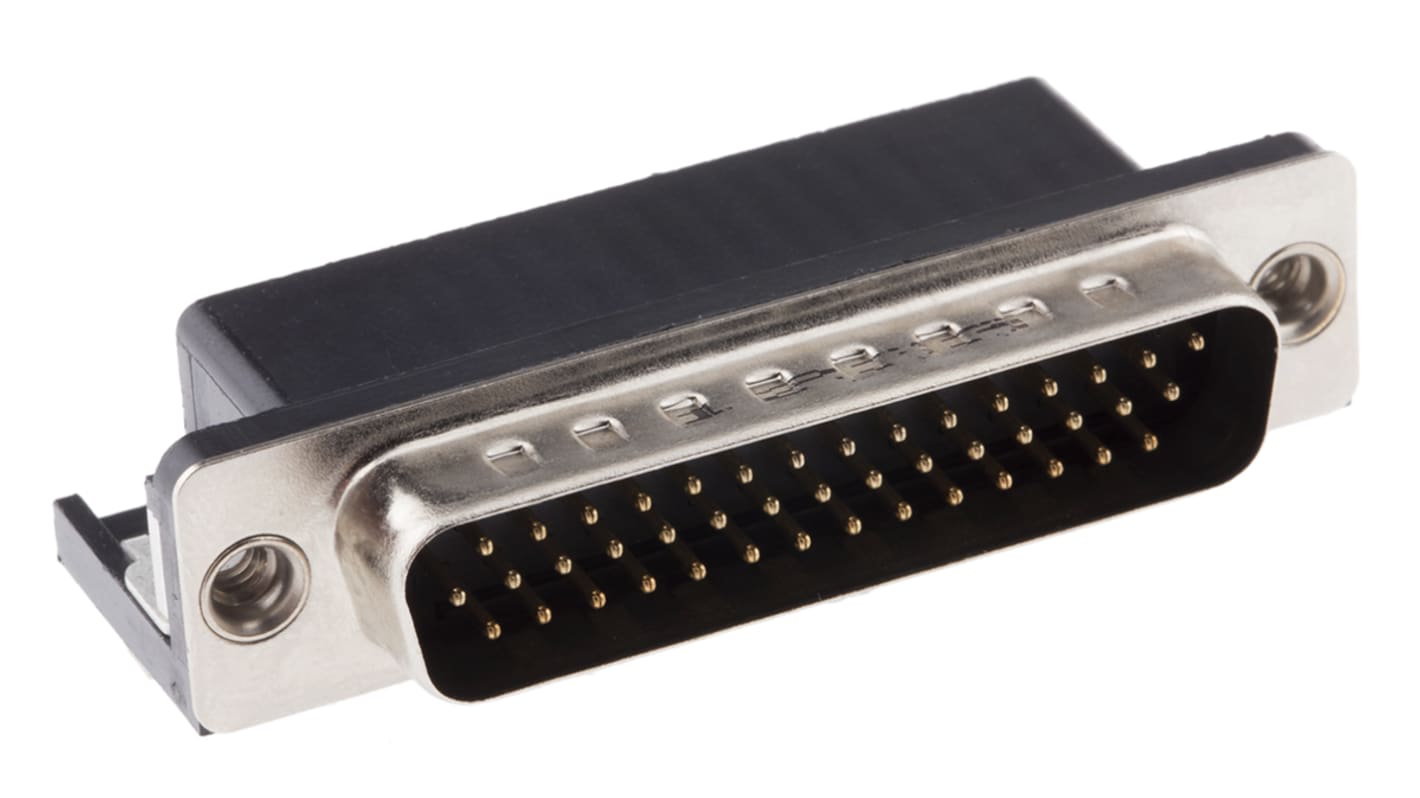

Amphenol ICC 10090926 44 Way Right Angle Through Hole D-sub Connector Plug, 2.29mm Pitch
- RS Stock No.:
- 736-1529
- Mfr. Part No.:
- 10090926-P444XLF
- Brand:
- Amphenol ICC
Bulk discount available
Subtotal (1 unit)*
£4.39
(exc. VAT)
£5.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 244 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £4.39 |
25 - 74 | £4.24 |
75 - 199 | £4.17 |
200 + | £3.98 |
*price indicative
- RS Stock No.:
- 736-1529
- Mfr. Part No.:
- 10090926-P444XLF
- Brand:
- Amphenol ICC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol ICC | |
Number of Contacts | 44 | |
Gender | Male | |
Body Orientation | Right Angle | |
Mounting Type | Through Hole | |
Pitch | 2.29mm | |
Termination Method | Solder | |
Current Rating | 2.5A | |
Housing Material | Thermoplastic | |
Voltage Rating | 250.0 V | |
Length | 53.04mm | |
Width | 16.2mm | |
Depth | 12.55mm | |
Series | 10090926 | |
Contact Material | Copper Alloy | |
Dimensions | 53.04 x 16.2 x 12.55mm | |
Contact Plating | Gold over Nickel | |
Minimum Operating Temperature | -55.0°C | |
Maximum Operating Temperature | +105°C | |
Select all | ||
---|---|---|
Brand Amphenol ICC | ||
Number of Contacts 44 | ||
Gender Male | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.29mm | ||
Termination Method Solder | ||
Current Rating 2.5A | ||
Housing Material Thermoplastic | ||
Voltage Rating 250.0 V | ||
Length 53.04mm | ||
Width 16.2mm | ||
Depth 12.55mm | ||
Series 10090926 | ||
Contact Material Copper Alloy | ||
Dimensions 53.04 x 16.2 x 12.55mm | ||
Contact Plating Gold over Nickel | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +105°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
D-Sub Compact HD with Clinch Nuts
These FCI D-Subminiature High-Density connectors are suitable for applications requiring robust and reliable connectors such as Telecommunications, Data, Consumer, Industrial, Military, Instrumentation and Medical markets. The High-Density range gives Input - Output interconnects to meet all design requirements and addresses the increasing needs for high density packaging.
These HD D-Sub connectors have UNC 4-40 Clinch nuts with Board locks.
Note
For HD D-Sub connectors with screw locks see stock number 736-1510 typical.
FCI Compact High Density D-Subminiature Connectors
The FCI High Density D-Subminiature range provides high-density and high-speed interfaces to enable interconnect technologies for storage and memory, networking and complementary products for power distribution. These High Density D-Subminiature connectors enable full compliance to industry standards, such as Ethernet, SFF, Infiniband, USB, PCMCIA or HDMI.
