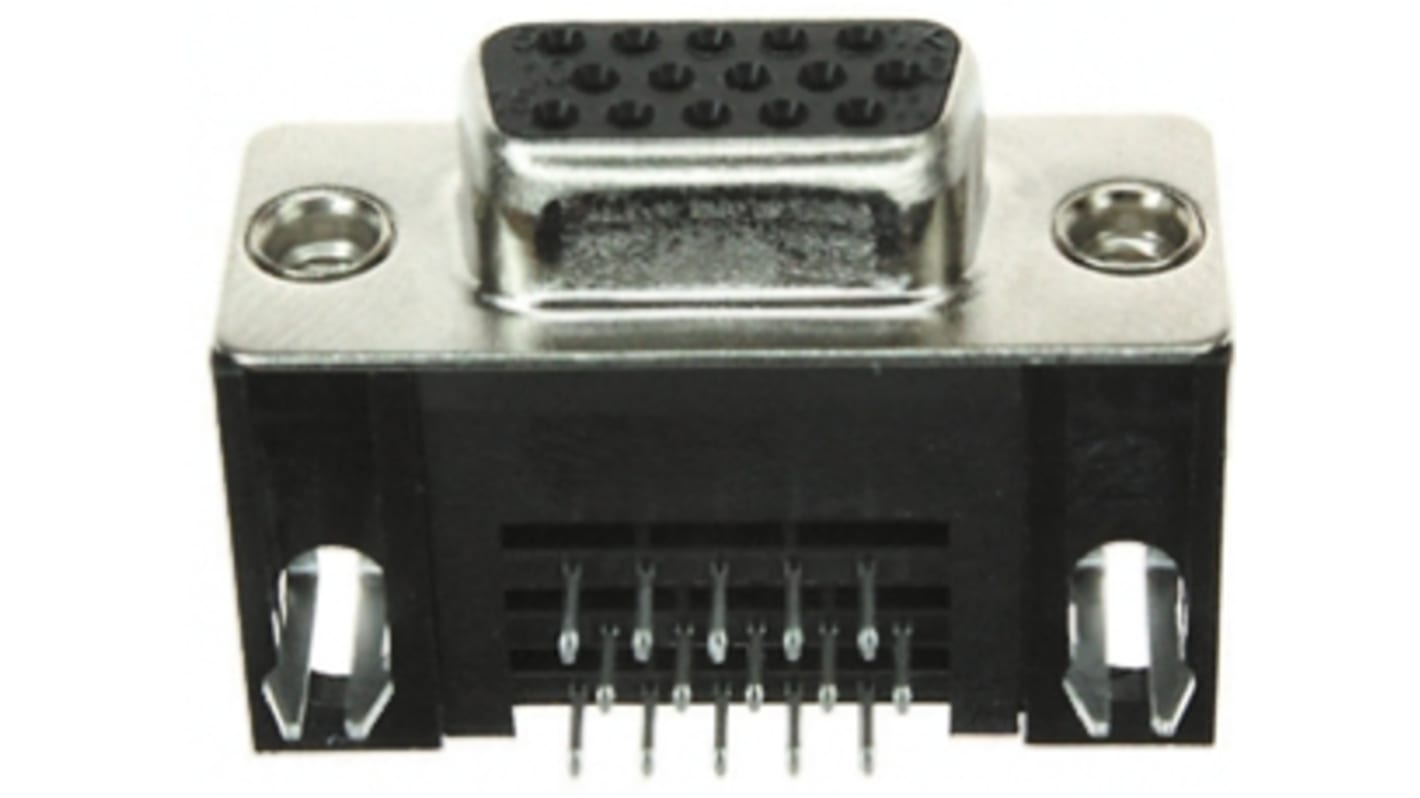

TE Connectivity Amplimite HD-22 15 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.29mm Pitch, with 4-40 UNC

View all D Sub Connectors
Discontinued
Packaging Options:
D-Sub-Backshells
D Sub Backshells
Don't forget D Sub Backshells!
Shop D Sub Backshells now
RS Stock No.:
718-3786
Mfr. Part No.:
1-1734530-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

15

Gender

Female

Body Orientation

Right Angle

Mounting Type

Through Hole

Pitch

2.29mm

Mounting Hardware

4-40 UNC Threaded Inserts, Boardlocks

Housing Material

Thermoplastic

Length

30.8mm

Width

22mm

Depth

12.5mm

Dimensions

30.8 x 22 x 12.5mm

Contact Plating

Gold

Series

Amplimite HD-22

Contact Material

Phosphor Bronze

Contact Size

1

COO (Country of Origin):
CN

AMPLIMITE D-Sub Connector, HD-22 Series, PCB Mounting


AMPLIMITE HD-22 PCB through hole mount d-sub connectors with nickel plated steel front shells. These AMPLIMITE HD-22 d-sub PCB connectors are straight or right angle PCB mounting and are available with a variety of mounting hardware and contact plating options and (please see table). The housings of these AMPLIMITE HD-22 d-sub connectors are made from 94V-0 rated black thermoplastic (apart from stock numbers 739-0789 (VESA Std) and 719-9116 which have blue inserts) with tin plated board locks, nickel plated screwlocks and threaded inserts.
