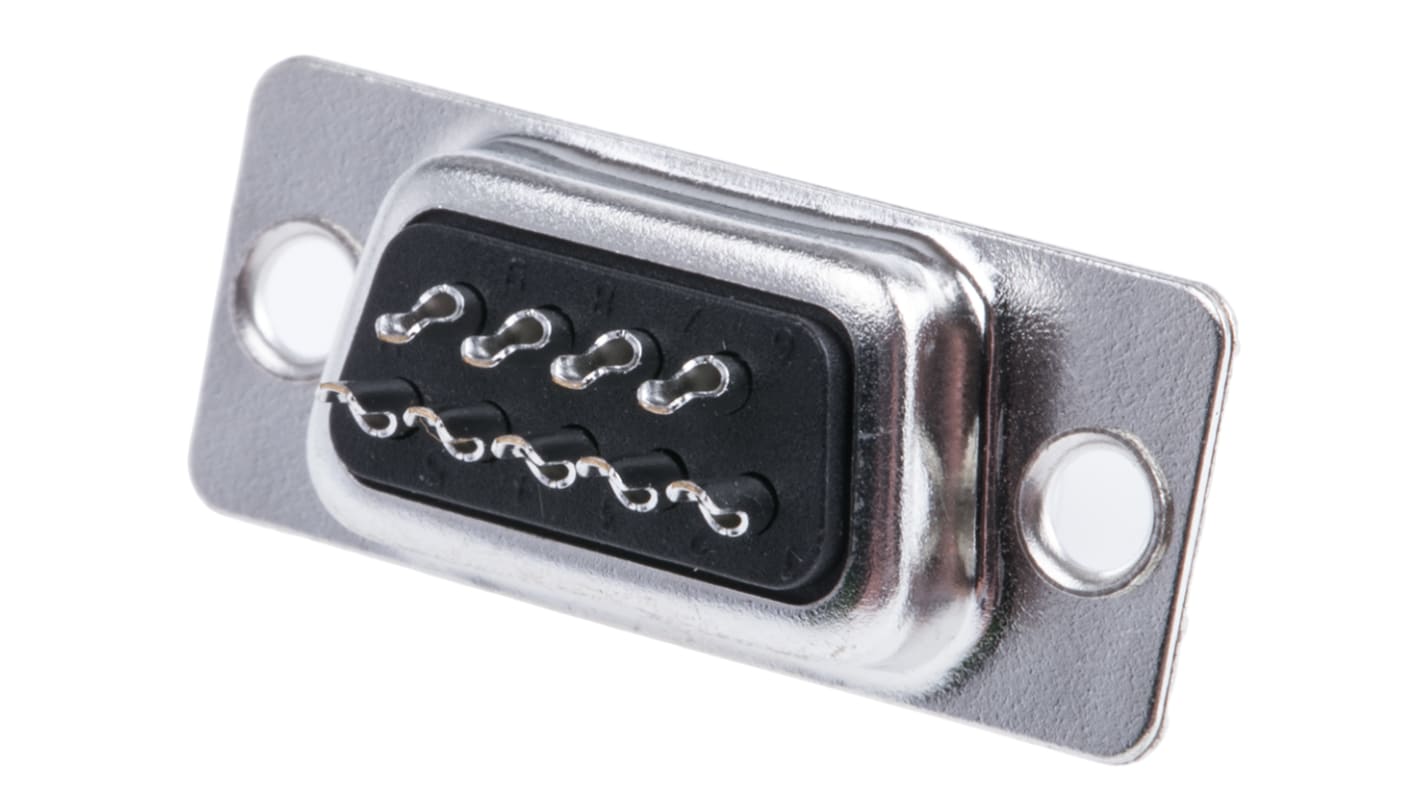

Amphenol Communications Solutions SD 9 Way Panel Mount D-sub Connector Socket
- RS Stock No.:
- 691-8777
- Distrelec Article No.:
- 144-16-054
- Mfr. Part No.:
- L77SDE09S
- Brand:
- Amphenol Communications Solutions
Bulk discount available
Subtotal (1 unit)*
£0.92
(exc. VAT)
£1.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2,386 unit(s) shipping from 27 October 2025
- Plus 715 unit(s) shipping from 27 October 2025
- Plus 1,594 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £0.92 |
| 25 - 49 | £0.56 |
| 50 - 99 | £0.47 |
| 100 - 199 | £0.42 |
| 200 + | £0.38 |
*price indicative
- RS Stock No.:
- 691-8777
- Distrelec Article No.:
- 144-16-054
- Mfr. Part No.:
- L77SDE09S
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Number of Contacts | 9 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| D Connector Type | Standard D-Sub | |
| D-Sub Shell Size | E | |
| Termination Method | Solder | |
| Current Rating | 5.0A | |
| Housing Material | Steel | |
| Length | 30.89mm | |
| Width | 12.55mm | |
| Depth | 15.65mm | |
| Contact Plating | Gold | |
| Dimensions | 30.89 x 12.55 x 15.65mm | |
| Contact Material | Bronze | |
| Series | SD | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55.0°C | |
Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
D Connector Type Standard D-Sub | ||
D-Sub Shell Size E | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Housing Material Steel | ||
Length 30.89mm | ||
Width 12.55mm | ||
Depth 15.65mm | ||
Contact Plating Gold | ||
Dimensions 30.89 x 12.55 x 15.65mm | ||
Contact Material Bronze | ||
Series SD | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55.0°C | ||
- COO (Country of Origin):
- CN
Amphenol D-Sub Socket Connectors with Solder Cup Terminals
D-sub socket connectors with solder cup terminals and flanges with 3.05mm mounting holes. These female d-sub receptacle connectors have a tin plated steel shell, glass-filled thermoplastic UL94V-0 insulator and gold flash plated socket contacts.
