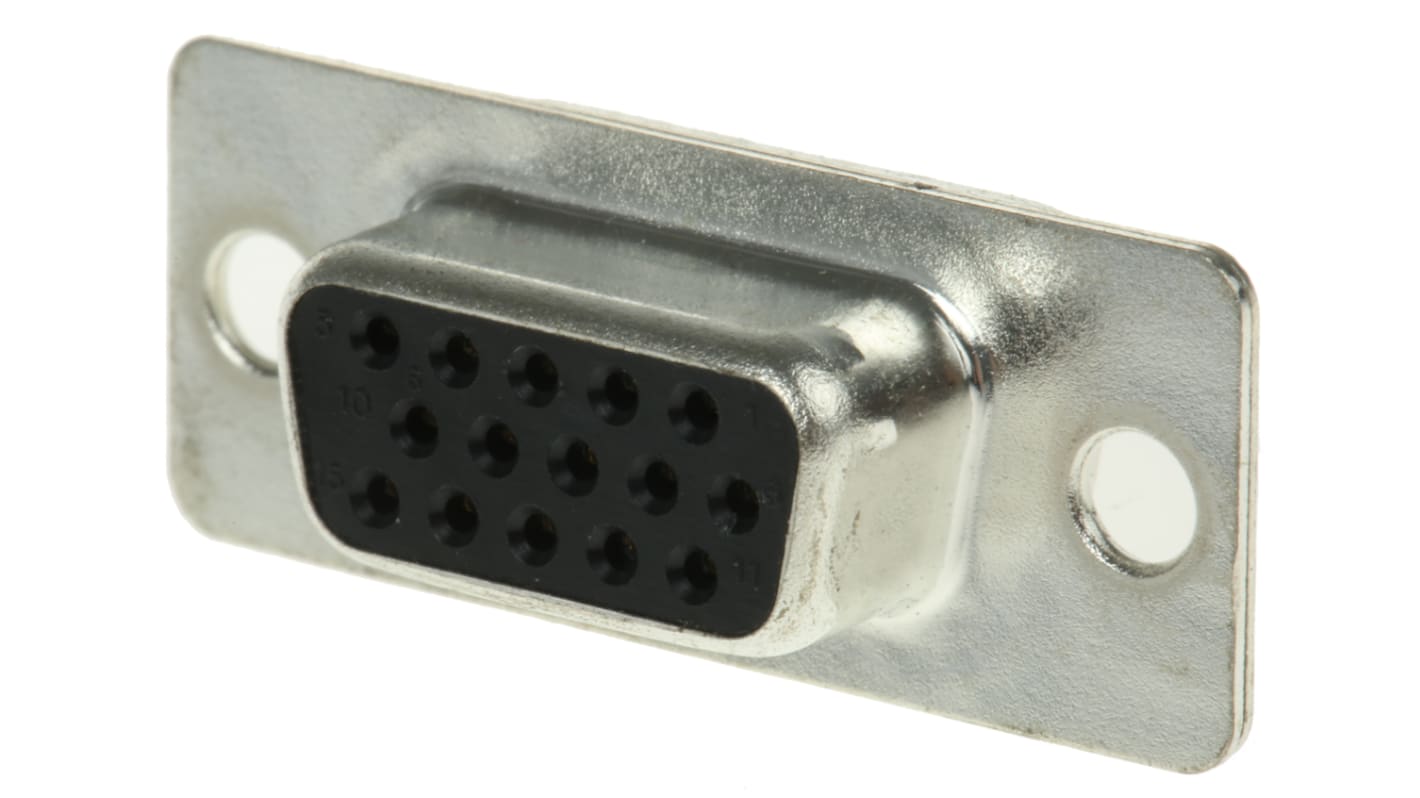

ASSMANN WSW A-HDF 15 Way Straight Through Hole D-Sub Connector Female
- RS Stock No.:
- 674-0969
- Mfr. Part No.:
- A-HDF 15 PP/Z
- Brand:
- ASSMANN WSW
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£0.88
(exc. VAT)
£1.06
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4 unit(s) shipping from 29 July 2026
- Plus 300 unit(s) shipping from 05 August 2026
- Plus 450 unit(s) shipping from 17 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £0.88 |
| 25 - 49 | £0.72 |
| 50 - 99 | £0.69 |
| 100 - 199 | £0.67 |
| 200 + | £0.62 |
*price indicative
- RS Stock No.:
- 674-0969
- Mfr. Part No.:
- A-HDF 15 PP/Z
- Brand:
- ASSMANN WSW
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ASSMANN WSW | |
| Number of Contacts | 15 | |
| Product Type | D-Sub Connector | |
| Current | 1A | |
| Orientation | Straight | |
| Mount Type | Through Hole | |
| Connector Gender | Female | |
| Connector Type D | D-Sub | |
| D-Sub Shell Size | DF-15 | |
| Housing Material | Polybutylene Terephthalate | |
| Voltage | 250.0V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Plating | Gold over Nickel | |
| Series | A-HDF | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand ASSMANN WSW | ||
Number of Contacts 15 | ||
Product Type D-Sub Connector | ||
Current 1A | ||
Orientation Straight | ||
Mount Type Through Hole | ||
Connector Gender Female | ||
Connector Type D D-Sub | ||
D-Sub Shell Size DF-15 | ||
Housing Material Polybutylene Terephthalate | ||
Voltage 250.0V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Plating Gold over Nickel | ||
Series A-HDF | ||
Contact Material Brass | ||
Straight High Density PCB Mount
Assmann HIgh Density
