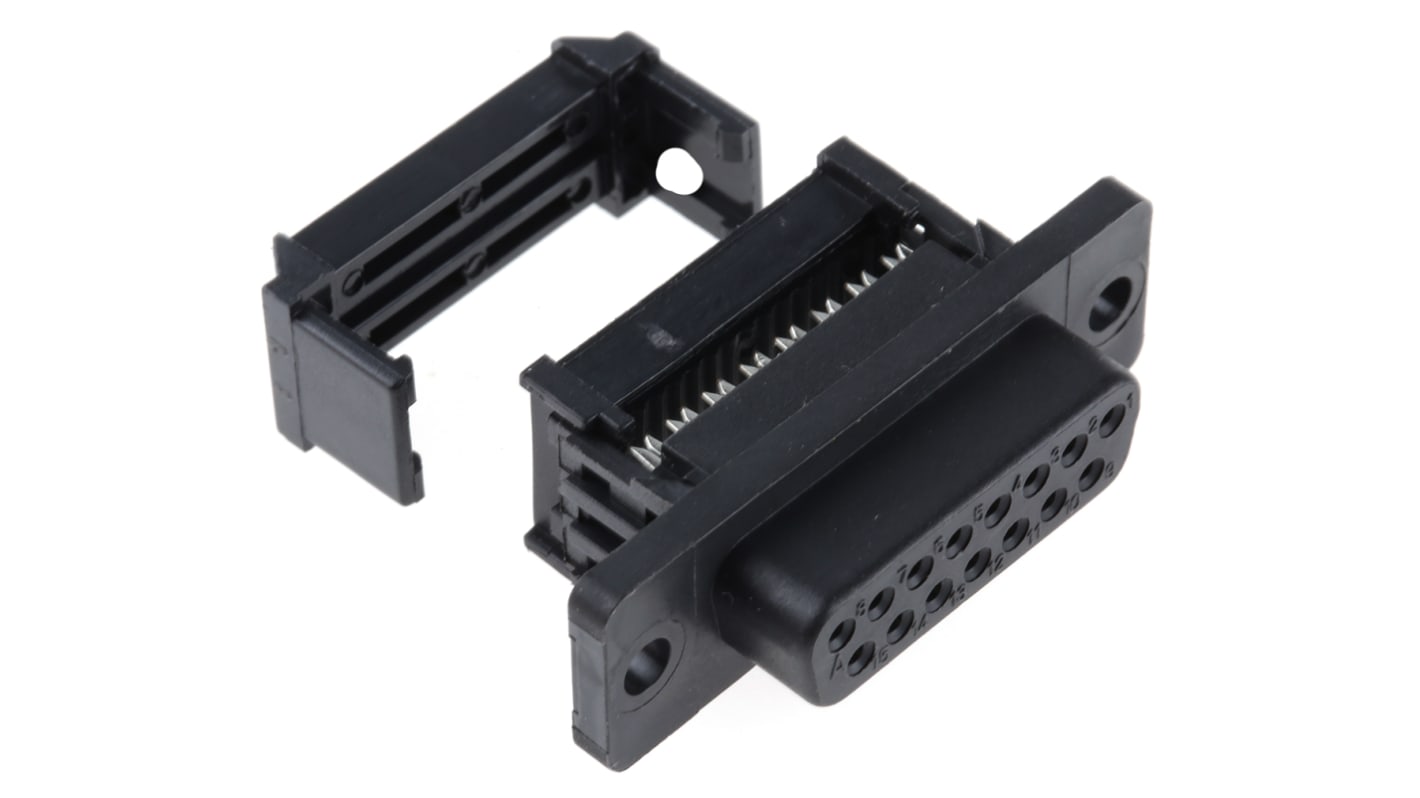

RS PRO 15 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch
- RS Stock No.:
- 642-4799
- Brand:
- RS PRO
523 In stock - FREE next working day delivery available
60 available from Europe for delivery within 1 working day(s).
Added
Price Each
£2.46
(exc. VAT)
£2.95
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £2.46 |
| 25 - 74 | £2.19 |
| 75 - 199 | £1.98 |
| 200 - 399 | £1.80 |
| 400 + | £1.76 |
- RS Stock No.:
- 642-4799
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Plastic Body
Plastic body plug and socket D connectors complete with strain relief
0.8μm gold plated contacts
0.8μm gold plated contacts
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.77mm |
| Termination Method | IDC |
| Current Rating | 3A |
| Housing Material | Thermoplastic |
| Voltage Rating | 250.0 V |
| Length | 39.2mm |
| Width | 12.5mm |
| Depth | 5.9mm |
| Dimensions | 39.2 x 12.5 x 5.9mm |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55.0°C |
