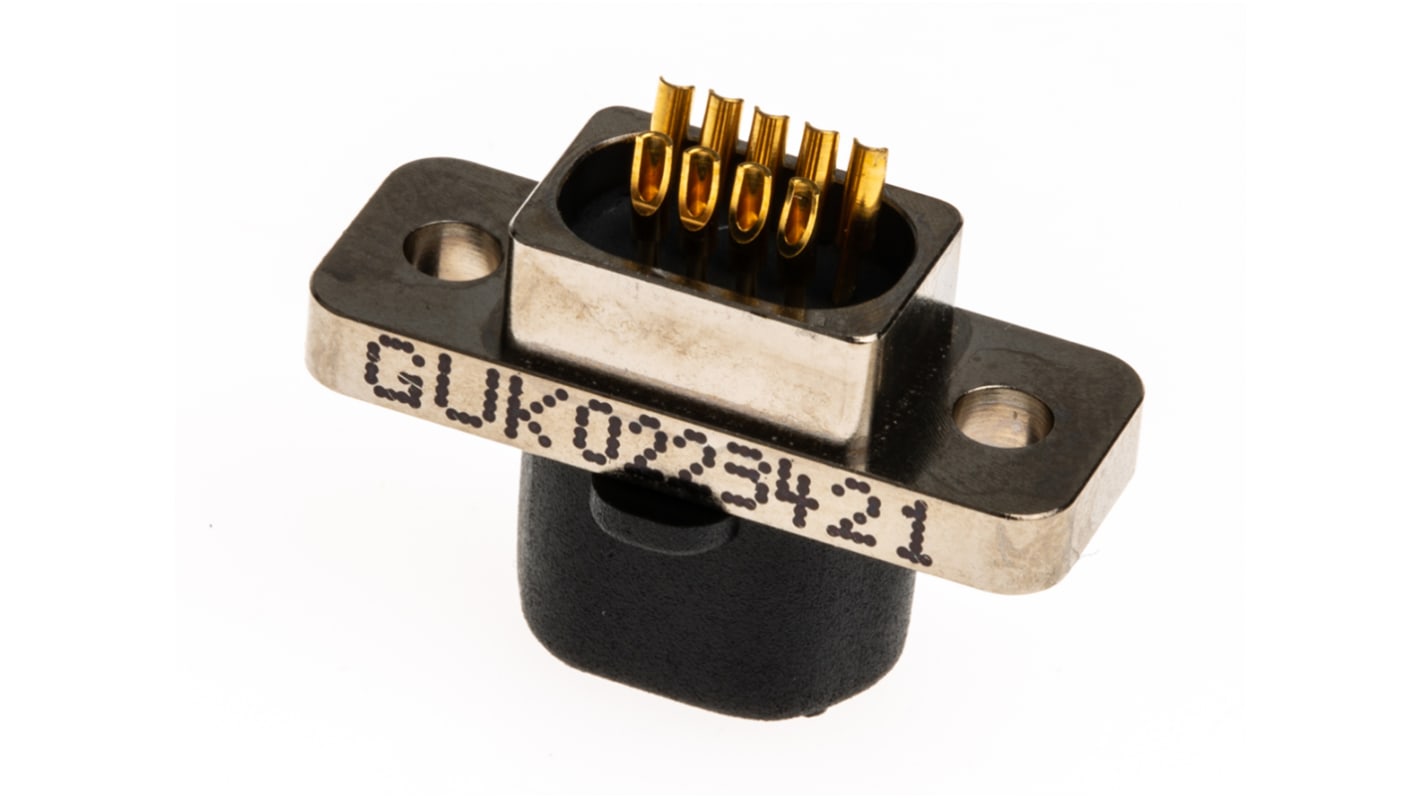

Glenair MWDM 9 Way Straight Panel Mount D-Sub Connector Male
- RS Stock No.:
- 612-6473
- Mfr. Part No.:
- MWDM2L-9PSB
- Brand:
- Glenair
Bulk discount available
Subtotal (1 unit)*
£111.04
(exc. VAT)
£133.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 17 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
- Plus 125 unit(s) shipping from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £111.04 |
| 25 - 74 | £99.92 |
| 75 - 199 | £91.05 |
| 200 - 399 | £83.28 |
| 400 + | £77.72 |
*price indicative
- RS Stock No.:
- 612-6473
- Mfr. Part No.:
- MWDM2L-9PSB
- Brand:
- Glenair
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Glenair | |
| Number of Contacts | 9 | |
| Product Type | D-Sub Connector | |
| Orientation | Straight | |
| Current | 3A | |
| Mount Type | Panel Mount | |
| Connector Gender | Male | |
| Connector Type D | Micro-D | |
| Housing Material | Aluminium | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Contact Material | Beryllium Copper Alloy | |
| Series | MWDM | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand Glenair | ||
Number of Contacts 9 | ||
Product Type D-Sub Connector | ||
Orientation Straight | ||
Current 3A | ||
Mount Type Panel Mount | ||
Connector Gender Male | ||
Connector Type D Micro-D | ||
Housing Material Aluminium | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Contact Gender Male | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Contact Material Beryllium Copper Alloy | ||
Series MWDM | ||
Contact Plating Gold over Nickel | ||
- COO (Country of Origin):
- GB
Manufacturer's Warranty
Metal Shell Unterminated
Solder cups will accommodate 26 AWG cable and smaller
Splayed solder cup rows to aid user assembly
Micro D 0.05inch Pitch
Designed for use in electronic systems in commercial and military aerospace, military land and sea and industrial/telecommunication applications, the Micro D connector provides exceptional mechanical and electrical integrity, whilst operating in extreme vibration and environmental conditions.
High Performance, Gold Plated Twist Pin Contact System
3 Amp Contact Rating
High Density .050” Contact Pitch
RoHS Compliant
High Performance Liquid Crystal Polymer moulded connector housing with trapezoidal polarisation.
Standards
Mil-PRF-83513,
BS9523-F0002
BS9523-F0002
