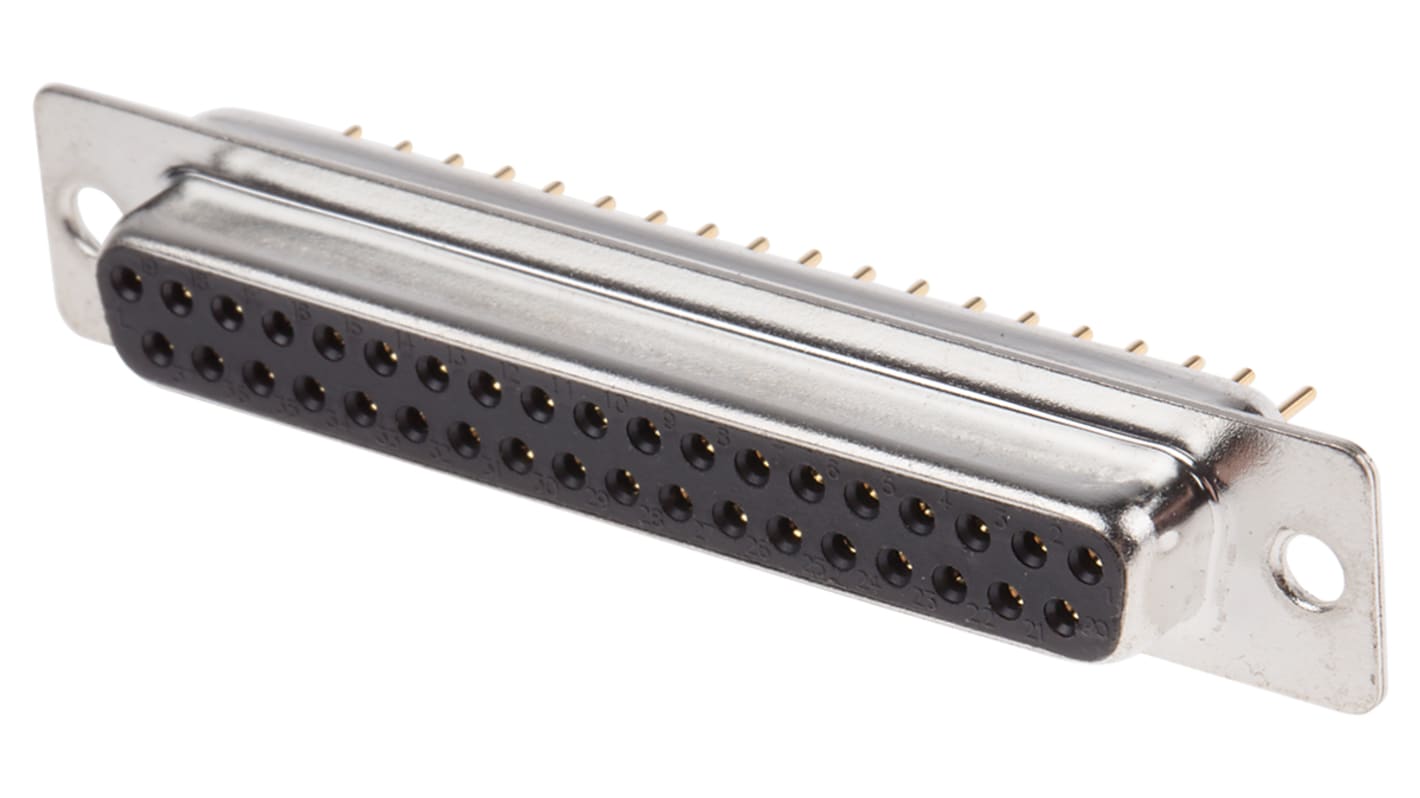

RS PRO 37 Way Through Hole D-sub Connector Socket, 2.77mm Pitch
- RS Stock No.:
- 528-3632
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
£41.02
(exc. VAT)
£49.225
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 260 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £8.204 | £41.02 |
| 125 - 370 | £7.376 | £36.88 |
| 375 - 995 | £6.564 | £32.82 |
| 1000 - 1995 | £5.728 | £28.64 |
| 2000 + | £5.334 | £26.67 |
*price indicative
- RS Stock No.:
- 528-3632
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 37 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.77mm | |
| Termination Method | Solder | |
| Current Rating | 7.5A | |
| Housing Material | Thermoplastic | |
| Voltage Rating | 250V | |
| Length | 69.32mm | |
| Width | 4.1mm | |
| Depth | 12.55mm | |
| Dimensions | 69.32 x 4.1 x 12.55mm | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 37 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.77mm | ||
Termination Method Solder | ||
Current Rating 7.5A | ||
Housing Material Thermoplastic | ||
Voltage Rating 250V | ||
Length 69.32mm | ||
Width 4.1mm | ||
Depth 12.55mm | ||
Dimensions 69.32 x 4.1 x 12.55mm | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- TW
Straight PCB Mounting Plug and Socket
Connectors with machined contacts
With dimpled plug shels for reliable grounding
With dimpled plug shels for reliable grounding
Note
The current rating for the PCB variants is 5A
Standards
HE502-MIL-C-24308
