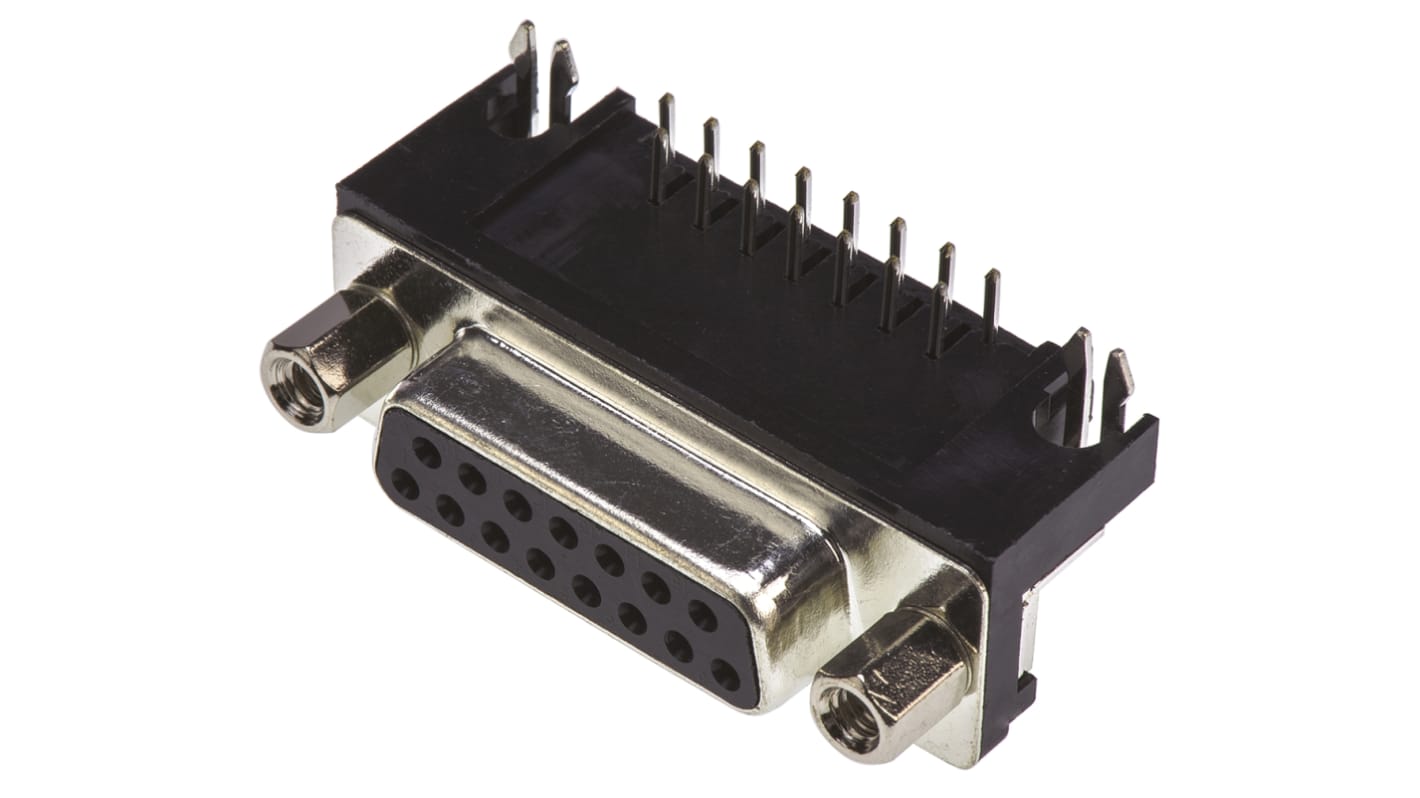

TE Connectivity AMPLIMITE HDP-20 15 Way Right Angle PCB D-sub Connector Socket, 2.77mm Pitch, with 4-40 UNC Female
- RS Stock No.:
- 495-9861P
- Mfr. Part No.:
- 3-1634585-2
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 495-9861P
- Mfr. Part No.:
- 3-1634585-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 15 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | PCB Mount | |
| Pitch | 2.77mm | |
| Termination Method | Through Hole | |
| Mounting Hardware | 4-40 UNC Female Screwlocks, Boardlocks | |
| Current Rating | 5A | |
| Housing Material | Thermoplastic | |
| Voltage Rating | 250 V dc | |
| Length | 39.3mm | |
| Width | 20.88mm | |
| Depth | 13.57mm | |
| Dimensions | 39.3 x 20.88 x 13.57mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold over Nickel | |
| Series | AMPLIMITE HDP-20 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Series Number | 1634585 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 15 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type PCB Mount | ||
Pitch 2.77mm | ||
Termination Method Through Hole | ||
Mounting Hardware 4-40 UNC Female Screwlocks, Boardlocks | ||
Current Rating 5A | ||
Housing Material Thermoplastic | ||
Voltage Rating 250 V dc | ||
Length 39.3mm | ||
Width 20.88mm | ||
Depth 13.57mm | ||
Dimensions 39.3 x 20.88 x 13.57mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Nickel | ||
Series AMPLIMITE HDP-20 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
Series Number 1634585 | ||
- COO (Country of Origin):
- CN
TDE Series Connectors For PCB 5A
Straight PCB mounting & DIN41652 variant 2 European standard PCB footprint connectors
Board locks included as standard
4-40 threaded inserts or female screwlocks
Available in 9, 15, 25 and 37 ways
Board locks included as standard
4-40 threaded inserts or female screwlocks
Available in 9, 15, 25 and 37 ways
Approvals
UL recognised component
Value-Added D Type Connectors
Solder bucket connection
Suitable for military, industrial or commercial applications and computer interfacing etc.
For IDC D types, see the 'Speedbloc' range
Suitable for military, industrial or commercial applications and computer interfacing etc.
For IDC D types, see the 'Speedbloc' range
