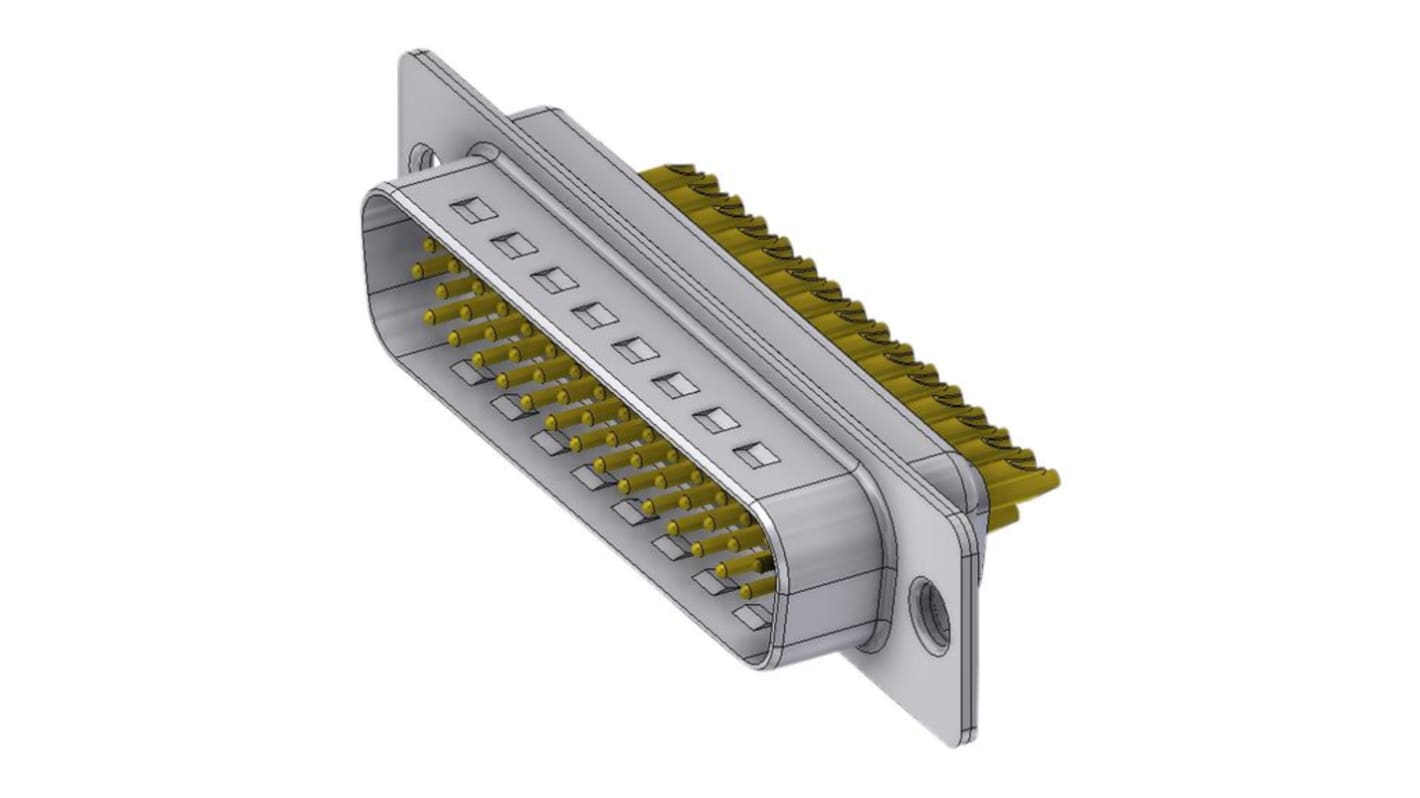

Deltron Connectors HD 26 Way Straight Cable D-Sub Connector Male
- RS Stock No.:
- 288-4512
- Distrelec Article No.:
- 301-59-873
- Mfr. Part No.:
- HD-D44PZ/2
- Brand:
- Deltron Connectors
Subtotal (1 unit)*
£11.57
(exc. VAT)
£13.88
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.57 |
*price indicative
- RS Stock No.:
- 288-4512
- Distrelec Article No.:
- 301-59-873
- Mfr. Part No.:
- HD-D44PZ/2
- Brand:
- Deltron Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron Connectors | |
| Number of Contacts | 26 | |
| Product Type | D-Sub Connector | |
| Current | 5A | |
| Orientation | Straight | |
| Mount Type | Cable | |
| Connector Gender | Male | |
| Connector Type D | High Density | |
| Housing Material | Steel | |
| Voltage | 60V | |
| Termination Type | Solder Cup | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Contact Material | Copper Alloy | |
| Series | HD | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Deltron Connectors | ||
Number of Contacts 26 | ||
Product Type D-Sub Connector | ||
Current 5A | ||
Orientation Straight | ||
Mount Type Cable | ||
Connector Gender Male | ||
Connector Type D High Density | ||
Housing Material Steel | ||
Voltage 60V | ||
Termination Type Solder Cup | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Contact Material Copper Alloy | ||
Series HD | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CH
The high-quality D-plug suitable for cable AWG 20. With thermoplastic UL 94-V-0 white insulator and machined copper alloy contacts, this product offers excellent performance and durability. It has a working voltage of 60V, a current rating of 5A, and a temperature range of -55 to +125 C. Ideal for various applications, this product is a reliable choice for your electronic projects.
Thermoplastic UL 94-V-0 white insulator for safety and reliability
Machined copper alloy contacts for superior conductivity
Working voltage of 60V for versatile use
Current rating of 5A for efficient power delivery
Steel tin plated shell for added durability
Temperature range of -55 to +125 C for extreme conditions
