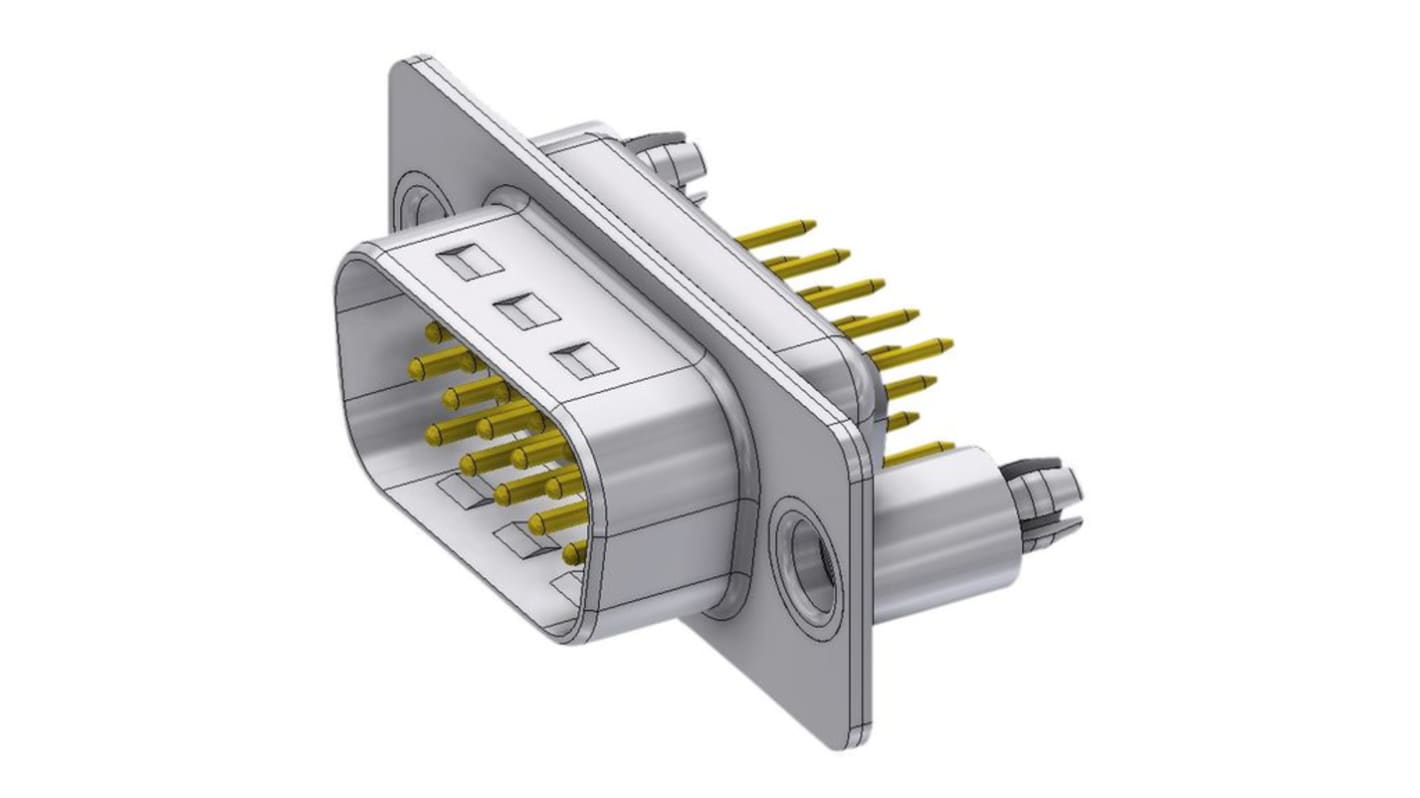

Deltron Connectors HD 15 Way Straight 2.54 mm Pitch PCB D-Sub Connector, with Screw Lock Male
- RS Stock No.:
- 285-8200
- Distrelec Article No.:
- 144-16-980
- Mfr. Part No.:
- HD-D15PY/2M86UN
- Brand:
- Deltron Connectors
Subtotal (1 unit)*
£5.38
(exc. VAT)
£6.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 26 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 27 May 2026
- Plus 5 unit(s) shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.38 |
*price indicative
- RS Stock No.:
- 285-8200
- Distrelec Article No.:
- 144-16-980
- Mfr. Part No.:
- HD-D15PY/2M86UN
- Brand:
- Deltron Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron Connectors | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 15 | |
| Orientation | Straight | |
| Current | 5A | |
| Mount Type | PCB | |
| Connector Gender | Male | |
| Connector Type D | High Density | |
| Mounting Hardware | Screw Lock | |
| Housing Material | Steel | |
| Voltage | 60V | |
| Termination Type | Radial Lead | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Contact Material | Copper Alloy | |
| Series | HD | |
| Contact Plating | Gold | |
| Pitch | 2.54mm | |
| Select all | ||
|---|---|---|
Brand Deltron Connectors | ||
Product Type D-Sub Connector | ||
Number of Contacts 15 | ||
Orientation Straight | ||
Current 5A | ||
Mount Type PCB | ||
Connector Gender Male | ||
Connector Type D High Density | ||
Mounting Hardware Screw Lock | ||
Housing Material Steel | ||
Voltage 60V | ||
Termination Type Radial Lead | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Contact Material Copper Alloy | ||
Series HD | ||
Contact Plating Gold | ||
Pitch 2.54mm | ||
- COO (Country of Origin):
- CH
The D-sub connector is a RoHS compliant product suitable for Wave Solder Process. With high-quality materials and precise dimensions, this connector ensures reliable performance in various applications.
Insulator made of Thermoplastic UL 94-V-0 white for durability
Working voltage of 60V for compatibility with different systems
Contact made of Machined or Copper alloy for efficient current transmission
Quality class 2 contact finish for improved conductivity
Shell made of steel tin plated for robustness
Temperature range from -55 to +125 C for versatility
General tolerances per Deltron standard for accurate measurements
