Deltron Connectors DTS 37 Way Straight Solder D-Sub Connector Female 2.54 mm Pitch
- RS Stock No.:
- 285-7404
- Distrelec Article No.:
- 144-17-211
- Mfr. Part No.:
- DTS8W8S
- Brand:
- Deltron Connectors
Subtotal (1 unit)*
£2.55
(exc. VAT)
£3.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.55 |
*price indicative
- RS Stock No.:
- 285-7404
- Distrelec Article No.:
- 144-17-211
- Mfr. Part No.:
- DTS8W8S
- Brand:
- Deltron Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron Connectors | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 37 | |
| Orientation | Straight | |
| Current | 5A | |
| Mount Type | Solder | |
| Connector Gender | Female | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Voltage | 125 V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder Lug | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Copper Nickel | |
| Series | DTS | |
| Contact Plating | Gold | |
| Pitch | 2.54mm | |
| Select all | ||
|---|---|---|
Brand Deltron Connectors | ||
Product Type D-Sub Connector | ||
Number of Contacts 37 | ||
Orientation Straight | ||
Current 5A | ||
Mount Type Solder | ||
Connector Gender Female | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Voltage 125 V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder Lug | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Copper Nickel | ||
Series DTS | ||
Contact Plating Gold | ||
Pitch 2.54mm | ||
- COO (Country of Origin):
- CH

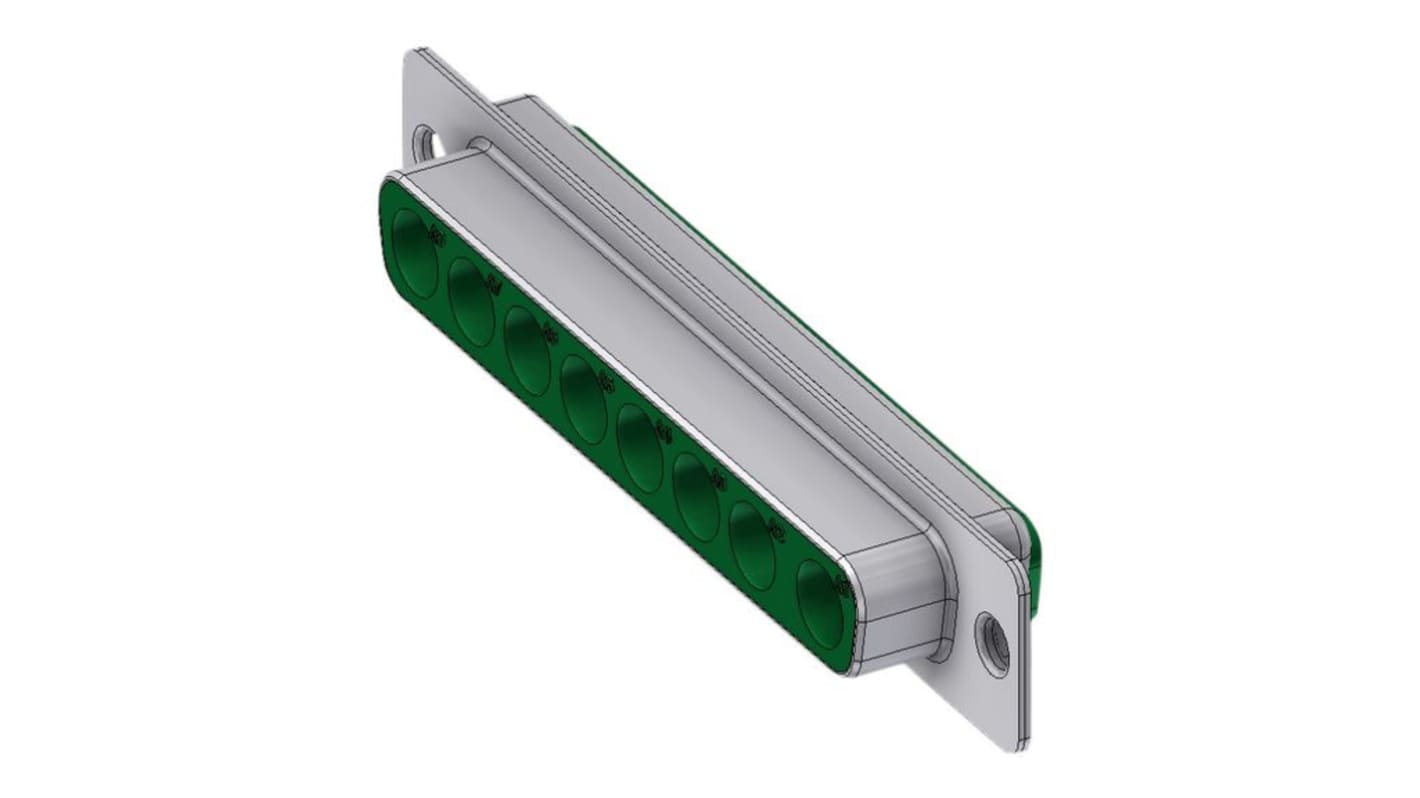

The D-Sub hybrid-socket is a RoHS compliant component with a green thermoplastic UL 94-V-0 insulation and steel tin-plated shell, suitable for a temperature range of -55 to +125°C. It has general tolerances of 0.1mm, 0.2mm, and 0.3mm for different size ranges, making it a versatile and reliable choice for various applications.
Green thermoplastic UL 94-V-0 insulation and steel tin-plated shell for high-quality performance
Temperature range of -55 to +125°C ensures durability in extreme conditions
General tolerances of 0.1mm, 0.2mm, and 0.3mm for different size ranges for precise measurements
Insulation resistance of >5G for efficient electrical insulation
